HMD made some software and hardware changes to the international version of Nokia 6


Although HMD promised to release all its Nokia-branded smartphones globally by the end of June, it looks like many markets won't be getting two out of the three Nokia handsets until July.

The Nokia 6 is the first Android smartphone launched by HMD, but the device was a China exclusive for many months. The international variant is supposed to hit European markets very soon, while customers in the United States will get the Nokia 6 in early July.

However, there are differences between the Chinese and global variants of the Nokia 6, and one of them is the amount of RAM. While the Nokia 6 launch in China includes 4GB RAM, HMD announced in May that the global model would pack just 3GB RAM.

Well, it looks like the Finnish company made some software and hardware changes to the international version of Nokia 6 before release, and one of these changes concerns the amount of memory.

HMD sent a letter to FCC (Federal Communications Commission), which lists all the changes it made to the Nokia 6 after the phone has been approved.

On the software side, HMD confirmed it has fixed the RF Card configuration error and addressed a problem with the FP driver which would not load when the device enters power off charging.

When it comes to hardware, the list of changes is much bigger, but the most important seems to be the addition of 4GB RAM and 64GB internal memory.

  • Add 2nd source battery, HE335
  • Add 4GB RAM / 64G ROM
  • Change L6219 & R6210 to NC to improve WiFi mask performance
  • Change L6220 to NC
  • Change R711, R707, R2207 to Murata Bead board to optimize camera de-sense
  • Change FPM to low voltage, add one diode + Low voltage FW to reduce FPM noise
  • Speaker Box SUS material change from 304 to 430 to resolve static magnetic issue. Change coil material from FH5 to FH7 to improve coil heat resistant.


Lastly, the list contains some mechanical changes made to the Nokia 6 before release, which you can find below.

  • Rear cover, Increase the thickness of Rib to improve the Main Cam deviation
  • Rear cover, Increase the chamfer to fit the change of battery tape
  • Rear cover, Decrease the thickness to increase the gap between Battery and Rear Cover
  • Camera Ring, modify the Rib of Camera Ring to avoid the interference
  • A Cover, increase the mark of PLE
  • Change front camera sponge to conductive sponge, to resolve defense issue
  • Power Key: modify the key dimension to improve key feeling
  • Rear cover, increase thickness of NFC pad
  • Rear cover, increase thickness to resolve the front cam deviation issue
  • Rear cover, modify the gap between rear cover & A cover to resolve assembly interference issue

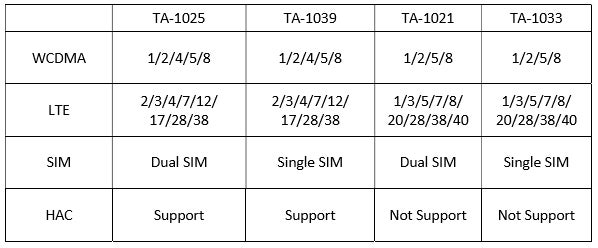

HMD will launch four different Nokia 6 models in the coming weeks, which go by the following model numbers: TA-1025, TA-1039, TA-1021 and TA-1033. These variants support different LTE and WCDMA bands, as well as SIM slots and HAC, which are detailed in the table below.



source: FCC via NokiaCamp

Related phones

6
  • Display 5.5" 1080 x 1920 pixels
  • Camera 16 MP / 8 MP front
  • Processor Qualcomm Snapdragon 430, Octa-core, 1400 MHz
  • Storage 32 GB + microSDXC
  • Battery 3000 mAh(18h 3G talk time)
