Last week we informed you that there was a Jelly Bean leak for the Motorola DROID RAZR M. Installing the zip file is pretty straight forward (file and instructions found here), but at that time there was no way to revert back to stock Ice Cream Sandwich if you wanted to - until now.

Keep in mind when doing any of this flashing, that you will lose all your apps, data, and settings on the phone, so you'll have to reinstall those.

If you are running the Jelly Bean leak (version 98.11.35) and want to revert back to stock Ice Cream Sandwich (version 77.111.10), you'll need to do the following......

  • First off is to make sure you have the Motorola USB drivers installed on your PC (download here). Then the current version of RSD Lite 6.1.4 installed (from here). And lastly the full fastboot Ice Cream Sandwich recovery file 648MB (from here).

  • After that, you'll run the RSD Lite program.

  • Make sure the phone is off. Press-and-hold the Volume Down and Volume UP and the Power button at the same time until there is a menu shown with white text. Quickly use the Volume Down to highlight AP Fastboot and then press the Volume UP to select it. You have to do this fast, or the phone will restart.


  • Once your phone is in the Fastboot menu, connect the phone to the PC.

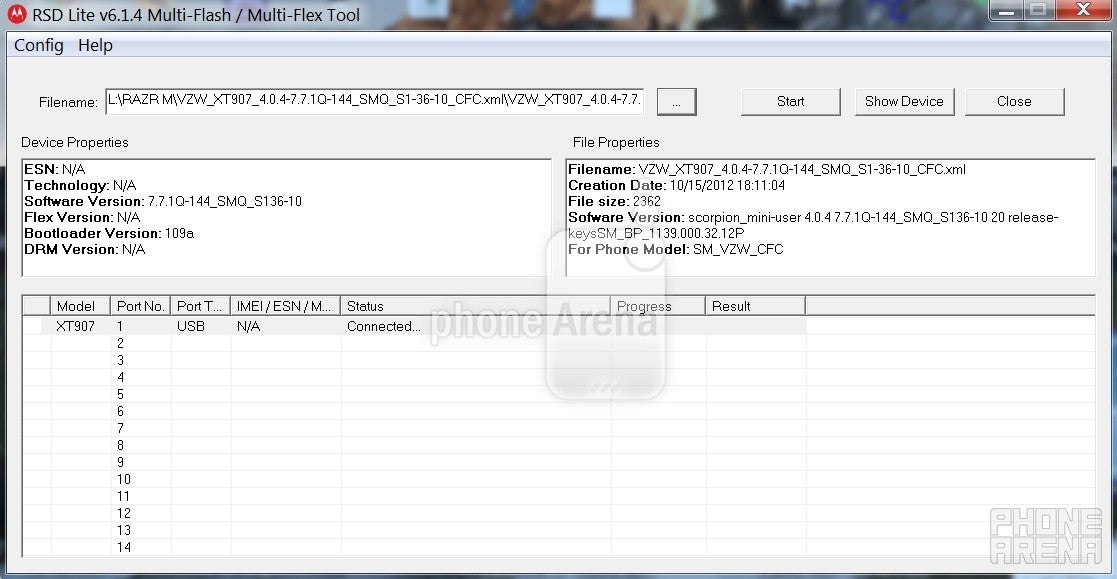

  • Select the phone XT907 listed in the first line in RSD Lite, and its information will then show in the Device Properties screen.

  • Click on the "..." next to the Filename and select the ICS file you downloaded: VZW_XT907_4.0.4-7.7.1Q-144_SMQ_S1-36-10_CFC.xml.zip

  • Then have it decompress the zip file and start the flashing process. Once it has completed, your Motorola DROID RAZR M has been fully restored back to original ICS software that came with the phone.

Thanks to everyone for the files and help (you know who you are)!

How to restore your Motorola DROID RAZR M back to stock ICS from the JB leak

Related phones

DROID RAZR M
  • Display 4.3" 540 x 960 pixels
  • Camera 8 MP / 0.3 MP VGA front
  • Processor Qualcomm Snapdragon S4 Plus, Dual-core, 1500 MHz
  • Battery 2000 mAh(10.5h talk time)

FEATURED VIDEO

23 Comments

1. rasinhussy

Posts: 89; Member since: Dec 28, 2008

Very nice! JB is working great for me so I'm not going back.

2. KingKurogiii

Posts: 5713; Member since: Oct 23, 2011

there's no way i'm going back but it's good to know it's fastbootable. you guys know the OTA is rumored to come out on the 18th? we might very well already have the OTA. it works perfectly.

3. dubbsix

Posts: 13; Member since: Oct 19, 2012

Beware, I have not been able to get this method to work for me on my Windows 7 x64 laptop. I get a failed to get the phone to boot to fastboot mode...even though it does boot to fastboot mode.

4. KingKurogiii

Posts: 5713; Member since: Oct 23, 2011

are you using the same machine that you used to root it?

5. dubbsix

Posts: 13; Member since: Oct 19, 2012

Well to install the jb leak, I didnt have to root my phone. But the process identified above does not work if you are on Windows 7 x64 PC.

6. KingKurogiii

Posts: 5713; Member since: Oct 23, 2011

oh, sorry, i got the articles mixed up. xD well i have a x64 W7 Laptop that i use for everything and i've never had a problem fastbooting with RSD Lite.

7. dubbsix

Posts: 13; Member since: Oct 19, 2012

Yo King.. could have been my crazy laptop, or just the developer edition giving me crap. For those that do experience an issue with applying the flash, here is what i did to get mine back to ICS. Reference this ->http://forum.xda-developers.com/showthread.php?t=1934396&page=9 1. download the fastboot.zip 2. copy fastboot, the system image file (ext4) and the boot image file (boot.img) to a directory 3. Flash the system file: fasboot.exe flash system [system image file] 4. flash boot image: fastboot.exe flash boot [boot.img] ** I did have to manually go to recovery and wipe all data before the phone would boot all the way... so you may want to do that step BEFORE flashing. Hope it helps someone :p

8. amw2004

Posts: 1; Member since: Nov 13, 2012

help me cant get back to the ics stock

9. spence144db

Posts: 1; Member since: Nov 19, 2012

dubbsix: Are you saying to make two separate flashes?? one with just the system image file and the other with just the boot image file?

10. dubbsix

Posts: 13; Member since: Oct 19, 2012

Spence.. Yes you have to flash the system file and the boot file. Follow the link.

11. abbyyinjg

Posts: 7; Member since: Nov 29, 2012

newbie alert** i am having trouble getting this to work. i installed the leaked version, now i want to flash back to ICS so i can get the OTA version. I installed the driver and the RDS file which came up fine. When i open RDS when my phone is in flashboot mode, i cant see my phone in RSD. that is issue #1, my second (probably silly) question.. do i install the ice cream sandwich file on my SD card or my computer? any help would be appreciated. Thanks :)

12. dubbsix

Posts: 13; Member since: Oct 19, 2012

abby have you followed the instructions above? If you issue a adb devices command on your computer does it show your device serial number?

13. abbyyinjg

Posts: 7; Member since: Nov 29, 2012

yes it does. odd that i even understand what that is, but i chated with a motorola tech and i had to look that up. so does the ICS file go on phone or computer?

14. abbyyinjg

Posts: 7; Member since: Nov 29, 2012

but still, the phone will not appear on RSD lite.

15. abbyyinjg

Posts: 7; Member since: Nov 29, 2012

is there any other way to force phone to accept the OTA jelly bean? i am having some (minor) buggy issues with the leaked version..

16. dubbsix

Posts: 13; Member since: Oct 19, 2012

abby, please take a moment and read my post (#7) I did not get back to ICS by using RDS. I flashed the the 2 files directly using fastboot.

18. abbyyinjg

Posts: 7; Member since: Nov 29, 2012

thoughts on my last comment dubbsix? i am ready to give this a shot. any final advice would be much appreciated.

17. abbyyinjg

Posts: 7; Member since: Nov 29, 2012

OK. Thanks much. I am a total newbie when it comes to this. I don't want to brick my phone. I think I follow.. but imagine you were explaining this to your grandma. I am not to totall y clear about difference between flash and flashboot. Also the part about wiping memory? I have the ext4 and the boot.IMG files. So I put just those two on my SD card (and I don't need the other files from the fast boot.zip,correct?). Then what?

19. pyro5653

Posts: 2; Member since: Mar 21, 2013

ics link is not working it is not taking me to the rom file can some one repost the link

20. pyro5653

Posts: 2; Member since: Mar 21, 2013

okay i got stuck at the "failed flashing process. 6/18 flash "cdt.bin"" now my razr starts in ap fastboot and says device is locked. in other words it boots into ap fastboot. I can still access my main boot menu with holding down the volumes button and pressing the lock button i tried recovery but it gets to the droid with "!" and it does not access recovery menu while holding down the volume buttons. Right now my phone is bricked and use less i can still try new roms but i need one that works. Please help

21. kath1125

Posts: 1; Member since: May 13, 2013

Sadly the RSD Lite 6.1.4 and ICS recovery links are not working. :( I was so excited for a minute. I want jellybean off of my phone so badly.

22. djsolnok

Posts: 1; Member since: Nov 14, 2013

The link to the ICS recovery file is broken. Does anyone know where else to find this??!!

23. toobagas

Posts: 1; Member since: Jan 03, 2014

download from this address --> goo.gl/hfeUKm
