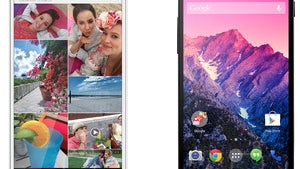

New Moto G vs Nexus 5 vs Galaxy S5 specs and size comparison
With the new Moto G, Motorola puts it in direct competition against the affordable Nexus 5, which used to be the price-to-value king at launch. Both now sport 5" displays, stock Android with guaranteed upgrades, 8 MP cameras, and low price tags for what they offer. We are also throwing in a veritable flagship with a screen about that size, for kicks and giggles, despite that the S5 costs twice or thrice as much as the Moto G or Nexus 5 without subsidies.

The only gripe we have with the Moto G against the Nexus 5 is the fact that it is quite a bit taller, whereas Google's handset is pretty compact for its screen size, with a nice soft touch rubbery grip all around it. It is also thinner and lighter than the Moto G, but Motorola's phone enlargement has been thoroughly warranted by the addition of two front stereo speakers, HTC and Sony style. This is not something we see on entry level smartphones, and a very welcome upgrade.

The Moto G makes do with a lower HD screen resolution, against the 1080p panel of the Nexus 5, but its pixel density is enough for most every task you would do on a smartphone, so unless you are a screen purists, you will be hard-pressed to wish more from Moto's screen for the price. Granted, the Nexus 5 also sports a much more powerful Snapdragon 800 processor and more RAM than the Moto G, plus it records 1080p video, but if you won't be doing much 3D gaming on your handset, and don't consider HD video footage an insult, Motorola's phone will win your heart with the fact that it now sports expandable storage, whereas with the Nexus 5 you are stuck with your version's amount of internal memory. Last, but not least, the Nexus 5 goes for $349.99 for the basic 16-gigs version, whereas a 16 GB Moto G will run you just $199.99 - a very small price to pay for such a handset indeed.

Motorola Moto G (2014)
Dimensions

5.57 x 2.78 x 0.43 inches

141.5 x 70.7 x 11 mm

Weight

5.26 oz (149 g)

Google Nexus 5
Dimensions

5.43 x 2.72 x 0.34 inches

137.84 x 69.17 x 8.59 mm

Weight

4.59 oz (130 g)

Samsung Galaxy S5
Dimensions

5.59 x 2.85 x 0.32 inches

142 x 72.5 x 8.1 mm

Weight

5.11 oz (145 g)

HTC One (M8)
Dimensions

5.76 x 2.78 x 0.37 inches

146.36 x 70.6 x 9.35 mm

Weight

5.64 oz (160 g)

Motorola Moto G (2014)
Dimensions

5.57 x 2.78 x 0.43 inches

141.5 x 70.7 x 11 mm

Weight

5.26 oz (149 g)

Google Nexus 5
Dimensions

5.43 x 2.72 x 0.34 inches

137.84 x 69.17 x 8.59 mm

Weight

4.59 oz (130 g)

Samsung Galaxy S5
Dimensions

5.59 x 2.85 x 0.32 inches

142 x 72.5 x 8.1 mm

Weight

5.11 oz (145 g)

HTC One (M8)
Dimensions

5.76 x 2.78 x 0.37 inches

146.36 x 70.6 x 9.35 mm

Weight

5.64 oz (160 g)

Compare these and other phones using our Size Comparison tool.


Motorola Moto G (2014) Google Nexus 5 Samsung Galaxy S5

Design

Dimensions
5.57 x 2.78 x 0.43 inches
141.5 x 70.7 x 11 mm
5.43 x 2.72 x 0.34 inches
137.84 x 69.17 x 8.59 mm
5.59 x 2.85 x 0.32 inches
142 x 72.5 x 8.1 mm
Weight
5.26 oz (149.0 g) 4.59 oz (130.0 g) 5.11 oz (145.0 g)
Materials
Back: Plastic
Resistance
Splash Water, Dust; IP67
Biometrics
Fingerprint (swipe)
Features
Touch sensitive control keys, Interchangeable covers, Notification light
Keys
Right: Volume control, Lock/Unlock key Left: Volume control; Right: Lock/Unlock key Left: Volume control; Right: Lock/Unlock key
Colors
Black, White Black, Red, White Black, Gold, Blue, White

Display

Size
5.0-inch 5.0-inch 5.1-inch
Resolution
1280x720px, 294 PPI 1920x1080px, 445 PPI 1920x1080px, 432 PPI
Technology
IPS LCD IPS LCD Super AMOLED
Screen-to-body
68.99 % 70.89 % 69.76 %
Colors
16 777 216 16 777 216 16 777 216
Features
Scratch-resistant glass (Corning Gorilla Glass 3), Ambient light sensor, Proximity sensor Scratch-resistant glass (Corning Gorilla Glass 3), Ambient light sensor, Proximity sensor Scratch-resistant glass (Corning Gorilla Glass 3), Ambient light sensor, Proximity sensor

Hardware

System chip
Qualcomm Snapdragon 400 Qualcomm Snapdragon 800 MSM8974 Qualcomm Snapdragon 801 MSM8974-AC (28 nm)
Processor
Quad-core
1200 MHz
Quad-core
2260 MHz
Krait 400
Quad-core
2500 MHz
Krait 400
GPU
Adreno 305 Adreno 330 Adreno 330
RAM
1GB 2GB (LPDDR3) 2GB (LPDDR3)
Internal storage
8GB 32GB 32GB
Storage expansion
microSDHC up to 32 GB microSDXC up to 128 GB
OS
Android (5.0 Lollipop, 4.4.4) Android (6.0 Marshmallow, 5.1 Lollipop, 5.0 Lollipop, 4.4.4, 4.4.2, 4.4) Android (6.0 Marshmallow, 5.1 Lollipop, 5.0 Lollipop, 4.4.4, 4.4.2), Samsung TouchWiz UI

Battery

Capacity
2070 mAh 2300 mAh 2800 mAh
Type
Li - Polymer Li - Ion
Charging
Qi wireless charging

Camera

Rear
Single camera Single camera Single camera
Main camera
8 MP (Autofocus)
Aperture size: F2.0
8 MP (OIS, Autofocus, BSI sensor)
Aperture size: F2.4
Focal length: 30.4 mm
Sensor size: 1/3.2"
16 MP (BSI sensor, PDAF)
Aperture size: F2.2
Focal length: 31 mm
Sensor size: 1/2.6"
Pixel size: 1.12 μm
Flash
LED LED LED
Video recording
1280x720 (HD) (30 fps) 1920x1080 (Full HD) (30 fps)
OIS, Video light
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps)
HDR, Continuous autofocus, EIS, Video calling, Video sharing
Front
2 MP, Video capture: 1280x720 (HD) 1.3 MP, Video capture: 1280x720 (HD) 2.1 MP, Video capture: 1920x1080 (Full HD)

Connectivity & Features

Bluetooth
4.0 4.0 4.0
WLAN
Yes 802.11 a,b,g,n,ac,dual-band
Hotspot, Wi-Fi Direct
802.11 a,b,g,n,ac,dual-band
Multiple antennas, MIMO, Hotspot, Wi-Fi Direct
USB
microUSB, USB 2.0 microUSB, USB 2.0 microUSB, USB 3.0
HDMI
Yes
Location
GPS, A-GPS, Glonass GPS, A-GPS, Glonass GPS, A-GPS, Glonass
Sensors
Accelerometer, Gyroscope, Compass Accelerometer, Gyroscope, Compass, Barometer, Step detector, Step counter Accelerometer, Gyroscope, Pedometer, Compass, Hall (for flip covers), Gesture, Barometer, Step detector, Step counter
Other
Tethering, Computer sync, OTA sync NFC, ANT+, Tethering, Computer sync, OTA sync NFC, ANT+, Infrared, Tethering, Computer sync, OTA sync

Multimedia

Headphones
3.5mm jack 3.5mm jack 3.5mm jack
Speakers
Earpiece, Multiple speakers Earpiece, Loudspeaker Earpiece, Loudspeaker
Features
Album art cover, Background playback Album art cover, Background playback Album art cover, Background playback
Screen mirroring
Wireless screen share DLNA,Wireless screen share,SlimPort,TV-out MHL
Radio
FM
Additional microphone(s)
Noise cancellation, Video recording Noise cancellation, Video recording

Cellular

4G (FDD)
Bands 1(2100), 3(1800), 5(850), 7(2600), 8(900), 20(800 DD) Bands 1(2100), 2(1900), 3(1800), 5(850), 7(2600), 8(900), 20(800 DD)
3G
Bands 5(850), 8(900), 2(1900), 1(2100) Bands 6(800), 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100) Bands 5(850), 8(900), 2(1900), 1(2100)
Data Speed
HSDPA+ (4G) 21.1 Mbit/s, HSUPA 5.76 Mbit/s, UMTS LTE Cat 4 (150/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s, UMTS LTE Cat 4 (150/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s, UMTS
SIM type
Micro SIM Micro SIM
VoLTE
Yes

Phone Features

Notifications
Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
Other features
Voice dialing, Voice commands, Voice recording Voice dialing, Voice commands, Voice recording Voice dialing, Voice commands, Voice recording

Regulatory Approval

FCC approval
Date approved: Nov 04, 2013
FCC ID value: ZNFD821
Measured SAR
Head: 0.92 W/kg
Body: 1.01 W/kg
Simultaneous Transmission: 1.46 W/kg
Wireless Router: 1.23 W/kg

Buyers information

MSRP
$ 180 $ 399

Availability

Officially announced
Sep 05, 2014 Oct 31, 2013 Feb 24, 2014
