Sony breaks new ground with camera sensors curved like the human eye

Posted: , by Victor H.

Tags:

Sony breaks new ground with camera sensors curved like the human eye

Sony has developed a radical new kind of camera sensor that improves light sensitivity and allows for the use of simpler lenses. While all current camera technology relies on a flat sensor to capture light, Sony’s newest development is a CMOS sensor that is curved, mimicking the curvature of the human retina.

Compared to traditional flat sensors, the new curved CMOS sensor is 1.4 times more sensitive to light in its center and an impressive 2 times more sensitive at the edges, according to a report at the Symposium on VLSI Technology in Hawaii, delivered by Kazuichiro Itonaga, a device manager for Sony R&D Platform in Atsugi-shi, Japan.

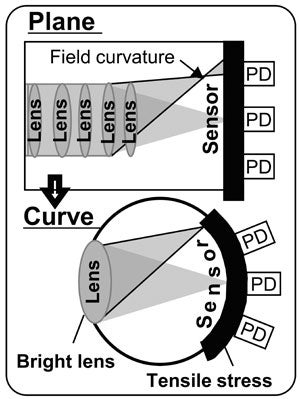

The pure geometry of a curved sensor allows it to be used with a flatter lens, with a higher aperture, a key factor in allowing more light to pass to the sensor. The most obvious advantage of the curvature, however, is that light can now hit photodiodes more directly rather than obliquely. In addition, the curved form results in reductions to the noise from current flowing through a pixel even when its not receiving any external light (the so called “dark current”).

Sony uses a sophisticated process with a custom “bending machine” to flex the sensor and achieve a human retina-grade curvature. Itonaga specified that the machine first bends the sensor, but it’s also fortified with a ceramic coating after the bending for stability.

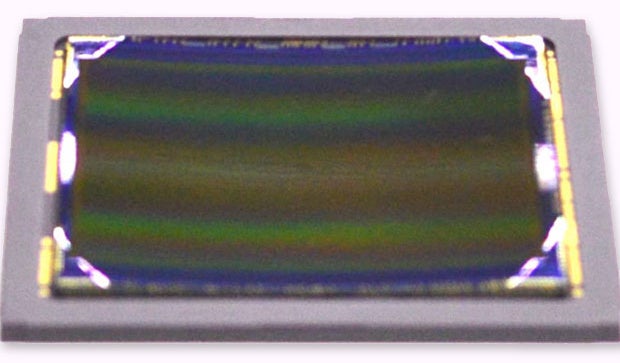

Sony's new curved CMOS sensor could improve camera light sensitivity up to 2 times

Sony's new curved CMOS sensor could improve camera light sensitivity up to 2 times

The most exciting part of Itonaga’s report, however, might be the size of the two sensors that Sony has developed: the first one is a full frame 43mm one clearly aimed at high-end stand-alone cameras, and the second one is a 11mm one. The sheer size would not tell you much, but a quick check reveals that this is in fact a 2/3” sensor, the same size as the camera sensor in the Nokia Lumia 1020. What this means is that we could well see this in a future smartphone camera, and why not in a future Sony Xperia Z series flagship?

Being a new sensor that requires a new system of lenses, it is a great fit for devices like smartphones with a fixed-focus (prime) lens, and no interchangeable lens support. Sony already showed one of a few if not the only compatible lens (a prime lens), at the presentation, and it also demonstrated an image shot with the new system.

Best of all, all of this innovation is not just in patent imagination land - Sony has already manufactured around 100 full-size sensors with their custom bending machine.

When is this coming to market, though? While we have no fixed time frame, Itonaga concludes that this is not purely hypothetical: “We are ready.”

source: Spectrum
