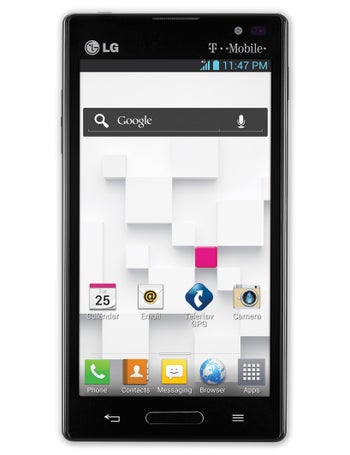

LG Optimus L9 T-Mobile

Released

Oct 31, 2012

Display

4.5 inches
960 x 540 pixels

Camera

5 MP (Single camera)
0.3 MP VGA front

Hardware

TI OMAP4430
1GB RAM

Storage

4GB, microSDHC

Battery

2150 mAh

OS

Android 4.1.2

Description

This is T-Mobile's version of the LG Optimus L9 which leapfrogs over the previous flagship of the line and is equipped with a 4.7 inch IPS display. Under the hood is a dual-core 1GHz processor with 1GB of RAM on board and a 5MP camera on back. A VGA shooter is on front. A 2150mAh battery keeps things humming and Android 4.0 is installed.

This device is also known as LG P769

Specs Compare

Display
Size:	4.5 inches
Resolution:	960 x 540 pixels, 245 PPI
Technology:	IPS LCD
Screen-to-body:	65.41 %
Touchscreen:	Capacitive, Multi-touch
Features:	Proximity sensor, Scratch-resistant glass

Hardware
System chip:	TI OMAP4430
Processor:	Dual-core, 1000 MHz, ARM Cortex-A9
GPU:	PowerVR SGX540
RAM:	1GB LPDDR2
Internal storage:	4GB
Storage expansion:	microSDHC up to 32 GB
Device type:	Smartphone
OS:	Android (4.1.2, 4.0) Screenshots

Battery
Capacity:	2150 mAh
Type:	User replaceable

Camera
Rear:	Single camera Camera samples
Main camera:	5 MP (Autofocus)
Video recording:	1920x1080 (Full HD)
Features:	Video calling
Front:	0.3 MP VGA

Design Size comparison
Dimensions:	5.03 x 2.63 x 0.36 inches (128 x 67 x 9 mm)
Weight:	4.2 oz (119.0 g)
Keys:	Left: Volume control; Right: Lock/Unlock key

Cellular
UMTS:	Bands 4(1700/2100)
Data Speed:	HSPA, UMTS

Multimedia
Headphones:	3.5mm jack
Speakers:	Earpiece, Loudspeaker
Features:	Album art cover, Background playback
Screen mirroring:	DLNA

Connectivity & Features
Bluetooth:	3.0
Wi-Fi:	Yes; Hotspot
USB:	microUSB, USB 2.0
Features:	Mass storage device, Charging
Location:	A-GPS
Sensors:	Accelerometer
Other:	UMA (Wi-Fi Calling), Computer sync, OTA sync
Hearing aid compatible:	M4, T3

Phone features
Notifications:	Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
Other features:	Voice dialing, Voice commands, Voice recording

Regulatory Approval
FCC approval:
Date approved:	Sep 17, 2012
FCC ID value:	ZNFP769 link
Measured SAR:
Head:	0.28 W/kg
Body:	1.25 W/kg
Simultaneous Transmission:	1.52 W/kg
Wireless Router:	1.25 W/kg

Availability
Officially announced:	Oct 08, 2012
