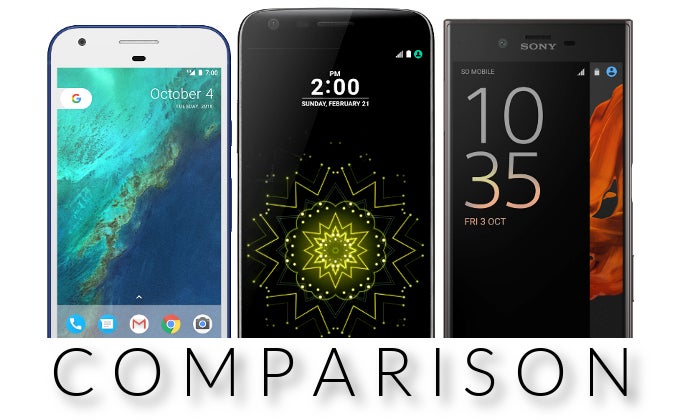

Google Pixel vs LG G5 vs Sony Xperia XZ: specs and size comparison

6comments

With the fresh new Google Pixel, the Mountain View-based tech giant is definitely hoping to reposition itself as a mainstream device manufacturer. With the pretty intriguing state of the market at the moment mostly considering the costly Samsung Galaxy Note 7 recall, we'd say that Google has a fair chance of grasping a significant portion of the Android market.

We've already compared Google;s Pixels against a bunch of notable Android rivals, but as usual, there are always a few more adversaries we should not be forgetting about. Two of these are LG's modular G5 flagship and Sony's latest Xperia XZ offering, which succeeds the early-2016 Xperia X. Being in mostly the same niche as the 5.0-inch Pixel, it's only fair to compare them against that one. Let's first see how this exceptional trio of promising devices compare in terms of size against one another.

At 5.0 inches, the regular Pixel is unsurprisingly the smallest of the bunch, with dimensions of 5.66 x 2.74 x 0.34 inches (143.84 x 69.54 x 8.58 mm) and weighing 5.04 oz (143 g). Meanwhile, the 5.3-inch LG G5 measures up at 5.88 x 2.91 x 0.29 inches (149.4 x 73.9 x 7.3 mm) and tips the scales at 5.61 oz (159 g), while the 5.2-inch Xperia XZ clocks in at 5.75 x 2.83 x 0.32 inches (146 x 72 x 8.1 mm) and weighs 5.68 oz (161 g). The latter is also the most efficient when it comes to screen-to-body ratio: with 715 of screen-to-body, the Xperia XZ is one step ahead of the G5 (70.15%) and the Pixel (68.88%).

Here's how the three phones look toe to toe.

Google Pixel
Dimensions

5.66 x 2.74 x 0.34 inches

143.84 x 69.54 x 8.58 mm

Weight

5.04 oz (143 g)

LG G5
Dimensions

5.88 x 2.91 x 0.29 inches

149.4 x 73.9 x 7.3 mm

Weight

5.61 oz (159 g)

Sony Xperia XZ
Dimensions

5.75 x 2.83 x 0.32 inches

146 x 72 x 8.1 mm

Weight

5.68 oz (161 g)

Google Pixel
Dimensions

5.66 x 2.74 x 0.34 inches

143.84 x 69.54 x 8.58 mm

Weight

5.04 oz (143 g)

LG G5
Dimensions

5.88 x 2.91 x 0.29 inches

149.4 x 73.9 x 7.3 mm

Weight

5.61 oz (159 g)

Sony Xperia XZ
Dimensions

5.75 x 2.83 x 0.32 inches

146 x 72 x 8.1 mm

Weight

5.68 oz (161 g)

See the full Google Pixel vs LG G5 vs Sony Xperia XZ size comparison or compare them to other phones using our Size Comparison tool.
Now, with the size comparison between the three out of the way, it's time to see how the Pixel stacks up against the modular LG G5 and the Xperia XZ in terms of specs. Here goes:

Google Pixel LG G5 Sony Xperia XZ

Design

Dimensions
5.66 x 2.74 x 0.34 inches
143.84 x 69.54 x 8.58 mm
5.88 x 2.91 x 0.29 inches
149.4 x 73.9 x 7.3 mm
5.75 x 2.83 x 0.32 inches
146 x 72 x 8.1 mm
Weight
5.04 oz (143.0 g) 5.61 oz (159.0 g) 5.68 oz (161.0 g)
Materials
Back: Aluminum, Glass Back: Metal Back: Aluminum
Resistance
Splash, Dust; IP53 Water, Dust; IP68
Biometrics
Fingerprint (touch) Fingerprint (touch) Fingerprint (touch)
Features
Notification light
Keys
Right: Volume control, Lock/Unlock key Left: Volume control Right: Volume control, Camera shutter, Lock/Unlock key
Colors
Black, Gray, White Gold, Gray, Silver, Pink Black, Gray, Pink, Blue

Display

Size
5.0-inch 5.3-inch 5.2-inch
Resolution
1920x1080px, 16:9 ratio, 441 PPI 2560x1440px, 554 PPI 1920x1080px, 424 PPI
Technology
AMOLED IPS LCD IPS LCD
Screen-to-body
68.88 % 70.15 % 71.00 %
Colors
16 777 216 16 777 216
Features
Oleophobic coating, Scratch-resistant glass (Corning Gorilla Glass 4), Ambient light sensor, Proximity sensor Ambient light sensor, Proximity sensor Scratch-resistant glass (Corning Gorilla Glass 4), Ambient light sensor, Proximity sensor

Hardware

System chip
Qualcomm Snapdragon 821 MSM8996 Pro Qualcomm Snapdragon 820 8996 (14 nm) Qualcomm Snapdragon 820 MSM8996 (14 nm)
Processor
Quad-core
2150 MHz
Kryo
Quad-core
2200 MHz
Kryo
Quad-core
2150 MHz
Kryo
GPU
Adreno 530 Adreno 530 Adreno 530
RAM
4GB (LPDDR4) 4GB (LPDDR4) 3GB
Internal storage
128GB 32GB, available to use: 22.4 GB 32GB, available to use: 21.5 GB
Storage expansion
not expandable microSDXC up to 2000 GB microSDXC up to 256 GB
OS
Android (10, 9.0 Pie, 8.1 Oreo, 8.0 Oreo, 7.1 Nougat) Android (8.0 Oreo, 7.0 Nougat, 6.0 Marshmallow), LG UX UI Android (8.0 Oreo, 7.1 Nougat, 7.0 Nougat, 6.0 Marshmallow)

Battery

Capacity
2770 mAh 2800 mAh 2900 mAh
Type
Li - Ion Li - Ion
Charging
USB Power Delivery Qualcomm Quick Charge 3.0 Qualcomm Quick Charge 3.0

Camera

Rear
Single camera Dual camera Single camera
Main camera
12.3 MP (Laser and PDAF)
Aperture size: F2.0
Sensor size: 1/2.3"
Pixel size: 1.55 μm
16 MP (OIS, Laser autofocus)
Aperture size: F1.8
Focal length: 26 mm
Sensor size: 1/2.6"
Pixel size: 1.12 μm
23 MP (Laser and PDAF)
Aperture size: F2.0
Focal length: 24 mm
Sensor size: 1/2.3"
Second camera
8 MP
Aperture size: F2.4
Focal Length: 9 mm
Flash
Dual LED LED LED
Video recording
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (120 fps), 1280x720 (HD) (240 fps)
Video calling, Video sharing
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps), 1280x720 (HD)
HDR, Time-lapse video, Picture-taking during video recording, Video calling, Video sharing
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps)
Time-lapse video, Object tracking, EIS, Video calling, Video sharing
Front
8 MP, Video capture: 1920x1080 (Full HD) 8 MP, Video capture: 1920x1080 (Full HD) 13 MP (Wide Angle), Video capture: 1920x1080 (Full HD)

Connectivity & Features

Bluetooth
4.2 4.2 4.2
WLAN
802.11 a,b,g,n,ac,dual-band
MIMO, Wi-Fi Direct, Hotspot
802.11 a,b,g,n,ac,dual-band
Wi-Fi Direct, Hotspot
802.11 a,b,g,n,ac,dual-band
MIMO, Hotspot, Wi-Fi Direct
USB
Type-C, USB 3.0 Type-C Type-C, USB 2.0
Hearing aid compatible
M4/T4 M3/T3
Location
GPS, A-GPS, Glonass GPS, A-GPS GPS, A-GPS, Glonass, BeiDou
Sensors
Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer Accelerometer, Gyroscope, Compass Accelerometer, Gyroscope, Compass, Barometer, Step detector, Step counter
Other
NFC, UMA (Wi-Fi Calling), Tethering, Computer sync, OTA sync NFC, UMA (Wi-Fi Calling), Infrared, Tethering, Computer sync, OTA sync NFC, UMA (Wi-Fi Calling), Tethering, Computer sync, OTA sync

Multimedia

Headphones
3.5mm jack 3.5mm jack 3.5mm jack
Speakers
Earpiece, Loudspeaker Earpiece, Loudspeaker Earpiece, Loudspeaker
Features
aptX-HD aptX-HD Album art cover, Background playback
Screen mirroring
DLNA,Wireless screen share,SlimPort DLNA,Wireless screen share
Radio
FM
Additional microphone(s)
Noise cancellation Noise cancellation Noise cancellation

Cellular

4G (FDD)
Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 17(700 b), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS) Bands 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 12(700 a), 13(700 c), 17(700 b), 20(800 DD), 25(1900+) Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 17(700 b), 19(800 Upper), 20(800 DD), 26(850+), 28(700 APT), 29(700 d)
4G (TDD)
Bands 41(2600+) Bands 38(2600), 39(1900+), 40(2300), 41(2600+)
3G
Bands 1(2100), 2(1900), 4(1700/2100), 5(850), 8(900) Bands 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100) Bands 6(800), 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100)
Data Speed
LTE-A Cat 11 (600/75 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, UMTS LTE-A Cat 6 (300/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s LTE-A Cat 9 (450/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
SIM type
Nano SIM Nano SIM Nano SIM
HD Voice
Yes Yes

Phone Features

Notifications
Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone Haptic feedback
Other features
Voice dialing, Voice commands, Voice recording, TTY/TDD Voice dialing, Voice commands, Voice recording, TTY/TDD

Regulatory Approval

FCC approval
Date approved: Feb 12, 2017
FCC ID value: NM8G-2PW4100
Date approved: Feb 14, 2017
FCC ID value: PY7-29752M
Measured SAR
Head: 0.92 W/kg
Measured in: 1900 MHz
Body: 0.58 W/kg
Measured in: 1900 MHz
Simultaneous Transmission: 1.08 W/kg
Wireless Router: 0.58 W/kg
Head: 0.53 W/kg
Body: 0.35 W/kg
Simultaneous Transmission: 1.47 W/kg
Wireless Router: 0.80 W/kg

Buyers information

MSRP
$ 749
In The Box
USB-C 18W adaptor with USB-PD, A-C cable (USB 3.0), C-C cable (USB 2.0), SIM tool, Quick switch adapter, In box promos and collateral

Availability

Officially announced
Oct 04, 2016 Feb 21, 2016 Sep 01, 2016
See the full Google Pixel vs LG G5 vs Sony Xperia XZ specs comparison or compare them to other phones using our Phone Comparison tool
