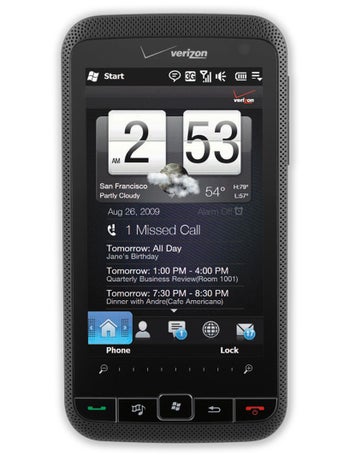

HTC Imagio
- Bookmark
- Posted: 21 Jul 2009 Announced: 01 Oct 2009
- Market Status: Released
- Release date: 06 Oct 2009
-
Do you ...?
- US carrier availability: Verizon - Discontinued
- Links: HTC Imagio manual HTC Imagio XV6975 Review Motorola DROID, HTC Imagio and DROID ERIS: side by side Verizon Cameraphone Comparison Q4 2009 HTC Imagio XV6975 Official Page
The HTC Imagio is the first smartphone offered by Verizon that runs Windows Mobile 6.5 Professional and also the only one that comes with VCast Mobile TV, powered by Qualcomm's FLO TV network. Other features include a WVGA screen, GPS, WiFi, a 5-megapixel camera, an accelerometer and TouchFLO user interface.
Rating
HTC Imagio specifications
also known as HTC Whitestone, HTC Touch Diamond2 CDMA, HTC XV6975
Pros
- Dual-mode CDMA/GSM phone
- High pixel densitiy screen, over 250ppi (259 ppi)
Cons
- Slow processor (528 MHz)
- Resistive touchscreen technology means its display is less sensitive than you would like it to be
- Too little RAM memory (288 MB RAM)
- Lacks a proximity sensor that turns the display оff during a phone call
Design
- Device type:
- Smart phone
- OS:
- Windows Mobile Professional (6.5)
- Form factor:
Form factor - Refers to the form factor of a phone. The main handset designs are bar, clamshell, slide, swivel
- Candybar
- Dimensions:
- 4.60 x 2.40 x 0.50 (117 x 61 x 13 mm)
- Weight:
- 5.30 oz (150 g)
the average is 4.2 oz (120 g)
- 5.30 oz (150 g)
Display
- Physical size:
- 3.60 inches
- Resolution:
- 480 x 800 pixels
- Pixel density:
Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.
- 259 ppi
- Technology:
Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.
- TFT
- Colors:
Colors - Shows the number of colors that the display supports
- 65 536
- Touchscreen:
- Resistive
- Features:
- Light sensor
Battery
- Talk time:
Talk time - Maximum talk time in hours
- 5.00 hours
the average is 8 h (497 min)
- 5.00 hours
- Stand-by time:
- 13.0 days (312 hours)
the average is 21 days (496 h)
- 13.0 days (312 hours)
- Capacity:
- 1500 mAh
Hardware
- System chip:
System chip - Most modern handsets use an advanced chip that includes many of the device’s hardware modules like the processor, Wi-Fi, Bluetooth and sometimes even the wireless radio. This field shows what particular system chip (or System-on-a-Chip) is used in the phone.
- Qualcomm MSM7200A
- Processor:
Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.
- Single core, 528 MHz
- System memory:
System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.
- 288 MB RAM / 512 MB ROM
- Storage expansion:
- Slot Type:
- microSD, microSDHC
- Slot Type:
Camera
- Camera:
- 5 megapixels
- Features:
- Auto focus, Digital zoom
- Camcorder:
- Yes
Multimedia
- Radio:
- FM
- Broadcast Mobile TV:
- MediaFlo
Internet browsing
- Browser:
- Opera Browser
Technology
- CDMA:
CDMA - Code Division Multiple Access. A technique of multiplexing, also called spread spectrum, in which analog signals are converted into digital form for transmission. For each communication channel, the signals are encoded in a sequence known to the transmitter and the receiver for that channel. The foremost application is digital cellular phone technology from QUALCOMM that operates in the 800MHz band and 1.9GHz PCS band. CDMA phones are noted for their excellent call quality and long battery life.
- 800, 1900 MHz
- GSM:
GSM - Global System for Mobile communications. A world standard for digital cellular communications using narrowband TDMA (Time Division Multiple Access), which allows up to eight calls at a time on 800 MHz and 1800 MHz frequencies. Introduced in 1991. Is the standard most commonly used in Europe and Asia, but not in the United States. GSM phones use a Subscriber Identity Module (SIM) smart card that contains user account information. Any GSM phone becomes immediately programmed after plugging in the SIM card, thus allowing GSM phones to be easily rented or borrowed.
- 850, 900, 1800, 1900 MHz
- UMTS:
UMTS - Universal Mobile Telecommunications Service, also called WCDMA, is a 3G (Third Generation) packet-based transmission of text, digitized voice, video, and multimedia at data rates up to 2 Mbps. It is based on GSM standard and is supported by major standards bodies and manufacturers
- 2100 MHz
- Data:
Data - Shows the particular phone's type of data. the major mobile phone data types are GPRS, CDMA2000 1xRTT, EDGE, CDMA2000 1xEV-DO, UMTS, etc.
- HSDPA 7.2 Mbit/s, HSUPA 2 Mbit/s, UMTS, EDGE, EV-DO Rev.A
- Positioning:
Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.
- GPS
Phone features
- Phonebook:
- Unlimited entries, Multiple numbers per contact, Picture ID, Ring ID
- Organizer:
- Calendar, Alarm, To-Do, Document viewer, Calculator, Notes
- Messaging:
- SMS, MMS (T9), Predictive text input
- E-mail:
- IMAP, POP3, SMTP
Connectivity
- Bluetooth:
- 2.0, EDR
- Wi-Fi:
Wi-Fi - Wireless Local Area Network (WLAN) - used radio waves (RF) or infrared signals to send and receive data over the air. Most popular WLAN solutions today is Wi-Fi (802.11b and 802.11g) standards. 801.11b provides data speeds of around 11mbps while 802.11g can go up to 54 mbps.
- 802.11 b, g
- USB:
- USB 2.0
- Connector:
- miniUSB
- Computer sync
Other features
- Notifications:
- Music ringtones (MP3), Vibration, Phone profiles, Speakerphone
- Sensors:
- Accelerometer
- Hearing aid compatibility:
- M3, T4
- Voice dialing, Voice commands, Voice recording
Availability
- Officially announced:
- 01 Oct 2009
