Intel closes the power consumption gap on ARM, Atom competitive with Cortex A15 and Krait
Chipzilla is trying hard to change that, coming from behind in a very competitive space where ARM has managed to outplay it with a drastically more power-efficient architectures over the last couple of years. With the latest Atom chips Intel might have had the performance advantage, however it never managed to get power consumption down to competitive levels. Until now.
An Intel engineer paid a visit to AnandTech bringing two cream of the crop devices, a Dell XPS 10 tablet based on Qualcomm’s Snapdragon S4 with Krait (dual-core, 28nm), and a Nexus 10 running on Cortex A15-based Exynos 5 Dual chip (dual-core, 32nm). Why? Simple, to prove that Intel has once and for good dealt with its power consumption issues. For that, power consumption of those devices was fared against Intel’s own solution, the Atom Z2760.
The conclusions are very favorable for Intel. Atom is definitely faster than Krait (which alone is interesting given that Atom is a 5-year old architecture), but what’s even more exciting is that the two are nearly on par in terms of power consumption.
Things will start getting interesting in around a year when Intel finally refreshes its Atom chips with a new 22nm Atom core.
In the comparison with Cortex A15, Intel’s Atom loses in terms of performance. However, A15 is clearly not meant to deliver its full potential on smartphones - it’s way too power hungry. It would work fine on tablets, but on smartphones it’s no coincidence that ARM recommends using it in a big.LITTLE configuration with a more power efficient A7 that will take over with less intense tasks.
To conclude, Anand makes an interesting suggestion. Intel’s Haswell architecture for desktop, a high-end solution costing tens of times the price of mobile solutions, is likely to receive a drastic power consumption makeover and could go down to the impressive 4W when we arrive at the 10nm manufacturing around 2017. That would open up the gates of heaven for mobile devices like say tablets. Moreover, it might be possible to get Core chips into smartphones even earlier than 2017.
Intel would definitely need some high-profile devices to drive adoption and market share, but it seems like its hard work could finally start to pay out and ARM will feel the heat soon.
1. feres13 (Posts: 306; Member since: 23 Dec 2011)
The iPhone 5's A6 Chip is the most power efficient chip and has the best GPU
6. darac (Posts: 2156; Member since: 17 Oct 2011)
Can you prove he is not right, android fan?
He is stating the fact actually
15. Berzerk000 (Posts: 4104; Member since: 26 Jun 2011)
The Mali-T604 got very respectable scores compared to the PowerVR's when you factor in the insane screen resolution, and it trumps everything but the SGX554 in the offscreen test.
Honestly, Google/Samsung should have used the Mali-T658 for such a high resolution, but I think Samsung wanted to keep that for the GS4.
16. joey_sfb (Posts: 3143; Member since: 29 Mar 2012)
There no point in having powerful hardware for a restrictive mobile OS such as the aging iOS.
Its a good thing that Apple has a large fan base to keep buying the same design same martyr years after years months after months.
28. darac (Posts: 2156; Member since: 17 Oct 2011)
Care to back up that statement?
SGX554MP4 is more powerful (though less modern architecture )than Mali t604.
Numbers are clear on that one, no matter how much you android fanboys thumb it down
34. Berzerk000 (Posts: 4104; Member since: 26 Jun 2011)
We were talking about the iPhone 5's GPU, the SGX543MP3, not the SGX554MP4. There's no doubt that the SGX554 beats out the Mali-T604, but the SGX543 certainly doesn't.
GLBenchmark 2.5 - Egypt HD (Offscreen 1080p)
iPad 4 (SGX554MP4) - 51.8
Nexus 10 (Mali-T604) - 32.9
iPhone 5 (SGX543MP3) - 27
Numbers. It's the Nexus 10's high resolution screen that brings it's score down, if you put the Mali-T604 with the same resolution as the iPhone 5, the numbers would be much higher. But, I know the SGX554 outclasses the Mali regardless of resolution.
I don't thumb down, I just prove people wrong (when possible).
35. faisolbauuz (Posts: 121; Member since: 05 Jan 2013)
Well there is a chinnese tablet called onda v972 that uses 8 core sgx 544 gpu (ipad3 only uses 4 cores) and have the same resolution as ipad3/4 it packs 2gb of ram
36. darac (Posts: 2156; Member since: 17 Oct 2011)
Yeah it's a misunderstanding.
I realized he is referring to the iPad and A6X but did not point that out. My bad
10. PhenomFaz (Posts: 1098; Member since: 26 Sep 2012)
dude it may be power efficient but definitely not the most powerful cpu nor the best graphics around....intel is going to flatten qualcomm and a6 alike!
13. feres13 (Posts: 306; Member since: 23 Dec 2011)
sorry i forgot that only the A5X and the A6X have better graphics
14. Berzerk000 (Posts: 4104; Member since: 26 Jun 2011)
Maybe in a couple years, but not right now.
Qualcomm isn't who Intel should be worrying about, it's Samsung. Samsung has always had best in class chips with its Exynos.
19. TheLibertine (Posts: 484; Member since: 15 Jan 2012)
Yeah, but Exynos are used only on Samsung's own devices. What Intel seeks is being the choice of HTC, Motorola, Nokia and Co.
And lets not simply deny the A-chips are strong silicon too.
22. Berzerk000 (Posts: 4104; Member since: 26 Jun 2011)
Ah, I was looking from a pure performance standpoint. Forgot about the competition of being the choice chip for manufacturers.
Half the reason why Apple's Ax chips are so strong is because Samsung manufactures them. If any other chip manufacturer made them, they probably wouldn't be as good.
24. picka_vi_materina (Posts: 164; Member since: 21 Nov 2011)
iPhone 5 has the best GPU on phones, fact! iPad 4 has the best mobile GPU ever, fact!
32. darac (Posts: 2156; Member since: 17 Oct 2011)
You have no clue on what you're talking about.
GPU wise, Atom chips are downright pathetic compared to the best ARM chips right now:
By the end of this year, Atom will only reach the GPU level of iPhone 5! (Implementing the SGX544MP2)
It's beyond ridiculous!!
40. Berzerk000 (Posts: 4104; Member since: 26 Jun 2011)
What? Where did you read that? The Nexus 4 and iPhone 5 don't have the same GPU.
The iPhone has a PowerVR SGX543MP3 while the Nexus 4 has an Adreno 320.
29. darkkjedii (Posts: 12440; Member since: 05 Feb 2011)
Now why is he an ifan for saying that? What if its actually true, and instead of just running his mouth he did his research.
39. ikkuh (Posts: 34; Member since: 22 May 2011)
Seems obvious. It's an article about the atom.
The iPhone is still an overrated, overpriced phone and has the most inflexible OS. Even with a great CPU and a GPU as the nexus 4 has.
7. theoak (Posts: 320; Member since: 16 Nov 2011)
On the surface it may look that way.

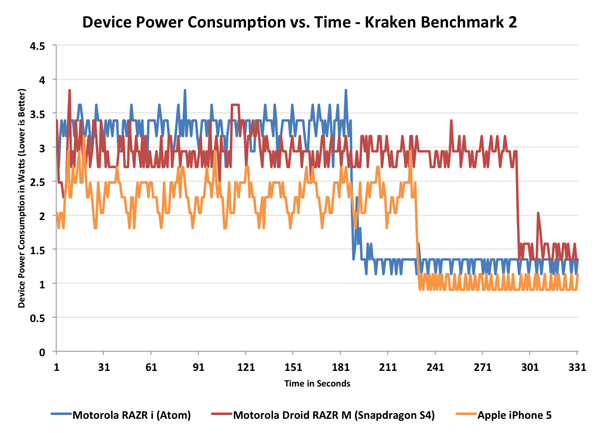

It is hard to tell what exactly this chart is measuring.
All phones have different screens, different pixel counts. The i5 is definitely the lower of all these when it comes to screen pixels. This alone may account for the lower power usage versus real CPU power usage.
12. feres13 (Posts: 306; Member since: 23 Dec 2011)
the droid razr m and the razr i have a qhd pentile screens 960*540 compared to the iphone 5's 1136*640...
11. MeoCao (unregistered)
A6 is not the best, it's so deceiving b-c iOS has few features and is very light for the chip to handle.
20. MorePhonesThanNeeded (Posts: 645; Member since: 23 Oct 2011)
This is what people or iFans always completely forget when talking about Apple iPhone and it's chips. The OS doesn't push the chip so it's obvious it's going to perform better, no multitasking and basically app launcher in a fancy case. Go back and see why the iPhone can claim such great numbers when the OS does very little in comparison to Android at any given moment. Too bad Google didn't try to do the same thing with Android, such as a low power mode which does the Apple version of multitasking, bet those power consumption numbers would rise on Android gear.
30. darac (Posts: 2156; Member since: 17 Oct 2011)
Who said it's the best chip?
It has the best GPU.
Having trouble reading?
31. darkkjedii (Posts: 12440; Member since: 05 Feb 2011)
Where's your proof? Any statement that's definitive should b backed up with proof.
37. MeoCao (unregistered)
Do I need to prove that iOS is a light OS?
And I notice that you never said anything substantive since your "grand contribution" to mankind: the definition of wireless charging. lol
41. Shatter (Posts: 2031; Member since: 29 May 2013)
Run a benchmark on barebones android with everything possible disabled then compare it to IOS. Also don't forget 1080p is around 75% more pixels of the iphone 5.
23. naptown2 (Posts: 70; Member since: 29 Dec 2012)
ummmmm no.... apple isnt anythinng special there are so many phones out there with better chips and have more power
26. rf1975 (Posts: 247; Member since: 01 Aug 2011)
Yes, come on intel make all other chip manufacturer bite the dust,
42. Shatter (Posts: 2031; Member since: 29 May 2013)
AMD is also prepping chips, gamers will want to go for APU powered phones becuase those will be smoking everything in the GPU department.
2. maxis3G (unregistered)
LETS COMPETITION BEGINS!!!
5. MeoCao (unregistered)
It's good to see Intel wakes up to competition and offer a real innovation and choice for consumers.
This will surely push ARM hard and that's great as ARM seems to lose the creativity somewhat as they dominate the market.
4. amozhi (Posts: 107; Member since: 23 Oct 2012)
Price must be competitive as well. Otherwise Intel will loose to ARM again
17. jove39 (Posts: 1320; Member since: 18 Oct 2011)
Please compare Atom with Exynos5...and Atom will surely taste dust...swift and krait cores are not most powerful designs...hopefully Anand will include results from Nexus10 in future :)
And believe it or not...SGX554MP4 is most powerful mobile GPU...yes even better than Mali604...go to anandtech and check yourself. Mali658 or 678 may have performance comparable to SGX554MP4...but then Imagetec is ready with their 6 series GPU.
Also, does anyone know PSP Vita has SGX543MP4+ gpu...again power vr....and it works really good.
21. Pedro0x (Posts: 271; Member since: 19 Oct 2012)
Exynos 5250 destroys Atom, I read it at anandtech. SGX554MP4 is the most powerful GPU now with 76.8 GFLOPS (Mali t-604 has ´´only´´ 67.2 GFLOPS) but mali t-658 should have around 268.8 GFLOPS or even more and the next generation of SGX is Rogue which should have around 250 GFLOPS. If this will be true, then we will finally have Xbox performance because Xbox has around 200-230 GFLOPS.
25. abate (Posts: 43; Member since: 19 Dec 2012)
WTF you are talking about? Did you read the article from the source? Pull out your fanboy face first.
18. krulll (Posts: 10; Member since: 21 Nov 2012)
results and methodology applied in this test (and the last) has well are controversial (the Anandtech is a reputable site but never hid his hatred for ARM) that all further tests by other sites and professional point opposite results.
33. InspectorGadget80 (Posts: 6694; Member since: 26 Mar 2011)
I still haven't see any INTEL chips on any phones here in the States
