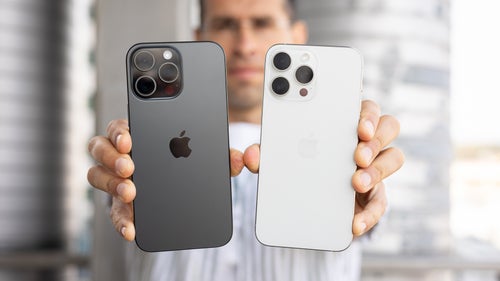

Apple iPhone 16 Pro Max vs Apple iPhone 15 Pro Max Specs Comparison

Availability

Officially announced
Sep 09, 2024	Sep 12, 2023
Prices (MSRP)
$1199 | €1449	$1199 | €1449

Design

Dimensions
6.42 x 3.05 x 0.33 inches (~0.48 inches with camera bump) 163.0 x 77.6 x 8.25 mm (~12.25 mm with camera bump)	6.30 x 3.02 x 0.32 inches (~0.48 inches with camera bump) 159.9 x 76.7 x 8.25 mm (~12.28 mm with camera bump)
Weight
8.01 oz / 227.0 g	7.80 oz / 221.0 g
Materials
Back: Glass Frame: Titanium	Back: Glass Frame: Titanium
Resistance
Water, Dust; IP68	Water, Dust; IP68
Biometrics
3D Face unlock	3D Face unlock
Keys
Left: Volume control, Other; Right: Lock/Unlock key, Other	Left: Volume control, Other; Right: Lock/Unlock key
Colors
Black Titanium, White Titanium, Natural Titanium, Desert Titanium	Black Titanium, White Titanium, Blue Titanium, Natural Titanium

Display

Size
6.9-inch, 92.35% screen-to-body	6.7-inch, 89.75% screen-to-body
Type
OLED, Variable 1-120Hz, HDR, 2000 nits	OLED, Variable 1-120Hz, HDR, 2000 nits
Resolution
2868x1320px, 19.5:9 ratio, 458 PPI	2796x1290px, 19.5:9 ratio, 460 PPI
Protection
Ceramic Shield	Ceramic Shield
Features
Super Retina XDR, HDR support, Oleophobic coating, Scratch-resistant glass, Ambient light sensor, Proximity sensor	Super Retina XDR, HDR support, Oleophobic coating, Scratch-resistant glass, Ambient light sensor, Proximity sensor

PhoneArena Display Test

Bright Max (20% APL)
2088 (Excellent)	2231 (Excellent)
Bright Min
0.93 (Excellent)	2 (Good)

Learn more on our PhoneArena Display Test Results page.

Hardware

System chip
Apple A18 Pro (3 nm)	A17 Pro (3 nm)
Processor
Hexa-core 2x4.05GHz 4x2.42G​Hz	Hexa-core 2x3.78GHz 4x2.11G​Hz
GPU
Apple 6-core GPU	Apple GPU 6-core
Memory
8GB (LPDDR5)/256GB (NVMe) 8GB/512GB 8GB/1024GB	8GB (LPDDR5)/256GB (NVMe) 8GB/512GB 8GB/1024GB
Storage expansion
not expandable	not expandable
OS
iOS (18.x)	iOS (18.x, 17.x)

PhoneArena Performance Test

GeekBench 6 Single
3331	2958
GeekBench 6 Multi
8106	7288
3D Mark High
4567	4236
3D Mark Low
3009	2632

Learn more on our PhoneArena Performance Test Results page.

Battery

Type
4685 mAh, Li - Ion	4422 mAh, Li - Ion
Charging
Fast charging Qi2 wireless charging, Reverse wired charging, MagSafe wireless charging	Fast charging Qi2 wireless charging, MagSafe wireless charging
Charge speed
Wired: 27.0W Wireless: 25.0W	Wired: 25.0W Wireless: 15.0W

PhoneArena Battery Tests

Battery Life Estimate

8h 30min

Browsing

22h 39min

Video

10h 24min

Gaming

12h 4min

Battery Life Estimate

7h 26min

Browsing

19h 20min

Video

9h 45min

Gaming

9h 36min

Learn more on our PhoneArena Battery Test Results page

Camera

Rear
Triple camera	Triple camera
Main camera
48 MP (Sensor-shift OIS, PDAF) Sensor name: Sony IMX903 Aperture size: F1.8 Focal length: 24 mm Sensor size: 1/1.28" Pixel size: 1.22 μm	48 MP (Sensor-shift OIS, PDAF) Sensor name: Sony IMX803 Aperture size: F1.8 Focal length: 24 mm Sensor size: 1/1.28" Pixel size: 2.44 μm
Second camera
48 MP (Ultra-wide) Sensor name: Sony IMX972 Aperture size: F2.2 Focal Length: 13 mm Sensor size: 1/3.06" Pixel size: 0.7 μm	12 MP (Ultra-wide) Sensor name: Sony IMX633 Aperture size: F2.2 Focal Length: 13 mm Pixel size: 1.4 μm
Third camera
12 MP (Telephoto, Periscope, Sensor-shift OIS, PDAF) Sensor name: Sony IMX913 Optical zoom: 5.0x Aperture size: F2.8 Focal Length: 120 mm Sensor size: 1/3.06" Pixel size: 1.12 μm	12 MP (Telephoto, Sensor-shift OIS, PDAF) Sensor name: Sony IMX913 Optical zoom: 5.0x Aperture size: F2.8 Focal Length: 120 mm Sensor size: 1/3.06" Pixel size: 1.12 μm
Flash
Dual LED	Dual LED
Video recording
4K UHD (120 fps), 1080p (240 fps) OIS, HDR, Continuous autofocus, Picture-taking during video recording, 10-bit HDR, Dolby Vision HDR, ProRes, Cinematic mode	4K UHD (60 fps), 1080p (240 fps) OIS, HDR, 10-bit HDR, Dolby Vision HDR, ProRes, Cinematic mode
Front
12 MP (Time-of-Flight (ToF), Autofocus, HDR) Video capture: 4K UHD (60 fps)	12 MP (Time-of-Flight (ToF), Autofocus, HDR) Video capture: 4K UHD (60 fps)

PhoneArena Camera Tests

154

Overall

158


150

Video

154

Overall

157


152

Video

Learn more on our PhoneArena Camera Test Results page

Connectivity & Features

Bluetooth
5.3	5.3
WLAN
a,b,g,n,ac,Wi-Fi 6,Wi-Fi 6E,Wi-Fi 7 Wi-Fi Direct, Hotspot 802.11 a, b, g, n, ac, ax	a,b,g,n,ac,Wi-Fi 6,Wi-Fi 6E Wi-Fi Direct, Hotspot 802.11 a, b, g, n, ac, ax
USB
Type-C, USB 3.2	Type-C, USB 3.2
Sensors
Accelerometer, Gyroscope, Compass, Barometer, Ambient light sensor, Proximity sensor	Accelerometer, Gyroscope, Compass, Barometer, Ambient light sensor, Proximity sensor
Hearing aid compatible
M3/T4	M3/T4
Location
GPS, A-GPS, Glonass, Galileo, BeiDou, QZSS, NavIC, Cell ID, Wi-Fi positioning, Emergency SOS via satellite (SMS sending/receiving)	GPS, A-GPS, Glonass, Galileo, BeiDou, QZSS, Cell ID, Wi-Fi positioning, Emergency SOS via satellite (SMS sending/receiving)
Other
NFC, Ultra Wideband (UWB)	NFC, Ultra Wideband (UWB)

Multimedia

Headphones
No 3.5mm jack	No 3.5mm jack
Speakers
Earpiece, Multiple speakers	Earpiece, Multiple speakers
Features
Dolby Atmos	Dolby Atmos

Cellular

5G Bands
n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n77, n78, n79, n258, n260, n261, SA, NSA, Sub-6, mmWave	n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79, n258, n260, n261, SA, NSA, mmWave
4G (FDD) Bands
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66, 71	1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 25, 26, 28, 29, 30, 32, 66, 71
4G (TDD) Bands
34, 38, 39, 40, 41, 42, 46, 48	34, 38, 39, 40, 41, 42, 46, 48
3G Bands
1, 2, 4, 5, 8	1, 2, 4, 5, 8
Data Speed
LTE-A Pro Cat 18 (1200/150 Mbit/s)	LTE-A, HSDPA+ (4G) 42.2 Mbit/s
SIM type
eSIM	eSIM
HD Voice
Yes	Yes
VoLTE
Yes	Yes

Regulatory Approval

FCC approval
Date approved: Sep 09, 2024 FCC ID value: BCG-E8684A	Date approved: Sep 12, 2023 FCC ID value: BCG-E8439A
Measured SAR
Head: 0.96 W/kg Body: 0.98 W/kg Simultaneous Transmission: 0.99 W/kg	Head: 0.95 W/kg Body: 0.95 W/kg Simultaneous Transmission: 0.95 W/kg

Alternative variants

With 512GB internal storage

Memory	512GB
Prices (MSRP)	$1399

With 512GB internal storage

Memory	512GB
Prices (MSRP)	$1399

With 1TB internal storage

Memory	1024GB
Prices (MSRP)	$1599

With 1TB internal storage

Memory	1024GB
Prices (MSRP)	$1599

International

5G Bands	n1, n2, n3, n5, n7, n8, n12, n14, n25, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n77, n78, n79, SA, NSA, Sub-6
4G (FDD) Bands	1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66, 71
4G (TDD) Bands	34, 38, 39, 40, 41, 42, 48

International

5G Bands	n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n77, n78, n79, SA, NSA, Sub-6
4G (FDD) Bands	1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66, 71
4G (TDD) Bands	34, 38, 39, 40, 41, 42, 46, 48
