Display

Display size:

3.2 inches

Resolution:

480 x 800 pixels

Pixel density:

292 ppi

Technology:

TFT

Screen-to-body ratio:

50.86 %

Features:

Ambient light sensor

Camera

Rear:

Single camera

Main camera:

5 megapixels

Hardware Features:

Autofocus

Video recording:

Yes

Features:

Video calling

Front:

Yes

Design

Dimensions:

4.25 x 2.09 x 0.54 inches (108 x 53 x 14 mm)

Weight:

4.14 oz (118 g)
the average is 6 oz (172 g)

Features:

Stylus

Hardware & Performance

System chip:

Qualcomm MSM7200A

Processor:

Single core, 528 MHz

RAM:

0.3 GB

ROM:

512 MB

OS:

Windows Mobile Professional (6.1)

Battery

Capacity:

1100 mAh

Talk time:

5.66 hours
the average is 23 h (1396 min)

Stand-by time:

15.0 days (360 hours)
the average is 21 days (503 h)

Cellular

UMTS:

900, 2100 MHz

GSM:

850, 900, 1800, 1900 MHz

Data:

UMTS, HSDPA 7.2 Mbit/s, HSUPA 2 Mbit/s

Connectivity

Bluetooth:

2.0, EDR

Wi-Fi:

802.11 b, g

USB:

USB 2.0

Connector:

miniUSB

Location:

GPS

Other:

Computer sync

Phone features

Sensors:

Accelerometer

Notifications:

Music ringtones (MP3), Vibration, Phone profiles, Speakerphone

Other features:

Voice recording

Multimedia

Radio:

FM, RDS

Regulatory Approval

FCC approval:

Date approved:

Mar 06, 2009

FCC ID value:

NM8TPZV link

FCC measured SAR:

Head:

0.51 W/kg

Measured in:

1900 MHz

Body:

0.67 W/kg

Measured in:

1900 MHz

Pros

No Pros

Cons

  • The touchscreen uses resistive technology, which is not responsive
  • Thick body (0.54 inches)
  • The camera lacks flash
  • Too little RAM
  • Low pixel density screen (292 ppi)

Description

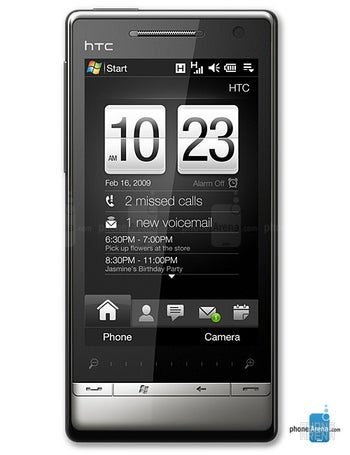

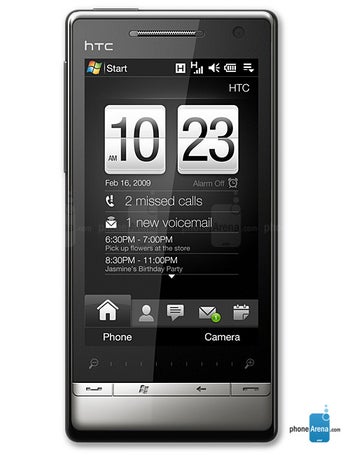

Successor of the Diamond, Diamond2 is also Windows Mobile Professional smartphone in candybar design. It features a WVGA screen, 528 MHz Qualcomm CPU, Windows Mobile 6.1, GPS, WiFi and HSPA for 3G connectivity, a 5-megapixel camera, an accelerometer and TouchFLO user interface.
