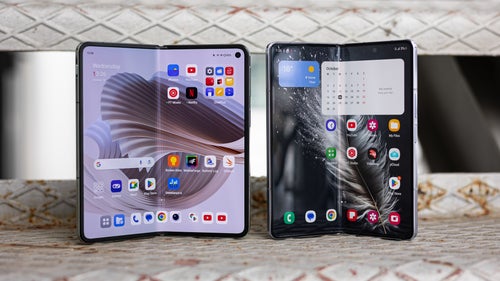

OnePlus Open vs Samsung Galaxy Z Fold 5 Specs Comparison

Availability

Officially announced
Oct 19, 2023	Jul 26, 2023
Prices (MSRP)
$1699	$1799

Design

Dimensions
6.04 x 5.63 x 0.23 inches 153.4 x 143.1 x 5.8 mm	6.10 x 5.11 x 0.24 inches 154.9 x 129.9 x 6.1 mm
Folded
(153.4 x 73.3 x 11.7 mm)	6.10 x2.64 x0.52 inches (154.9 x 67.1 x 13.4 mm)
Weight
8.43 oz / 239.0 g	8.92 oz / 253.0 g
Materials
	Back: Glass (Corning Gorilla Glass Victus 2) Frame: Aluminum
Resistance
Yes; IPX4	Water; IPX8
Biometrics
Fingerprint (touch)	Fingerprint (touch)
Keys
	Right: Volume control, Lock/Unlock key
Colors
	Icy Blue, Phantom Black, Cream, Gray, Blue

Display

Size
7.8-inch, 89.68% screen-to-body	7.6-inch, 91.12% screen-to-body
Type
AMOLED, 120Hz, HDR, 2800 nits	Dynamic AMOLED, 120Hz, HDR, 1750 nits
Resolution
2268x2440px, 1.07:1 ratio, 426 PPI	2176x1812px, 21.6:18 ratio, 373 PPI
Features
Folding inside the device, HDR support, Ambient light sensor, Proximity sensor	Folding inside the device, HDR support, Ambient light sensor, Proximity sensor
Front cover display
6.3 inches 2484 x1116 px AMOLED 120Hz refresh rate, HDR support	6.2 inches 2316 x904 px Dynamic AMOLED 120Hz refresh rate, Scratch-resistant glass (Corning Gorilla Glass Victus 2), Ambient light sensor, Proximity senso

PhoneArena Display Test

Bright Max (20% APL)
1516 (Good)	1591 (Good)
Bright Min
1.9 (Good)	1 (Excellent)

Learn more on our PhoneArena Display Test Results page.

Hardware

System chip
Snapdragon 8 Gen 2 SM8550 (4 nm)	Snapdragon 8 Gen 2 SM8550-AC (4 nm)
Processor
Octa-core 1x3.2GHz Kryo Prime 4x2.8GHz Kryo Gold 3x2.0GHz Kryo Silve	Octa-core 1x3.36GHz Cortex-X3 2x2.8GH​z Cortex-A715 2x2.8​GHz Cortex-A710 3x2.0​GHz Cortex-A510
GPU
Adreno 740	Adreno 740
Memory
16GB/512GB (UFS 4.0)	12GB (LPDDR5X)/256GB (UFS 4.0) 12GB/512GB 12GB/1024GB
Storage expansion
not expandable	not expandable
OS
Android (13)	Android (14, 13)

PhoneArena Performance Test

GeekBench 6 Single
1560	2062
GeekBench 6 Multi
5093	5531
3D Mark High
3634	3886
3D Mark Low
2488	2158

Learn more on our PhoneArena Performance Test Results page.

Battery

Type
4805 mAh	4400 mAh, Li - Polymer
Charging
Fast charging Reverse wired charging	Fast charging Qi wireless charging, Reverse wireless charging
Charge speed
Wired: 67.0W	Wired: 25.0W Wireless: 15.0W

PhoneArena Battery Tests

Battery Life Estimate

5h 35min

Browsing

13h 20min

Video

7h 22min

Gaming

8h 51min

Battery Life Estimate

4h 41min

Browsing

9h 22min

Video

6h 30min

Gaming

9h 27min

Learn more on our PhoneArena Battery Test Results page

Camera

Rear
Triple camera	Triple camera
Main camera
48 MP (OIS, PDAF) Aperture size: F1.7 Focal length: 24 mm Pixel size: 1.12 μm	50 MP (OIS, PDAF) Aperture size: F1.8 Focal length: 23 mm Sensor size: 1/1.56" Pixel size: 1.0 μm
Second camera
48 MP (Ultra-wide, PDAF) Aperture size: F2.2 Focal Length: 14 mm Sensor size: 1/2" Pixel size: 0.8 μm	12 MP (Ultra-wide) Aperture size: F2.2 Focal Length: 12 mm Sensor size: 1/3.06" Pixel size: 1.12 μm
Third camera
64 MP (Telephoto, OIS, PDAF) Optical zoom: 3.0x Aperture size: F2.6 Focal Length: 70 mm Sensor size: 1/2" Pixel size: 0.7 μm	10 MP (Telephoto) Aperture size: F2.4 Focal Length: 66 mm Sensor size: 1/3.94" Pixel size: 1.0 μm
Flash
LED	LED
Video recording
4K UHD (60 fps), 1080p (240 fps)	8K UHD (30 fps), 4K UHD (60 fps)
Front
32 MP Folded: 20 MP	4 MP (Under-screen) Folded: 10 MP

PhoneArena Camera Tests

144

Overall

150


138

Video

140

Overall

144


135

Video

Learn more on our PhoneArena Camera Test Results page

Connectivity & Features

Bluetooth
5.3	5.3
WLAN
b,g,n,ac,Wi-Fi 6,Wi-Fi 6E,Wi-Fi 7,ad Wi-Fi Direct, Hotspot 802.11 b, g, n, ac, ax, ad	a,b,g,n,ac,Wi-Fi 6,Wi-Fi 6E Wi-Fi Direct, Hotspot 802.11 a, b, g, n, ac, ax
USB
Type-C, USB 3.1	Type-C
Sensors
Accelerometer, Gyroscope, Compass, Hall (for flip covers), Ambient light sensor, Proximity sensor	Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer, Ambient light sensor, Proximity sensor
Location
GPS, A-GPS, Glonass, Galileo, BeiDou, Cell ID, Wi-Fi positioning	GPS, A-GPS, Glonass, Galileo, BeiDou, Cell ID, Wi-Fi positioning
Other
NFC	NFC

Multimedia

Headphones
No 3.5mm jack	No 3.5mm jack
Speakers
Earpiece, Multiple speakers	Earpiece, Multiple speakers

Cellular

5G Bands
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n30, n38, n40, n41, n66, n71, n75, n77, n78, SA, NSA, Sub-6	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n29, n30, n40, n41, n66, n78, 5G Ready
4G (FDD) Bands
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 66, 71	1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 66
4G (TDD) Bands
38, 39, 40, 41, 46, 48	38, 39, 40, 41
3G Bands
1, 2, 4, 5, 6, 8, 19	1, 2, 4, 5, 8
Data Speed
LTE-A, HSDPA+ (4G) 42.2 Mbit/s	LTE-A, HSDPA+ (4G) 42.2 Mbit/s
SIM type
Dual Nano SIM	Dual Nano SIM + eSIM

Regulatory Approval

FCC approval
	Date approved: Jun 26, 2023 FCC ID value: A3LSMF946U
Measured SAR
	Head: 1.16 W/kg Body: 1.07 W/kg Simultaneous Transmission: 1.57 W/kg

Alternative variants

With 512GB internal storage

Memory	512GB

With 1TB internal storage

Memory	1024GB
