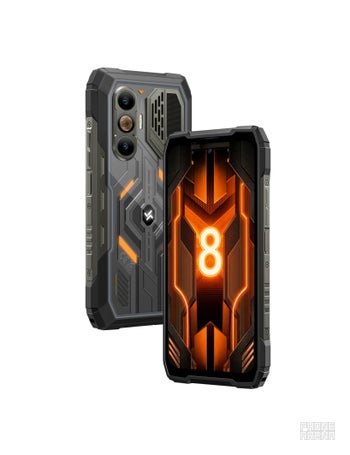

OSCAL PILOT 8

Full Specifications

Announced · Jul 17, 2026

Add us as a preferred source on Google Search

I want it 0 users

I have it 0 users

I had it 0 users

Popular Comparisons

The OSCAL PILOT 8 is most commonly compared with these phones:

Availability
Officially announced	Jul 17, 2026
Release date	Aug 10, 2026
Prices (MSRP)	12GB/256GB - $329 16GB/512GB

Design
Dimensions	7.04 x 3.36 x 0.70 inches 178.7 x 85.4 x 17.9 mm
Weight	13.72 oz / 389.0 g
Materials	Frame: Aluminum
Resistance	Water, Dust; IP69K; MIL-STD-810H
Biometrics	Optical in-screen fingerprint, Fingerprint (touch)
Keys	Right: Volume control, Lock/Unlock key
Colors	Black

Display
Size	6.8-inch, 86.00% screen-to-body
Type	AMOLED, 120Hz, 600 nits
Protection	CSG KK9
Features	Scratch-resistant glass

Hardware
System chip	Qualcomm Dragonwing Q6690 (4 nm)
Processor	Octa-core 1x Cortex-A715@3.35GHz 3x Cortex-A715@3.2GHz 4x Cortex-A510@2.2GHz
GPU	Adreno 7-series
Memory	12GB/256GB 16GB/512GB
Storage expansion	microSDXC up to 2048 GB
OS	Android (16)

Battery
Type	10000 mAh
Charging	Fast charging
Charge speed	Wired: 55.0W

Camera
Rear	Triple camera
Main camera	108 MP Sensor name: Samsung ISOCELL HM6 Aperture size: F1.9 Focal length: 24 mm Sensor size: 1/1.67" Pixel size: 0.64 μm
Second camera	20 MP (Night vision sensor)
Third camera	FLIR thermal camera
Flash	LED
Video recording	4K UHD (60 fps)
Front	50 MP Video capture: 4K UHD (30 fps)

Connectivity & Features
Bluetooth	6.0
WLAN	Wi-Fi 7 Wi-Fi Direct, Hotspot 802.11 a, b, g, n, ac, ax
USB	Type-C, USB 3.0
Sensors	Accelerometer, Gyroscope, Compass, Ambient light sensor, Proximity sensor
Location	GPS, Glonass, Galileo, BeiDou, QZSS, NavIC, Dual-band positioning
Other	NFC, Infrared

Multimedia
Headphones	No 3.5mm jack
Speakers	Earpiece, Multiple speakers

Cellular
5G Bands	n1, n2, n3, n5, n7, n8, n20, n26, n28, n38, n40, n41, n66, n77, n78
LTE Bands	1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 66
TDD Bands	34, 38, 39, 40, 41
3G Bands	1, 2, 4, 5, 6, 8, 19
Dual SIM	Yes
SIM type	Dual Nano SIM + eSIM

Regulatory Approval
Measured SAR	Head: 0.97 W/kg Body: 1.06 W/kg
