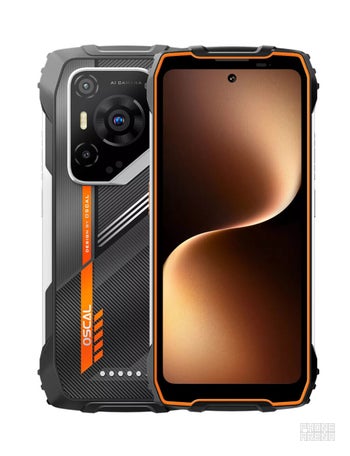

OSCAL PILOT 3

Full Specifications

Released · June 2025

6.8-inch · 2460x1080px

Triple camera

7500 mAh

12GB · 256GB

MediaTek Dimensity 6300

Android 15

Be the first to review this phone

I want it 0 users

I have it 0 users

I had it 0 users

Deals

Check price

Check price

Popular Comparisons

The OSCAL PILOT 3 is most commonly compared with these phones:

Design
Dimensions	7.17 x 3.39 x 0.57 inches 182.2 x 86 x 14.5 mm
Weight	12.59 oz / 357.0 g
Resistance	Water, Dust; IP69K; MIL-STD-810 certified
Biometrics	Fingerprint (touch)
Keys	Right: Volume control, Lock/Unlock key
Colors	Black, Orange

Display
Size	6.8-inch, 69.61% screen-to-body
Type	IPS LCD, 120Hz, 750 nits
Resolution	2460x1080px, 20:9 ratio, 396 PPI

Hardware
System chip	MediaTek Dimensity 6300 MT6835 (6 nm)
Processor	Octa-core 2x2.4GHz Cortex-A76 6x2.0GHz Cortex-A55
GPU	Mali-G57 MC2
Memory	12GB (LPDDR4X)/256GB (UFS 2.2)
Storage expansion	microSDXC up to 1024 GB
OS	Android (15)

Battery
Type	7500 mAh
Charge speed	Wired: 33.0W

Camera
Rear	Triple camera
Main camera	50 MP Aperture size: F1.8 Sensor size: 1/2.76"
Second camera	20 MP (Night vision sensor) Sensor size: 1/2.8"
Third camera	2 MP (Depth information)
Flash	LED
Video recording	Yes
Front	32 MP

Connectivity & Features
Bluetooth	5.2
WLAN	a,b,g,n,ac Wi-Fi Direct, Hotspot 802.11 a, b, g, n, ac
USB	Type-C
Sensors	Accelerometer, Gyroscope, Compass, Ambient light sensor, Proximity sensor
Location	GPS, A-GPS, Glonass, Galileo, BeiDou, QZSS, Cell ID, Wi-Fi positioning
Other	NFC

Multimedia
Headphones	3.5mm jack
Speakers	Earpiece, Multiple speakers
Screen mirroring	Wireless screen share
Radio	FM, Stereo, RDS
Additional microphone(s)	Noise cancellation

Cellular
5G Bands	n1, n3, n5, n7, n8, n20, n28, n30, n38, n40, n41, n77, n78, n79
LTE Bands	1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 66
TDD Bands	34, 38, 39, 40, 41
3G Bands	1, 2, 4, 5, 8
Data Speed	LTE-A, HSDPA+ (4G) 42.2 Mbit/s
Dual SIM	Yes
SIM type	Nano SIM
