Updated : Dec 16, 2019, 12:11 PM

HTC U11

Full Specifications

Released · May 18, 2017

5.5-inch · 2560x1440px

8.2

Read HTC U11 Review

9.8

Read All User Reviews (20)

I want it 22 users

I have it 16 users

I had it 9 users

Popular Comparisons

The HTC U11 is most commonly compared with these phones:

Availability
Officially announced	May 16, 2017
Prices (MSRP)	$650

Design
Dimensions	6.06 x 2.99 x 0.31 inches 153.9 x 75.9 x 7.9 mm
Weight	5.96 oz (169.0 g)
Materials	Back: Glass Frame: Metal
Resistance	Water, Dust; IP67
Biometrics	Fingerprint (touch)
Features	Notification light, Touch sensitive control keys
Keys	Right: Volume control, Lock/Unlock key
Colors	Black, Silver, Blue, White

Display
Size	5.5-inch, 71.34% screen-to-body
Type	S-LCD 5
Resolution	2560x1440px, 16:9 ratio, 534 PPI
Protection	Corning Gorilla Glass 5

PhoneArena Display Test
Bright Max (20 APL)	Untested
Bright Min	7 (Poor)
Learn more on our PhoneArena Display Test Results page.

Hardware
System chip	Snapdragon 835 MSM8998 (10 nm)
Processor	Octa-core 2450 MHz Kryo 280
GPU	Adreno 540
Memory	4GB (LPDDR4)/64GB 6GB/128GB
Storage expansion	microSDXC up to 128 GB
OS	Android (9.0 Pie, 8.0 Oreo, 7.1 Nougat)
This device has different variants: View all

Battery
Type	3000 mAh, Li - Ion
Charging	Qualcomm Quick Charge 3.0

Camera
Rear	Single camera
Main camera	12 MP (OIS, PDAF, CMOS image sensor, BSI sensor) Aperture size: F1.7 Focal length: 26 mm Sensor size: 1/2.55" Pixel size: 1.4 μm
Flash	Dual LED
Video recording	4K UHD (30 fps), 1080p (120 fps) Time-lapse video, Hyperlapse, EIS, Video calling, Video sharing
Front	16 MP (HDR) Video capture: 1080p

Connectivity & Features
Bluetooth	5.0
WLAN	a,b,g,n,ac,dual-band Wi-Fi Direct, Hotspot 802.11 a, b, g, n, ac
USB	Type-C, USB 3.1
Sensors	Accelerometer, Gyroscope, Compass, Ambient light sensor, Proximity sensor
Location	GPS, A-GPS, Glonass, BeiDou
Other	NFC, UMA (Wi-Fi Calling), Tethering, Computer sync, OTA sync

Multimedia
Headphones	No 3.5mm jack
Speakers	Earpiece, Multiple speakers
Features	Album art cover, Background playback
Screen mirroring	DLNA,Wireless screen share
Additional microphone(s)	Noise cancellation, Video recording

Cellular
4G (FDD) Bands	1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 25, 26, 28
4G (TDD) Bands	41
3G Bands	5, 8, 4, 2, 1
Data Speed	LTE-A Pro Cat 16 (1000/150 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
SIM type	Nano SIM
VoLTE	Yes
This device has different variants: View all

Alternative variants

International version

Differences from the main variant:
4G (FDD) Bands	1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 28, 32
4G (TDD) Bands	38, 39, 40, 41
3G Bands	5, 8, 2, 1
Dual SIM	Yes

with 128 GB storage

Differences from the main variant:
Memory	6GB/128GB

Despite our efforts to provide full and correct HTC U11 specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please

LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.

Overall User Rating

(20 reviews)

9.8

Build quality

9.7

Camera quality

9.8

Performance

Display

9.5

Battery life and charging

9.4

Related News

If you happen to still own the HTC U11, which you bought from Sprint, you'll be happy to know that your phone will soon receive a major Android update. No, it's not the most recent Android 10 update, but it's the closest thing you'll get – Android 9 ...

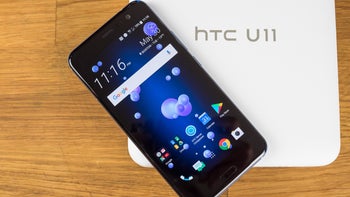

Sprint finally rolls out HTC U11 Android 9 Pie update

HTC was at one point among the first companies to release major Android OS updates once Google made them available. Unfortunately, things drastically changed for the Taiwanese company, which not even capable of updating its flagship smartphones, let ...

HTC U11 Android 9.0 Pie rolling out across Europe

Despite keeping its fans waiting for a painfully long time, HTC somehow still managed to mess up the official Android Pie update for the high-end U11. The 2017-released 5.5-inch smartphone was treated to the long overdue UI makeover in Taiwan less th...

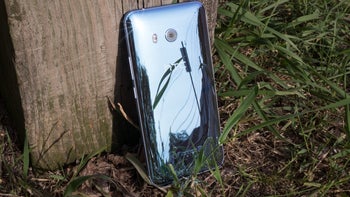

HTC U11 starts receiving Android Pie update again, no new bricking reported (yet)
