  • Big display (5.2 inches)
  • Water-resistant phone
  • High-resolution camera (16 megapixels)
  • Lots of RAM (4 GB RAM)
  • Dual SIM card support


No cons

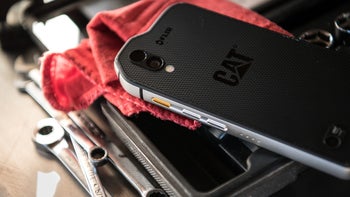

From the first sight you know that this phone is tough: it is constructed with an aluminum-reinforced frame and meets military-grade standards such as Spec 810G rating. And it's also IP68 dust and water resistant, and can survive 1.8-meter drops on concrete.But this phone not just about its super-tough construction: it has three awesome super powers. The first one is a FLIR thermal imaging camera. Additionally, the Cat S61 features an innovative Volatile Organic Compound (VOC) sensor. Last, but not least, the Cat S61 features... lasers! A tiny laser beam comes out of the back of the phone and can measure things of up to 10 meters distance.

Do you ...?



  • Device type:
    • Smart phone
  • OS:
    • Android (8.0)
  • Dimensions:
    • 5.91 x 2.99 x 0.51 inches (150 x 76 x 13 mm)
  • Materials:
    • Accents: Aluminum
  • Rugged:
      • Water, Dust, Shock resistant
    • IP certified:

      IP certified - The IP code indicates the degree of protection against dust and water. The first number represents dust protection, while the second represents water protection. In IP67, for example, 6 means a completely dust-tight device, while 7 means the device can stay immersed in up to 1 meter of water for up to 30 minutes. In IP68, a higher level of water protection is expected, but exact numbers aren't specified: both depth and continuance are specified by the manufacturer on per device basis.

      • IP 68
    • MIL-STD-810 certified:
      • Yes
  • Colors:
    • Black


  • Physical size:
    • 5.2 inches
  • Resolution:
    • 1080 x 1920 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 424 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • IPS LCD
  • Screen-to-body ratio:

    Screen-to-body ratio - Shows what part of the frontal area of a phone its screen occupies.

    • 65.39 %
  • Features:
    • Scratch-resistant glass (Corning Gorilla Glass 5), Ambient light sensor, Proximity sensor


  • Camera:
      • 16 megapixels
    • Flash:
      • Dual LED
    • Hardware Features:
      • Autofocus (Phase detection)
    • Software Features:
      • Touch to focus, Face detection, Digital zoom, Geo tagging
    • Shooting Modes:
      • Panorama
  • Camcorder:
      • 3840x2160 (4K) (30 fps)
    • Features:
      • Video calling, Video sharing
  • Front-facing camera:
      • 8 megapixels


  • System chip:

    System chip - Most modern handsets use an advanced chip that includes many of the device’s hardware modules like the processor, Wi-Fi, Bluetooth and sometimes even the wireless radio. This field shows what particular system chip (or System-on-a-Chip) is used in the phone.

    • Qualcomm Snapdragon 630 SDM630
  • Processor:

    Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.

    • Octa-core, 2200 MHz, ARM Cortex-A53, 64-bit, 14 nm
  • Graphics processor:

    Graphics processor - The graphics processor is important for the smooth operation of the system and especially in games and other applications that may involve complex graphics and animations.

      • Adreno 508
  • System memory:

    System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.

    • 4 GB RAM
  • Built-in storage:

    Built-in storage - Bigger storage capacity allows you to keep more content saved onto your device, such as more applications, photos or video. Games and video content typically take up the biggest amount of storage space.

    • 64 GB
  • Storage expansion:

    Storage expansion - Some handsets allow you to expand their storage capacity by using a memory expansion card – most often microSD. Expansion memory is mostly suitable for media storage, such as photo, video or music content.

      • up to 256 GB


  • Capacity:

    Capacity - The bigger, the better! However, battery capacity is not the only factor that has an effect on battery life. Those include the chipset in use, the software running on the device, as well as the consumer's unique usage pattern.

    • 4500 mAh


  • Screen mirroring:
    • Wireless screen share
  • Music player:
    • Filter by:
      • Album, Artist, Genre, Playlists
    • Features:
      • Album art cover, Background playback
  • Speakers:
    • Earpiece, Loudspeaker


  • GSM:
    • 850, 900, 1800, 1900 MHz
  • UMTS:
    • 850, 900, 1700/2100, 1900, 2100 MHz
  • LTE (FDD):
    • Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 25, 26, 28, 29, 66
  • Data:
    • LTE-A Cat 12/13 (600/150 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
  • Nano SIM:
    • Yes
  • Multiple SIM cards:
    • 2 slots

Phone features

  • Sensors:
      • Accelerometer, Gyroscope, Compass, Barometer
  • Notifications:
    • Haptic feedback, Music ringtones, Vibration, Flight mode, Silent mode, Speakerphone
  • Other features:
    • Voice dialing, Voice commands, Voice recording
specifications continue after the ad


  • Bluetooth:
      • Yes
  • Wi-Fi:
      • 802.11 b, g, n
    • Mobile hotspot:
      • Yes
  • USB:
      • Yes
    • Connector:
      • USB Type-C (reversible)
    • Features:
      • Mass storage device
  • Positioning:

    Positioning - This field shows the positioning systems supported by the device. The most common types are GPS and A-GPS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization.

    • GPS, A-GPS, Glonass, Galileo
  • Navigation:
    • Turn-by-turn navigation, Voice navigation
  • Other:
    • VoIP, Tethering, Computer sync, OTA sync


  • Scheduled release:

    Scheduled release - Shows when is the particular phone scheduled to be made available to the public in North America

    • Q2 2018

Shopping information

  • MSRP price:
    • € 899 / $ 1000

To see the full specifications with in-depth details click here.

Despite our efforts to provide full and correct CAT S61 specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.
