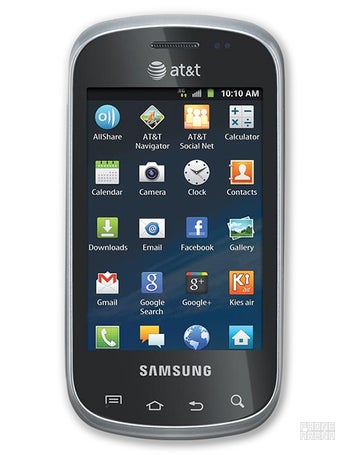

Samsung Galaxy Appeal

Posted:
May 29, 2012
Market status:
Released
Release date:
Jun 5, 2012
  • Fingerprint
  • Lightweight
  • Thin
  • LTE
  • Waterproof
  • NFC
  • Dual SIM

Display

Display size:

3.2 inches

Resolution:

320 x 480 pixels

Pixel density:

180 ppi

Technology:

TFT

Screen-to-body ratio:

47.21 %

Features:

Ambient light sensor, Proximity sensor

Camera

Rear:

Single camera

Main camera:

3 megapixels

Video recording:

Yes

Design

Dimensions:

4.41 x 2.27 x 0.56 inches (112 x 58 x 14 mm)

Weight:

4.30 oz (122 g)
the average is 6 oz (173 g)

Features:

Full keyboard

Colors:

Black

Hardware & Performance

System chip:

Qualcomm Snapdragon S1 MSM7225A

Processor:

Single core, 800 MHz, ARM Cortex-A5, 32-bit, 45 nm

GPU:

Adreno 200

RAM:

0.5 GB

ROM:

1800 MB

Storage expansion:

up to 32 GB

OS:

Android (2.3.6)

Battery

Capacity:

1300 mAh

Talk time:

7.00 hours
the average is 23 h (1393 min)

Stand-by time:

12.5 days (300 hours)
the average is 21 days (500 h)

Cellular

UMTS:

850, 1900, 2100 MHz

GSM:

850, 900, 1800, 1900 MHz

Connectivity

Bluetooth:

3.0

Wi-Fi:

Yes

USB:

USB 2.0

Connector:

microUSB

Features:

Mass storage device, USB charging

Location:

GPS

Other:

Computer sync, OTA sync

Phone features

Sensors:

Accelerometer

Notifications:

Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode

Hearing aid compatibility:

M3

Other features:

Voice dialing, Voice commands, Voice recording, TTY/TDD

Multimedia

Screen mirroring:

DLNA

Video playback:

Features:

Zoom, Stretch to fullscreen

Speakers:

Earpiece, Loudspeaker

Headphones connector:

3.5mm

Regulatory Approval

FCC approval:

Date approved:

Jan 27, 2012

FCC ID value:

A3LSGHI827 link

FCC measured SAR:

Head:

0.36 W/kg

Body:

0.76 W/kg

Simultaneous Transmission:

0.83 W/kg

Wireless Router:

0.76 W/kg

This device is also known as Samsung SGH-I827

US CARRIER AVAILABILITY

Discontinued

Pros

  • Hardware QWERTY keyboard

Cons

  • Thick body (0.56 inches)
  • The camera lacks autofocus
  • The camera lacks flash
  • No front-facing camera
  • Too little RAM
  • Low pixel density screen (180 ppi)

Description

The Samsung Galaxy Appeal is an Android smartphone with side-sliding form factor. Some of its features include a 3.2” HVGA display, 800MHz single-core processor, 3-megapixel camera, video recording, 1,300 mAh battery, microSD card slot, and Android 2.3 Gingerbread. Naturally, its 4-row landscape style QWERTY keyboard is its other main attraction.
