Updated : Apr 19, 2021, 9:04 AM

Motorola Moto E5

Full Specifications

Released · May 01, 2018

Be the first to review this phone

I want it 1 user

I have it 2 users

I had it 1 user

Popular Comparisons

The Motorola Moto E5 is most commonly compared with these phones:

Design
Dimensions	6.12 x 2.84 x 0.35 inches 155.4 x 72.2 x 8.95 mm
Weight	6.14 oz (174.0 g)
Materials	Back: Plastic
Biometrics	Fingerprint (touch)
Keys	Right: Camera shutter, Lock/Unlock key
Colors	Gray
This device has different variants: View all

Display
Size	5.7-inch
Resolution	1440x720px, 18:9 ratio, 282 PPI
Technology	IPS LCD
Screen-to-body	74.77 %
Features	Scratch-resistant glass (Corning Gorilla Glass), Ambient light sensor, Proximity sensor

PhoneArena Display Test
Bright Max (20 APL)	Untested
Bright Min	3 (Average)
Learn more on our PhoneArena Display Test Results page.

Hardware
System chip	Qualcomm Snapdragon 425 MSM8917 (28 nm)
Processor	Quad-core 1400 MHz ARM Cortex-A53
GPU	Adreno 308
RAM	2GB (LPDDR3)
Internal storage	16GB
Storage expansion	microSDXC up to 128 GB
OS	Android (8.0 Oreo)

Battery
Capacity	4000 mAh
Type	Li - Ion
Charging	Motorola TurboPower

Camera
Rear	Single camera
Main camera	8 MP (Autofocus) Aperture size: F2.0 Sensor size: 1/4" Pixel size: 1.12 μm
Flash	LED
Video recording	1920x1080 (Full HD) (30 fps), 1280x720 (HD) (30 fps), 720x480 (DVD) (30 fps) EIS, Video calling, Video sharing
Front	5 MP (Flash), Video capture: 1920x1080 (Full HD)
This device has different variants: View all

Connectivity & Features
Bluetooth	4.2
WLAN	802.11 b,g,n Wi-Fi Direct, Hotspot
USB	microUSB, USB 2.0
Location	GPS, A-GPS, Glonass
Sensors	Accelerometer, Gyroscope, Compass
Other	NFC, VoIP, Tethering, Computer sync, OTA sync

Multimedia
Headphones	3.5mm jack
Speakers	Earpiece, Loudspeaker
Features	Album art cover, Background playback
Screen mirroring	Wireless screen share
Radio	FM
Additional microphone(s)	Noise cancellation

Cellular
4G (FDD)	Bands 1(2100), 2(1900), 4(AWS-1), 5(850), 8(900), 12(700 a), 13(700 c), 66(AWS-3), 71(600)
3G	Bands 1(2100), 2(1900), 4(1700/2100), 5(850), 8(900)
Data Speed	LTE Cat 4 (150/50 Mbit/s), HSPA, HSUPA, UMTS
SIM type	Nano SIM
This device has different variants: View all

Buyers information
In The Box	Charger and USB cable

Availability
Officially announced	Apr 19, 2018

Despite our efforts to provide full and correct Motorola Moto E5 specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please

LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.

Alternative variants

Dual SIM, no NFC

Differences from the main variant:
Dual SIM	Yes

International version

Differences from the main variant:
Rear	Single camera
Main camera	13 MP (PDAF)
Colors	Gold, Gray
4G (FDD)	Bands 1(2100), 3(1800), 5(850), 7(2600), 8(900), 20(800 DD)
4G (TDD)	Bands 38(2600), 40(2300)
3G	Bands 5(850), 8(900), 2(1900), 1(2100)

Carrier Availability

Discontinued

Tracfone

News

The men in the lead pajamas are going to be investigating after the Chicago Tribune tested several smartphones for radiofrequency (RF) radiation. The newspaper discovered something that might be alarming; RF radiation emanating from the Apple iPhone ...

FCC to investigate after the Apple iPhone 7 and other models spew RF radiation in tests

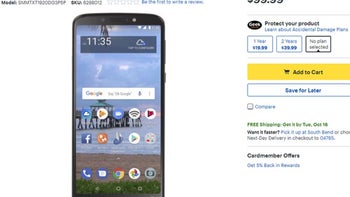

Some of the Moto E5 series phones have already been launched in the United States like the Moto E5 Plus and Moto E5 Play. However, the Android Go-powered Moto E5 only hit the shelves recently.You can't just buy one from Motorola's online store, but i...

Affordable Moto E5 with Android Go now available in the US

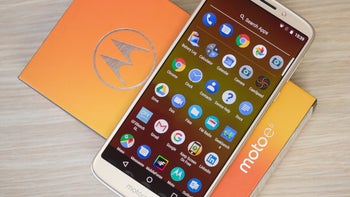

The new Moto E5 is a new, dirt cheap phone that costs less than a leather band for the Apple Watch, yet still offers a decent performance, a big battery and a clean Android experience. So… should you consider it?We have been using the phone fo...

Moto E5 hands-on: big battery and clean Android on the cheap

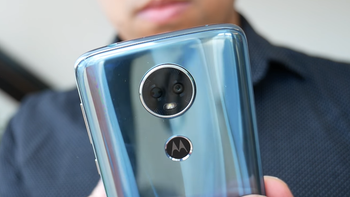

Motorola isn’t promising any major OS upgrades for its newly-announced Moto E5 series. The company launched the new line of devices yesterday alongside a trio of Moto G6 smartphones. Despite guaranteeing at least one major update for the latter...
