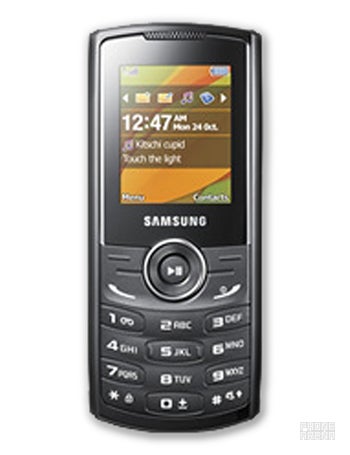

Samsung E2230

Samsung E2230
1.77"
128 x 160 pixels
0.3 MP VGA
BATTERY: 1000 mAh
MEMORY: 0.004 GB + MicroSD
Posted: Mar 21, 2011
Market status: Released
Release date: Jun 1, 2011
Features: Fingerprint Lightweight Thin LTE Rugged NFC Dual SIM

Pros

No pros

Cons

  • Does not support automatic screen brightness

Share

embed

Description

Samsung E2230 is a basic candybar GSM phone with FM radio. It has 1.77" TFT display, VGA camera, Bluetooth, 3.5mm headset jack, music player and supports up to 8GB microSD memory cards.

Do you ...?




Compare

Design

  • Device type:
    • Basic phone
  • Dimensions:
    • 4.30 x 1.81 x 0.59 inches (109.2 x 46 x 14.9 mm)
  • Weight:
    • 2.79 oz (79 g)
      the average is 5.3 oz (150 g)
  • Features:
    • Numeric keypad, Soft keys, D-Pad
  • Colors:
    • Black

Display

  • Physical size:
    • 1.8 inches
  • Resolution:
    • 128 x 160 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 116 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • TFT
  • Screen-to-body ratio:
    • 19.64 %

Camera

  • Camera:
      • 0.3 megapixels VGA
    • Software Features:
      • Digital zoom, Self-timer
    • Settings:
      • White balance presets
    • Shooting Modes:
      • Night mode, Scenes, Effects
  • Camcorder:
      • 220x176 (15 fps)

Hardware

  • Built-in storage:
    • 0.004 GB
  • Storage expansion:
    • microSD, microSDHC up to 8 GB

Battery

  • Capacity:
    • 1000 mAh
  • Type:
    • User replaceable, Li - Ion
  • Talk time:
    • 14.60 hours
      the average is 15 h (876 min)
  • Stand-by time:
    • 27.5 days (660 hours)
      the average is 16 days (377 h)
  • Music playback:
    • 9.50 hours

Multimedia

  • Radio:
      • FM, RDS, Recording option
  • Speakers:
    • Earpiece, Loudspeaker

Cellular

  • GSM:
    • 900, 1800 MHz

Phone features

  • Notifications:
    • Music ringtones (MP3), Polyphonic ringtones (64 voices), Vibration, Flight mode, Silent mode, Speakerphone
  • Other features:
    • Voice dialing, Voice recording
specifications continue after the ad

Connectivity

  • Bluetooth:
      • 2.1, EDR
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • Mass storage device, USB charging
  • Other:
    • Computer sync

Regulatory Approval

  • EU SAR:
    • Head:
      • 0.86 W/kg

To see the full specifications with in-depth details click here.


Alternative variants

We list only the specs that are different than the main variant

Samsung E2230L

differences:

  • GSM:
    • 850, 1900 MHz
  • FCC approval:

    FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.

    • Date approved:

      Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission

      • 02 Aug 2011
      • FCC ID value:

        FCC ID value - Shows the FCC Identifying value of the particular phone

        A3LGTE2230L link
  • FCC measured SAR:

    FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).

    • Head:
      • 0.95 W/kg
    • Body:
      • 0.44 W/kg

Despite our efforts to provide full and correct Samsung E2230 specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.
