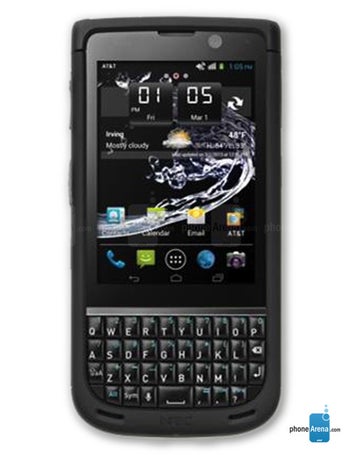

NEC Terrain

NEC Terrain
3.1"
480 x 640 pixels
5 MP
0.3 MP VGA front
Qualcomm Snapdragon S4 Plus
Dual-core, 1500 MHz
RAM: 1 GB
MEMORY: 8 GB + MicroSD
BATTERY: 1900 mAh
Posted: Jun 20, 2013
Market status: Released
Features: Fingerprint Lightweight Thin LTE Rugged NFC Dual SIM

US carrier availability

Discontinued: AT&T

Pros

  • Hardware QWERTY keyboard
  • Water-resistant phone

Cons

  • Too little RAM memory (1 GB RAM)
  • Low pixel density screen (258 ppi)
  • Low-resolution camera (5 megapixels)

Share

embed

Description

The NEC Terrain is a rugged Android 4.0-driven device, offering a physical QWERTY keyboard along with its 3.1'' touchscreen display, 1.5 GHz dual-core CPU, 8GB of built-in storage which can reach up to 32GB via microSD, and MIL-STD-810 & IP67 certification.

Do you ...?




Compare

Design

  • Device type:
    • Smart phone
  • OS:
    • Android (4.0)
  • Dimensions:
    • 5.02 x 2.54 x 0.57 inches (128 x 65 x 14 mm)
  • Weight:
    • 6.06 oz (172 g)
      the average is 5.4 oz (156 g)
  • Features:
    • Full keyboard
  • Rugged:
      • Water, Dust, Shock resistant
    • IP certified:

      IP certified - The IP code indicates the degree of protection against dust and water. The first number represents dust protection, while the second represents water protection. In IP67, for example, 6 means a completely dust-tight device, while 7 means the device can stay immersed in up to 1 meter of water for up to 30 minutes. In IP68, a higher level of water protection is expected, but exact numbers aren't specified: both depth and continuance are specified by the manufacturer on per device basis.

      • IP 67
    • MIL-STD-810 certified:
      • Yes
  • Colors:
    • Black

Display

  • Physical size:
    • 3.1 inches
  • Resolution:
    • 480 x 640 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 258 ppi
  • Screen-to-body ratio:

    Screen-to-body ratio - Shows what part of the frontal area of a phone its screen occupies.

    • 36.18 %
  • Features:
    • Scratch-resistant glass (Corning Gorilla Glass 2), Ambient light sensor, Proximity sensor

Camera

  • Camera:
      • 5 megapixels
    • Flash:
      • LED
    • Hardware Features:
      • Autofocus
  • Camcorder:
      • 1280x720 (720p HD)
  • Front-facing camera:
      • 0.3 megapixels VGA

Hardware

  • System chip:

    System chip - Most modern handsets use an advanced chip that includes many of the device’s hardware modules like the processor, Wi-Fi, Bluetooth and sometimes even the wireless radio. This field shows what particular system chip (or System-on-a-Chip) is used in the phone.

    • Qualcomm Snapdragon S4 Plus MSM8960
  • Processor:

    Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.

    • Dual-core, 1500 MHz, Krait
  • Graphics processor:

    Graphics processor - The graphics processor is important for the smooth operation of the system and especially in games and other applications that may involve complex graphics and animations.

      • Adreno 225
  • System memory:

    System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.

    • 1 GB RAM
  • Built-in storage:

    Built-in storage - Bigger storage capacity allows you to keep more content saved onto your device, such as more applications, photos or video. Games and video content typically take up the biggest amount of storage space.

    • 8 GB
  • Storage expansion:

    Storage expansion - Some handsets allow you to expand their storage capacity by using a memory expansion card – most often microSD. Expansion memory is mostly suitable for media storage, such as photo, video or music content.

    • microSD, microSDHC up to 32 GB

Battery

  • Capacity:

    Capacity - The bigger, the better! However, battery capacity is not the only factor that has an effect on battery life. Those include the chipset in use, the software running on the device, as well as the consumer's unique usage pattern.

    • 1900 mAh
  • Type:
    • User replaceable, Li - Ion
  • Talk time:
    • 10.00 hours
      the average is 20 h (1202 min)
  • Stand-by time:
    • 14.5 days (348 hours)
      the average is 19 days (459 h)
  • Music playback:
    • 21.50 hours

Multimedia

  • Music player:
    • Filter by:
      • Album, Artist, Playlists
    • Features:
      • Album art cover, Background playback
  • Radio:
      • FM
  • Speakers:
    • Earpiece, Loudspeaker

Cellular

  • GSM:
    • 850, 900, 1800, 1900 MHz
  • UMTS:
    • 850, 1900, 2100 MHz
  • LTE (FDD):
    • Bands 4, 17
  • Data:
    • LTE, UMTS

Phone features

  • Sensors:
      • Accelerometer, Compass
  • Notifications:
    • Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
  • Hearing aid compatibility:
      • M3, T3
  • Other features:
    • Voice dialing, Voice commands, Voice recording, Push-to-Talk
specifications continue after the ad

Connectivity

  • Bluetooth:
      • 4.0
  • Wi-Fi:
      • 802.11 b, g, n
    • Mobile hotspot:
      • Yes
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • Mass storage device, USB charging
  • Positioning:

    Positioning - This field shows the positioning systems supported by the device. The most common types are GPS and A-GPS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization.

    • GPS, A-GPS
  • Navigation:
    • Yes
  • Other:
    • NFC, Tethering, Computer sync, OTA sync

Regulatory Approval

  • FCC measured SAR:

    FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).

    • Head:
      • 0.70 W/kg
    • Body:
      • 0.57 W/kg

To see the full specifications with in-depth details click here.


Despite our efforts to provide full and correct NEC Terrain specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.


If you are interested in using our specs commercially, check out our Phone specs database licensing page.
