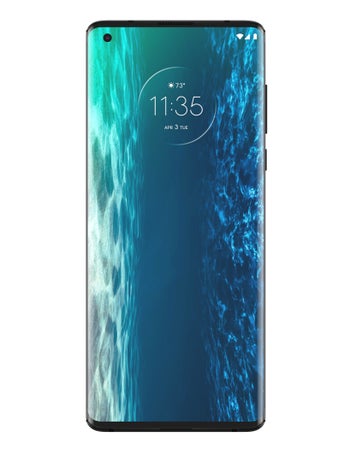

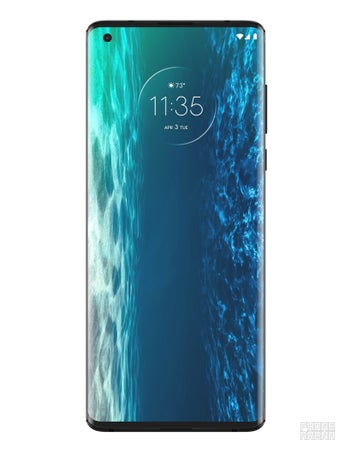

Motorola edge

Full Specifications

Released · May 14, 2020

6.7-inch · 2340x1080px

Quad camera

4500 mAh

6GB · 256GB

Qualcomm Snapdragon 765

Android 10

7.0

Read Motorola edge Review

9.0

Read All User Reviews (1)

I want it 0 users

I have it 0 users

I had it 0 users

Deals

$500 $200 $350 BestBuyU.S

Popular Comparisons

The Motorola edge is most commonly compared with these phones:

•

  Motorola edge
  vs


  Motorola Edge (2021)
•

  Motorola edge
  vs


  T-Mobile Revvl 4
•

  Motorola edge
  vs


  realme 7
•

  Motorola edge
  vs


  Google Pixel 5a
•

  Motorola edge
  vs


  Motorola edge+

Design
Dimensions	6.36 x 2.80 x 0.37 inches 161.64 x 71.1 x 9.29 mm
Weight	6.63 oz (188.0 g)
Materials	Back: Plastic Frame: Aluminum
Resistance	Splash; IP52
Biometrics	2D Face unlock, Optical in-screen fingerprint
Keys	Right: Volume control, Lock/Unlock key
Colors	Solar black, Midnight magenta

Display
Size	6.7-inch
Resolution	2340x1080px, 19.5:9 ratio, 385 PPI
Technology	OLED
Refresh rate	90Hz
Screen-to-body	95.91 %
Features	HDR support, Scratch-resistant glass (Corning Gorilla Glass 5), Ambient light sensor, Proximity sensor

PhoneArena Display Test
Bright Max (20 APL)	Untested
Bright Min	2.2 (Average)
Learn more on our PhoneArena Display Test Results page.

Hardware
System chip	Qualcomm Snapdragon 765 SM7250-AA (7 nm)
Processor	Octa-core 2300 MHz Kryo 475
GPU	Adreno 620
RAM	6GB (LPDDR4)
Internal storage	256GB (UFS 2.1)
Storage expansion	microSDXC up to 1000 GB
OS	Android (10)
This device has different variants: View all

Battery
Capacity	4500 mAh
Type	Li - Polymer
Charging	Motorola TurboPower
Charge speed	Wired: 18.0W

PhoneArena Battery Test
Battery Life Estimate:	Untested
Browsing:	Untested
Gaming:	7h 36min
Video:	10h 29min
Learn more on our PhoneArena Battery Test Results page.

Camera
Rear	Quad camera
Main camera	64 MP (PDAF) Aperture size: F1.8 Sensor size: 1/1.7" Pixel size: 0.8 μm
Second camera	16 MP (Ultra-wide) Aperture size: F2.2 Focal Length: 13 mm Pixel size: 1.0 μm
Third camera	8 MP (Telephoto) Optical zoom: 2.0x Aperture size: F2.4 Pixel size: 1.12 μm
Fourth camera	ToF 3D depth sensing
Flash	LED
Video recording	3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps) Time-lapse video, Hyperlapse, EIS
Front	25 MP (EIS, HDR), Video capture: 1920x1080 (Full HD)

Connectivity & Features
Bluetooth	5.1
WLAN	802.11 a,b,g,n,ac,dual-band Wi-Fi Direct, Hotspot
USB	Type-C, USB 2.0
Hearing aid compatible	M3/T3
Location	GPS, A-GPS, Glonass, Galileo, BeiDou, Cell ID, Wi-Fi positioning
Sensors	Accelerometer, Gyroscope, Compass
Other	NFC

Multimedia
Headphones	3.5mm jack
Speakers	Earpiece, Multiple speakers
Screen mirroring	Wireless screen share
Radio	FM
Additional microphone(s)	Noise cancellation

Cellular
5G	Bands n2, n5, n12, n25, n41, n66, n71, Sub-6
4G (FDD)	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 17(700 b), 20(800 DD), 25(1900+), 26(850+), 66(AWS-3), 71(600)
4G (TDD)	Bands 38(2600), 39(1900+), 40(2300), 41(2600+)
3G	Bands 1(2100), 2(1900), 4(1700/2100), 5(850), 8(900)
Data Speed	LTE-A Pro Cat 16 (1000/150 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
Dual SIM	Yes
SIM type	Nano SIM
HD Voice	Yes
This device has different variants: View all

Regulatory Approval
FCC approval	Date approved: Jun 18, 2020 FCC ID value: IHDT56YU1
Measured SAR	Head: 0.45 W/kg Body: 1.45 W/kg Simultaneous Transmission: 1.59 W/kg Wireless Router: 1.48 W/kg Phablet: 3.36 W/kg

Buyers information
MSRP	$ 700
In The Box	Headset, 15W charger, USB Type-C cable, guides, SIM tool, Protective back cover

Availability
Officially announced	Apr 22, 2020

Despite our efforts to provide full and correct Motorola edge specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please

LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.

Alternative variants

for Europe

Differences from the main variant:
Internal storage	128GB
5G	Bands n1, n3, n7, n28, n38, n78, Sub-6
4G (FDD)	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 17(700 b), 20(800 DD), 26(850+), 28(700 APT), 32(1500 L-band), 66(AWS-3)
4G (TDD)	Bands 38(2600), 40(2300), 41(2600+)

News

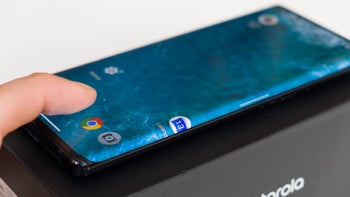

Amazon knocks the absolutely gorgeous OG Motorola Edge down to a new all-time low price

Inaugurated roughly two and a half years ago, the Motorola Edge family has grown to be... rather confusing of late, including an assortment of subtly different mid-range and high-end handsets (with mostly flat screens) for a variety of markets around...

-$450

A whole bunch of mid-range Motorola phones are on sale at crazy low prices

Just in case you might still be wondering what Motorola is doing right and other smartphone vendors... not so much of late, Amazon appears to have kicked off yet another extensive sale on many of the fast-growing brand's popular Android mid-rangers.A...

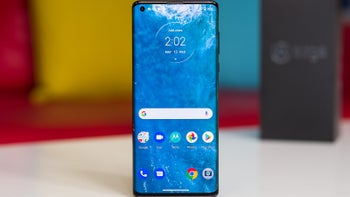

Motorola's 2020 and 2021 Edge beauties are on sale at lower than ever prices
