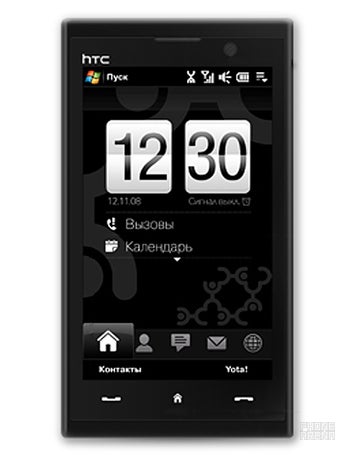

HTC MAX 4G Specs


HTC MAX 4G is the first GSM/WiMAX phone to come to the market. WiMAX is a 4G network, for high-speed internet access. The MAX 4G is similar to the Touch HD in its specs, with 3.8" WVGA display and 3.2-megapixel camera. It is announced for the Russian market only.

This device is also known as HTC T8290, HTC Quartz


  • The touchscreen uses resistive technology, which is not responsive
  • Thick body (0.55 inches)

Specs Compare


Size: 3.8 inches
Resolution: 800 x 480 pixels, 246 PPI
Technology: TFT
Screen-to-body: 57.47 %
Colors: 65 536
Touchscreen: Resistive
Features: Proximity sensor


System chip: Qualcomm ESM7206A
Processor: Single core, 528 MHz
RAM: 0.3GB
ROM: 256 MB
Internal storage: 8GB
Storage expansion: microSDHC
Device type: Smartphone
OS: Windows Mobile Professional (6.1)


Capacity: 1500 mAh
Type: Li - Polymer, User replaceable


Rear: Single camera
Main camera: 3.2 MP (Autofocus)
Video recording: Yes
Features: Video calling
Front: Yes
Dimensions: 4.47 x 2.48 x 0.55 inches (113.5 x 63.1 x 13.9 mm)
Weight: 5.33 oz (151.0 g)
Features: Stylus
Keys: Left: Volume control


Data Speed: WiMAX


Radio: FM

Connectivity & Features

Bluetooth: 2.0, EDR
Wi-Fi: 802.11 b, g
USB: miniUSB
Location: GPS
Sensors: Accelerometer
Other: Computer sync, VoIP

Phone features

Notifications: Music ringtones (MP3), Polyphonic ringtones (40 voices), Vibration, Phone profiles, Speakerphone
Other features: Voice dialing, Voice commands, Voice recording

Regulatory Approval

FCC approval:
Date approved: Jun 22, 2009
FCC ID value: NM8QUAR100
Measured SAR:
Head: 0.26 W/kg
Measured in: 1900 MHz
Body: 0.28 W/kg
Measured in: 1900 MHz


Officially announced: Nov 13, 2008
