Moto X (2014) vs Sony Xperia Z3 vs Samsung Galaxy S5: specs and size comparison

12comments
Moto X (2014) vs Sony Xperia Z3 vs Samsung Galaxy S5: specs and size comparison
After a customary leaks-based hype build-up, the new Motorola Moto X is finally here, and it would appear that, specs wise, the rumors were right on the money for a very big part. The second Moto X in history packs flagship-worthy hardware, though some will, of course, be quick to point out that it's not on the bleeding edge.

And it's true. The Moto X doesn't pack the latest Snapdragon 805, and it "only" has 2GB of RAM while pretty much all of its competitors have 3GB. But is that a really big deal? Not really, especially since Motorola is very conservative with its additions to the mostly-stock Android software loaded on its devices, including the X. What's more, the current package is, without a doubt, absolutely capable of delivering you top notch, no-compromise user experience. The only part of the equation we're worried about is the 2300 mAh battery -- it honestly is small by today's standards, but we'll have to test it out before we're sure it falls short of what the competition has to offer.

Speaking of the competition, how does the new Moto X compare with the equally new Sony Xperia Z3 and the mighty Samsung Galaxy S5, specs wise? Time to find out!

Motorola Moto X (2014)
Dimensions

5.54 x 2.85 x 0.39 inches

140.8 x 72.4 x 9.9 mm

Weight

5.08 oz (144 g)

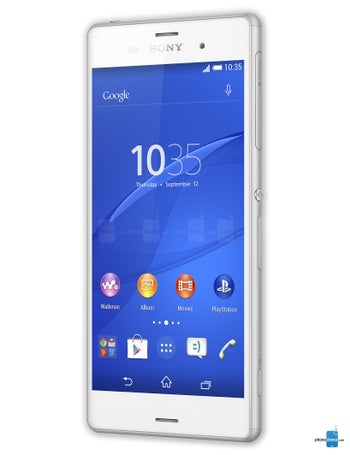

Sony Xperia Z3
Dimensions

5.75 x 2.83 x 0.29 inches

146 x 72 x 7.3 mm

Weight

5.36 oz (152 g)

Samsung Galaxy S5
Dimensions

5.59 x 2.85 x 0.32 inches

142 x 72.5 x 8.1 mm

Weight

5.11 oz (145 g)

Motorola Moto X (2014)
Dimensions

5.54 x 2.85 x 0.39 inches

140.8 x 72.4 x 9.9 mm

Weight

5.08 oz (144 g)

Sony Xperia Z3
Dimensions

5.75 x 2.83 x 0.29 inches

146 x 72 x 7.3 mm

Weight

5.36 oz (152 g)

Samsung Galaxy S5
Dimensions

5.59 x 2.85 x 0.32 inches

142 x 72.5 x 8.1 mm

Weight

5.11 oz (145 g)

See the full Motorola Moto X (2014) vs Sony Xperia Z3 vs Samsung Galaxy S5 size comparison or compare them to other phones using our Size Comparison tool.


Motorola Moto X (2014) Sony Xperia Z3 Samsung Galaxy S5

Design

Dimensions
5.54 x 2.85 x 0.39 inches
140.8 x 72.4 x 9.9 mm
5.75 x 2.83 x 0.29 inches
146 x 72 x 7.3 mm
5.59 x 2.85 x 0.32 inches
142 x 72.5 x 8.1 mm
Weight
5.08 oz (144.0 g) 5.36 oz (152.0 g) 5.11 oz (145.0 g)
Materials
Back: Plastic Back: Glass
Frame: Metal
Back: Plastic
Resistance
Splash Water, Dust; IP68 Water, Dust; IP67
Biometrics
Fingerprint (swipe)
Features
Touch sensitive control keys, Interchangeable covers, Notification light
Keys
Right: Volume control, Lock/Unlock key Right: Volume control, Camera shutter, Lock/Unlock key Left: Volume control; Right: Lock/Unlock key
Colors
Black, Brown, Green, White Black, Gold, Blue, White

Display

Size
5.2-inch 5.2-inch 5.1-inch
Resolution
1920x1080px, 423 PPI 1920x1080px, 424 PPI 1920x1080px, 432 PPI
Technology
AMOLED IPS LCD Super AMOLED
Screen-to-body
73.46 % 71.00 % 69.76 %
Colors
16 777 216
Features
Scratch-resistant glass (Corning Gorilla Glass 3), Ambient light sensor, Proximity sensor Ambient light sensor, Proximity sensor Scratch-resistant glass (Corning Gorilla Glass 3), Ambient light sensor, Proximity sensor

Hardware

System chip
Qualcomm Snapdragon 801 8974-AC Qualcomm Snapdragon 801 8974-AC Qualcomm Snapdragon 801 MSM8974-AC (28 nm)
Processor
Quad-core
2500 MHz
Krait 400
Quad-core
2500 MHz
Krait 400
Quad-core
2500 MHz
Krait 400
GPU
Adreno 330 Adreno 330 Adreno 330
RAM
2GB (LPDDR3) 3GB (LPDDR3) 2GB (LPDDR3)
Internal storage
32GB 16GB, available to use: 11.8 GB 32GB
Storage expansion
microSDXC up to 128 GB microSDXC up to 128 GB
OS
Android (5.1 Lollipop, 5.0 Lollipop, 4.4.4) Android (6.0 Marshmallow, 5.1 Lollipop, 5.0 Lollipop, 4.4.4) Android (6.0 Marshmallow, 5.1 Lollipop, 5.0 Lollipop, 4.4.4, 4.4.2), Samsung TouchWiz UI

Battery

Capacity
2300 mAh 3100 mAh 2800 mAh
Type
Li - Polymer Li - Ion
Charging
Qualcomm Quick Charge 2.0

Camera

Rear
Single camera Single camera Single camera
Main camera
13 MP (Autofocus)
Aperture size: F2.2
Focal length: 29 mm
Sensor size: 1/3.06"
Pixel size: 1.13 μm
20.7 MP (Autofocus, CMOS image sensor)
Aperture size: F2.0
Focal length: 25 mm
Sensor size: 1/2.3"
Pixel size: 1.12 μm
16 MP (BSI sensor, PDAF)
Aperture size: F2.2
Focal length: 31 mm
Sensor size: 1/2.6"
Pixel size: 1.12 μm
Flash
Dual LED LED LED
Video recording
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (30 fps)
EIS, Video calling
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps)
HDR, Continuous autofocus, Picture-taking during video recording, EIS, Video calling
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps)
HDR, Continuous autofocus, EIS, Video calling, Video sharing
Front
2 MP, Video capture: 1920x1080 (Full HD) 2.2 MP (HDR), Video capture: 1920x1080 (Full HD) 2.1 MP, Video capture: 1920x1080 (Full HD)

Connectivity & Features

Bluetooth
4.0 4.0 4.0
WLAN
802.11 a,b,g,n,ac,dual-band
Wi-Fi Direct, Hotspot
802.11 a,b,g,n,ac,dual-band
Wi-Fi Direct, Hotspot
802.11 a,b,g,n,ac,dual-band
Multiple antennas, MIMO, Hotspot, Wi-Fi Direct
USB
microUSB, USB 2.0 microUSB, USB 2.0 microUSB, USB 3.0
Hearing aid compatible
M3/T3
HDMI
Yes
Location
GPS, A-GPS, Glonass GPS, A-GPS, Glonass GPS, A-GPS, Glonass
Sensors
Accelerometer, Compass, Gesture Accelerometer, Gyroscope, Compass, Gesture, Barometer, Step detector, Step counter Accelerometer, Gyroscope, Pedometer, Compass, Hall (for flip covers), Gesture, Barometer, Step detector, Step counter
Other
NFC, Tethering, Computer sync, OTA sync NFC, ANT+, Tethering, Computer sync, OTA sync NFC, ANT+, Infrared, Tethering, Computer sync, OTA sync

Multimedia

Headphones
3.5mm jack 3.5mm jack 3.5mm jack
Speakers
Earpiece, Loudspeaker Earpiece, Multiple speakers Earpiece, Loudspeaker
Features
Album art cover, Background playback Album art cover, Background playback Album art cover, Background playback
Screen mirroring
Wireless screen share DLNA,Wireless screen share,MHL MHL
Radio
FM, Stereo, RDS
Additional microphone(s)
Noise cancellation Noise cancellation, Video recording Noise cancellation, Video recording

Cellular

4G (FDD)
Bands 1(2100), 3(1800), 7(2600), 8(900), 20(800 DD) Bands 1(2100), 3(1800), 5(850), 7(2600), 8(900), 28(700 APT) Bands 1(2100), 2(1900), 3(1800), 5(850), 7(2600), 8(900), 20(800 DD)
4G (TDD)
Bands 40(2300)
3G
Bands 5(850), 8(900), 3(1800), 2(1900), 1(2100) Bands 5(850), 8(900), 2(1900), 1(2100) Bands 5(850), 8(900), 2(1900), 1(2100)
Data Speed
LTE, HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s, UMTS LTE Cat 4 (150/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s LTE Cat 4 (150/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s, UMTS
SIM type
Nano SIM Nano SIM Micro SIM
VoLTE
Yes Yes

Phone Features

Notifications
Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
Other features
Voice dialing, Voice commands, Voice recording

Regulatory Approval

FCC approval
Date approved: Jun 26, 2014
FCC ID value: PY7PM-0801
Measured SAR
Head: 0.54 W/kg
Body: 0.99 W/kg
Simultaneous Transmission: 1.53 W/kg
Wireless Router: 1.49 W/kg

Availability

Officially announced
Sep 04, 2014 Sep 03, 2014 Feb 24, 2014
