Samsung E2230
Follow Following

Name: E2230
Brand: Samsung

1.8"
128 x 160 pixels

0.3 MP VGA

MEMORY: 0.004 GB + MicroSD
BATTERY: 1000 mAh

Posted: Mar 21, 2011
Market status: Released
Release date: Jun 1, 2011

Features: Fingerprint Lightweight Thin LTE Rugged NFC Dual SIM

Pros

No pros

Cons

Does not support automatic screen brightness

embed

Description

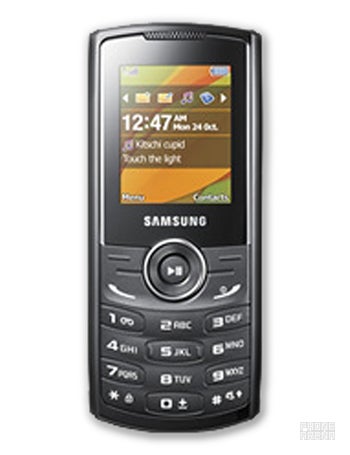

Samsung E2230 is a basic candybar GSM phone with FM radio. It has 1.77" TFT display, VGA camera, Bluetooth, 3.5mm headset jack, music player and supports up to 8GB microSD memory cards.

Do you ...?

2 Want it

1 Have it

0 Had it

Links

Samsung E2230 manual

Compare

Design

Device type:
- Basic phone
Dimensions:
- 4.30 x 1.81 x 0.59 inches (109.2 x 46 x 14.9 mm)
Weight:
- 2.79 oz (79 g)
  the average is 5.4 oz (156 g)
Features:
- Numeric keypad, Soft keys, D-Pad
Colors:
- Black

Display

Physical size:
- 1.8 inches
Resolution:
- 128 x 160 pixels
Pixel density:
Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.
- 116 ppi
Technology:
Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.
- TFT
Screen-to-body ratio:
Screen-to-body ratio - Shows what part of the frontal area of a phone its screen occupies.
- 19.64 %

Camera

Camera:
- - 0.3 megapixels VGA
- Software Features:
  - Digital zoom, Self-timer
- Settings:
  - White balance presets
- Shooting Modes:
  - Night mode, Scenes, Effects
Camcorder:
- - 220x176 (15 fps)

Hardware

Built-in storage:
Built-in storage - Bigger storage capacity allows you to keep more content saved onto your device, such as more applications, photos or video. Games and video content typically take up the biggest amount of storage space.
- 0.004 GB
Storage expansion:
Storage expansion - Some handsets allow you to expand their storage capacity by using a memory expansion card – most often microSD. Expansion memory is mostly suitable for media storage, such as photo, video or music content.
- microSD, microSDHC up to 8 GB

Battery

Capacity:
Capacity - The bigger, the better! However, battery capacity is not the only factor that has an effect on battery life. Those include the chipset in use, the software running on the device, as well as the consumer's unique usage pattern.
- 1000 mAh
Type:
- User replaceable, Li - Ion
Talk time:
- 14.60 hours
  the average is 20 h (1202 min)
Stand-by time:
- 27.5 days (660 hours)
  the average is 19 days (459 h)
Music playback:
- 9.50 hours

Multimedia

Radio:
- - FM, RDS, Recording option
Speakers:
- Earpiece, Loudspeaker

Cellular

GSM:
- 900, 1800 MHz

Phone features

Notifications:
- Music ringtones (MP3), Polyphonic ringtones (64 voices), Vibration, Flight mode, Silent mode, Speakerphone
Other features:
- Voice dialing, Voice recording

specifications continue after the ad

Connectivity

Bluetooth:
- - 2.1, EDR
USB:
- - USB 2.0
- Connector:
  - microUSB
- Features:
  - Mass storage device, USB charging
Other:
- Computer sync

Regulatory Approval

EU SAR:
- Head:
  - 0.86 W/kg

To see the full specifications with in-depth details click here.

Alternative variants

We list only the specs that are different than the main variant

Samsung E2230L

Differences from the main variant:

GSM:
- 850, 1900 MHz

FCC approval:
FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.
- Date approved:
  Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission
  - 02 Aug 2011
- - FCC ID value:
    FCC ID value - Shows the FCC Identifying value of the particular phone
    A3LGTE2230L link
FCC measured SAR:
FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).
- Head:
  - 0.95 W/kg
- Body:
  - 0.44 W/kg
