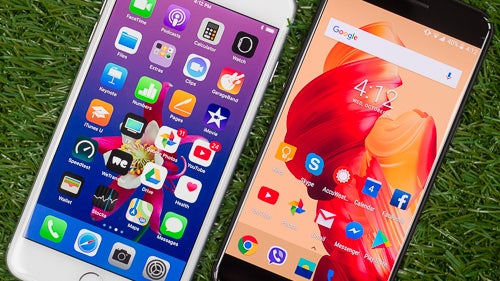

Apple iPhone 8 Plus vs OnePlus 5 Specs Comparison

Compare mobile phone specifications of up to three devices at once. Our specs comparison tool helps you find and compare the perfect phone for your needs.

9.2
Apple iPhone 8 Plus
8.5
OnePlus 5
Apple iPhone 8 Plus OnePlus 5
Released · Sep 22, 2017
Released · Jun 22, 2017
5.5-inch
5.5-inch
Dual camera
Dual camera
3GB · 256GB
8GB · 128GB
2691 mAh
3300 mAh

Design

Dimensions
6.24 x 3.07 x 0.30 inches
158.4 x 78.1 x 7.5 mm
6.07 x 2.92 x 0.29 inches
154.2 x 74.1 x 7.25 mm
Weight
7.13 oz (202.0 g) 5.40 oz (153.0 g)
Materials
Back: Glass
Frame: Aluminum
Back: Aluminum
Resistance
Water, Dust; IP67
Biometrics
Fingerprint (touch) 2D Face unlock, Fingerprint (touch)
Features
Notification light, Touch sensitive control keys
Keys
Left: Volume control, Other; Right: Lock/Unlock key Left: Volume control, Other; Right: Lock/Unlock key
Colors
Gold, Silver, Red, Space gray Gold, Gray

Display

Size
5.5-inch 5.5-inch
Resolution
1920x1080px, 16:9 ratio, 401 PPI 1920x1080px, 16:9 ratio, 401 PPI
Technology
IPS LCD AMOLED
Screen-to-body
67.47 % 72.93 %
Peak brightness
625 cd/m2 (nit)
Features
Pressure-sensitive, Oleophobic coating, Scratch-resistant glass, Ambient light sensor, Proximity sensor Scratch-resistant glass (Corning Gorilla Glass 5), Ambient light sensor, Proximity sensor

Hardware

System chip
Apple A11 Bionic APL1W72 (10 nm) Qualcomm Snapdragon 835 MSM8998 (10 nm)
Processor
Hexa-core
2390 MHz
Monsoon and Mistral
Octa-core
2457 MHz
Kryo
GPU
Apple 3-core GPU Adreno 540
RAM
3GB (LPDDR4) 8GB (LPDDR4)
Internal storage
256GB 128GB
Storage expansion
not expandable not expandable
OS
iOS (15.x, 14.x, 13.x, 12.x, 11.x) Android (10, 9.0 Pie, 8.1 Oreo, 8.0 Oreo, 7.1 Nougat)

Battery

Capacity
2691 mAh 3300 mAh
Type
Li - Ion Li - Polymer
Charging
USB Power Delivery, Qi wireless charging OnePlus Dash Charge
Charge speed
Wired: 15.0W
Wireless: 7.5W

Camera

Rear
Dual camera Dual camera
Main camera
12 MP (Sapphire crystal lens cover, OIS, PDAF, CMOS image sensor, BSI sensor)
Aperture size: F1.8
Focal length: 28 mm
Sensor size: 1/3"
Pixel size: 1.22 μm
16 MP (Autofocus, CMOS image sensor, BSI sensor)
Aperture size: F1.7
Focal length: 24 mm
Sensor size: 1/2.8"
Pixel size: 1.12 μm
Second camera
12 MP (Telephoto, Sapphire crystal lens cover, PDAF, CMOS image sensor, BSI sensor)
Optical zoom: 2.0x
Aperture size: F2.8
Focal Length: 56 mm
Sensor size: 1/3.4"
Pixel size: 1 μm
20 MP (PDAF, CMOS image sensor, BSI sensor)
Optical zoom: 1.6x
Aperture size: F2.6
Focal Length: 36 mm
Sensor size: 1/2.8"
Pixel size: 1 μm
Flash
Quad LED Dual LED
Video recording
3840x2160 (4K UHD) (60 fps), 1920x1080 (Full HD) (240 fps), 1280x720 (HD)
OIS, Time-lapse video, Continuous autofocus, Picture-taking during video recording, Video light, Video calling, Video sharing
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps), 1280x720 (HD) (120 fps)
Time-lapse video, EIS, Video calling, Video sharing
Front
7 MP (HDR), Video capture: 1920x1080 (Full HD) 16 MP (HDR), Video capture: 1920x1080 (Full HD)

Connectivity & Features

Bluetooth
5.0 5.0
WLAN
802.11 a,b,g,n,ac,dual-band
MIMO, Wi-Fi Direct, Hotspot
802.11 a,b,g,n,ac,dual-band
MIMO, Wi-Fi Direct, Hotspot
USB
Lightning Type-C, USB 2.0
Hearing aid compatible
M3/T4
Location
GPS, A-GPS, Glonass, Galileo, Cell ID, Wi-Fi positioning GPS, A-GPS, Glonass, Galileo, BeiDou
Sensors
Accelerometer, Gyroscope, Compass, Barometer Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer
Other
NFC, UMA (Wi-Fi Calling) NFC, Tethering, Computer sync, OTA sync

Multimedia

Headphones
No 3.5mm jack 3.5mm jack
Speakers
Earpiece, Multiple speakers Earpiece, Loudspeaker
Features
aptX-HD
Screen mirroring
Wireless screen share Wireless screen share
Additional microphone(s)
Noise cancellation Noise cancellation

Cellular

4G (FDD)
Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 17(700 b), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS), 66(AWS-3) Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 17(700 b), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS), 66(AWS-3)
4G (TDD)
Bands 38(2600), 39(1900+), 40(2300), 41(2600+) Bands 38(2600), 39(1900+), 40(2300), 41(2600+)
3G
Bands 4(1700/2100), 5(850), 8(900) Bands 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100)
Data Speed
LTE-A Cat 12/13 (600/150 Mbit/s), LTE-A, HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s LTE-A Cat 12 (600/100 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s, UMTS
Dual SIM
Yes
SIM type
Nano SIM Nano SIM
HD Voice
Yes
VoLTE
Yes

Regulatory Approval

FCC approval
Date approved: Jun 20, 2017
FCC ID value: 2ABZ2-A5000
Measured SAR
Head: 1.36 W/kg
Body: 0.84 W/kg
Simultaneous Transmission: 1.58 W/kg
Wireless Router: 1.19 W/kg
Phablet: 3.57 W/kg

Buyers information

MSRP
$ 949 $ 539
In The Box
EarPods with Lighting connector, Lightning to 3.5mm headphone jack adapter, Lightning to USB Cable, USB Power Adapter, Documentation Screen Protector (pre-applied), Dash TYpe-C Cable, Dash Power adapter, SIM Tray Ejector, Quick Start Guide, Safety information

Availability

Officially announced
Sep 12, 2017 Jun 20, 2017

Alternative variants

with 64 GB storage
Internal storage 64GB
MSRP $ 799
with 64GB of storage
RAM 6GB
Internal storage 64GB
MSRP $ 479
A1864
with 128 GB storage
