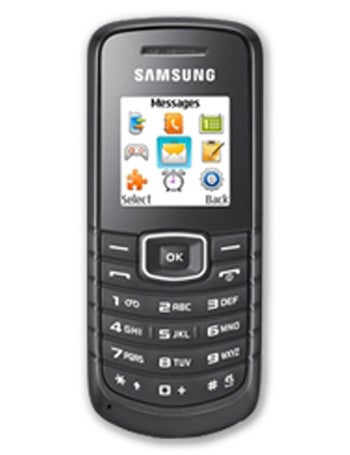

Samsung E1086L
128 x 128 pixels
Pros
- Small dimensions (4.23 x 1.79 x 0.53 inches)
Cons
- Lacks a camera on the back
- Lacks microSD slot for storage expansion
- Does not support automatic screen brightness
Description
Design
- Device type:
- Basic phone
- Dimensions:
- 4.23 x 1.79 x 0.53 inches (107.5 x 45.5 x 13.5 mm)
- Weight:
- 2.26 oz (64 g)
the average is 5.4 oz (154 g)
- 2.26 oz (64 g)
- Features:
- Numeric keypad, D-Pad, Soft keys
Display
- Physical size:
- 1.4 inches
- Resolution:
- 128 x 128 pixels
- Pixel density:
Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.
- 127 ppi
- Technology:
Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.
- CSTN
- Screen-to-body ratio:
Screen-to-body ratio - Shows what part of the frontal area of a phone its screen occupies.
- 13.50 %
Battery
- Capacity:
Capacity - The bigger, the better! However, battery capacity is not the only factor that has an effect on battery life. Those include the chipset in use, the software running on the device, as well as the consumer's unique usage pattern.
- 800 mAh
- Type:
- User replaceable, Li - Ion
- Talk time:
- 7.00 hours
the average is 26 h (1589 min)
- 7.00 hours
- Stand-by time:
- 14.6 days (350 hours)
the average is 20 days (481 h)
- 14.6 days (350 hours)
Multimedia
- Radio:
- FM
Cellular
- GSM:
- 850, 1900 MHz
Phone features
- Notifications:
- Vibration, Silent mode, Speakerphone
Regulatory Approval
- FCC approval:
FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.
- Date approved:
Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission
- 07 Dec 2009
- FCC ID value:
FCC ID value - Shows the FCC Identifying value of the particular phone
A3LGTE1086L link
- FCC ID value:
- Date approved:
- FCC measured SAR:
FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).
- Head:
- 0.81 W/kg
- Measured in:
- 1900 MHz
- Body:
- 0.36 W/kg
- Measured in:
- 1900 MHz
- Head:
To see the full specifications with in-depth details click here.
This device is also known as Samsung GT-E1086L
Alternative variants
We list only the specs that are different than the main variant
Samsung E1086i
Differences from the main variant:
- GSM:
- 900, 1800 MHz
- FCC approval:
FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.
- Date approved:
Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission
- 14 Feb 2011
- FCC ID value:
FCC ID value - Shows the FCC Identifying value of the particular phone
A3LGTE1086I link
- FCC ID value:
- Date approved:
- FCC measured SAR:
FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).
- Head:
- 0.97 W/kg
- Measured in:
- 850 MHz
- Body:
- 0.37 W/kg
- Measured in:
- 850 MHz
- Head:
Despite our efforts to provide full and correct Samsung E1086L specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.
If you are interested in using our specs commercially, check out our Phone specs database licensing page.
