Sanyo Katana Eclipse X
- Bookmark
- Posted: 21 Jul 2008 Announced: 18 Aug 2008
- Market Status: Released
- Release date: 11 Aug 2008
-
Do you ...?
- US carrier availability: Sprint - Discontinued
- Links: Sanyo Katana Eclipse X manual Sanyo Katana Eclipse Review Sanyo Katana Eclipse X Official Page

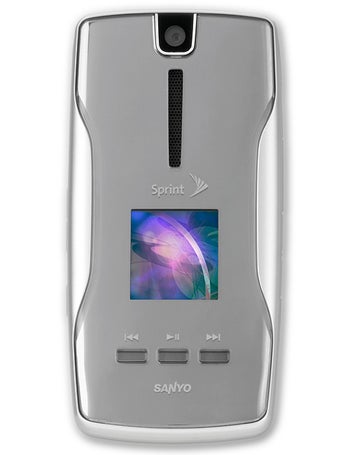

Sanyo Katana Eclipse is the fifth device of the Katana line. It is a clamshell with glossy design and an external color display that can be used for GPS navigation. It also features music-dedicated keys and 1.3-megapixel camera.
Rating
Sanyo Katana Eclipse X specifications
also known as Sanyo SCP-6750, Sanyo Katana Eclipse
Pros
No prosCons
- Low pixel densitiy screen, below 180ppi (141 ppi)
- It is so thick it needs a personal fitness trainer (0.70 inches)
- Low resolution display (176 x 220 pixels)
- Low-resolution camera (1.3 megapixels)
- The camera lacks autofocus
- Low-resolution video capture
- Lacks a standard (3.5mm) headphones jack
- Lacks an ambient light sensor for automatic screen brightness adjustment
Design
- Form factor:
Form factor - Refers to the form factor of a phone. The main handset designs are bar, clamshell, slide, swivel
- Clamshell
- Dimensions:
- 3.60 x 1.90 x 0.70 (91 x 48 x 18 mm)
- Weight:
- 3.40 oz (96 g)
the average is 4.2 oz (120 g)
- 3.40 oz (96 g)
Display
- Physical size:
- 2.00 inches
- Resolution:
- 176 x 220 pixels
- Pixel density:
Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.
- 141 ppi
- Technology:
Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.
- TFT
- Colors:
Colors - Shows the number of colors that the display supports
- 65 536
- Additional display:
Additional display - Shows specs of the phone's additional display
- TFT
- Resolution:
Resolution - Refers to the width and the length od the additional display
- 96 x 96 pixels
- Physical Size:
- 1.00 inches
- Colors:
Colors - Shows the number of colors that the additional display supports
- 65 536
Battery
- Talk time:
Talk time - Maximum talk time in hours
- 4.60 hours
the average is 8 h (497 min)
- 4.60 hours
- Capacity:
- 840 mAh
Hardware
- Built-in storage:
- 10 MB
- Storage expansion:
- Slot Type:
- microSD, microSDHC
- Slot Type:
Camera
- Camera:
- 1.3 megapixels
- Features:
- Digital zoom
- Camcorder:
- 220x176 (QCIF)
Internet browsing
- Browser:
- Yes
- Supports:
- WAP 2.0
Technology
- CDMA:
CDMA - Code Division Multiple Access. A technique of multiplexing, also called spread spectrum, in which analog signals are converted into digital form for transmission. For each communication channel, the signals are encoded in a sequence known to the transmitter and the receiver for that channel. The foremost application is digital cellular phone technology from QUALCOMM that operates in the 800MHz band and 1.9GHz PCS band. CDMA phones are noted for their excellent call quality and long battery life.
- 800, 1900 MHz
- Data:
Data - Shows the particular phone's type of data. the major mobile phone data types are GPRS, CDMA2000 1xRTT, EDGE, CDMA2000 1xEV-DO, UMTS, etc.
- EV-DO
- Positioning:
Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.
- GPS
Phone features
- Phonebook:
- 500 entries, Caller groups, Multiple numbers per contact, Picture ID, Ring ID
- Organizer:
- Calendar, Alarm, To-Do, Calculator, World clock, Stopwatch, Countdown timer
- Messaging:
- SMS, MMS (T9), Predictive text input
Connectivity
- Bluetooth:
- 2.0, EDR
- USB:
- Yes
Other features
- Notifications:
- Polyphonic ringtones (72 voices), Vibration, Phone profiles, Speakerphone
- Voice dialing (Speaker independent), Voice recording, TTY/TDD
Availability
- Officially announced:
- 18 Aug 2008
