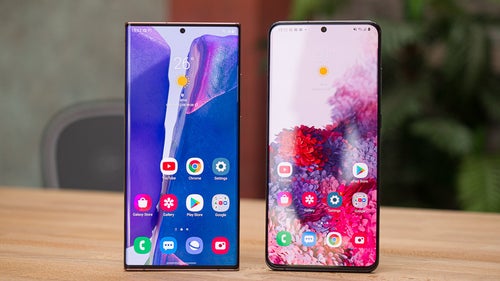

Samsung Galaxy Note 20 Ultra vs Samsung Galaxy S20 Ultra 5G

Compare phone and tablet specifications of up to three devices. Type a model name in the search field of our phone specs comparison tool or pick a popular device from the ones below.

$1045 VIEW ON amazon
$1165 VIEW ON amazon

Display

Size

6.9 inches
6.9 inches

Resolution

3088 x 1440 pixels, 19.3:9 ratio,
496 PPI
3200 x 1440 pixels, 20:9 ratio,
509 PPI

Technology

Dynamic AMOLED
Dynamic AMOLED

Screen-to-body

91.63 %
90.70 %

Features

120Hz refresh rate, HDR video support, Scratch-resistant glass (Corning Gorilla Glass Victus), Ambient light sensor, Proximity sensor
120Hz refresh rate (@1080p), HDR video support, Scratch-resistant glass (Corning Gorilla Glass 6), Ambient light sensor, Proximity sensor

Hardware

System chip

Qualcomm Snapdragon 865+ SM8250-AB
Qualcomm Snapdragon 865 SM8250

Processor

Octa-core, 3000 MHz, Kryo 585, 64-bit, 7 nm
Octa-core, 2840 MHz, Kryo 585, 64-bit, 7 nm

GPU

Adreno 650
Adreno 650

RAM

12GB LPDDR5
12GB LPDDR5

Internal storage

128GB, available to use: 107 GB
128GB (UFS 3.0), available to use: 103.8 GB

Storage expansion

microSDXC up to 1000 GB
microSDXC up to 1000 GB

Device type

Smartphone
Smartphone

OS

Android (10), Samsung One UI
Android (10), Samsung One UI

Battery

Capacity

4500 mAh
5000 mAh

Type

Li - Polymer, Not user replaceable
Li - Polymer, Not user replaceable

Battery life test results

Charging

Qualcomm Quick Charge 2.0, Samsung Adaptive Fast Charging, Qi and Powermat wireless charging, Reverse wireless charging
Qualcomm Quick Charge 2.0, Samsung Adaptive Fast Charging, Qi and Powermat wireless charging, Reverse wireless charging

Max charge speed


Wired: 45.0W; Wireless: 15.0W

Camera

Rear

Triple camera
Quad camera

Main camera

108 MP (OIS, Laser and PDAF)
108 MP (OIS, PDAF)

Specifications

Aperture size: F1.8; Focal length: 26 mm; Sensor size: 1/1.33"; Pixel size: 0.8 μm
Aperture size: F1.8; Focal length: 26 mm

Second camera

12 MP (Telephoto, OIS, PDAF)
48 MP (Telephoto, OIS, PDAF)

Specifications

Optical zoom: 5x; Aperture size: F3.0; Focal Length: 120 mm; Pixel size: 1 μm
Aperture size: F3.5; Focal Length: 102 mm; Sensor size: 1/2"; Pixel size: 0.8 μm

Third camera

12 MP (Ultra-wide, Autofocus)
12 MP (Ultra-wide, Autofocus)

Specifications

Aperture size: F2.2; Focal Length: 13 mm; Sensor size: 1/2.55"; Pixel size: 1.4 μm
Aperture size: F2.2; Focal Length: 13 mm; Pixel size: 1.4 μm

Fourth camera


0.3 MP VGA (ToF 3D depth sensing)

Video recording

7680x4320 (8K UHD) (24 fps), 3840x2160 (4K UHD) (60 fps), 1920x1080 (Full HD) (240 fps), 1280x720 (HD) (960 fps)
7680x4320 (8K UHD) (24 fps), 3840x2160 (4K UHD) (60 fps), 1920x1080 (Full HD) (240 fps), 1280x720 (HD) (960 fps)

Features

OIS, HDR, Time-lapse video, Hyperlapse, Object tracking, EIS
OIS, HDR, Time-lapse video, EIS

Front

10 MP (PDAF, HDR)
40 MP (PDAF, HDR)

Design

Dimensions

6.49 x 3.04 x 0.32 inches (164.8 x 77.2 x 8.1 mm)
6.57 x 2.99 x 0.35 inches (166.9 x 76 x 8.8 mm)

Weight

7.34 oz (208.0 g)
the average is 6.3 oz (179 g)
7.83 oz (222.0 g)
the average is 6.3 oz (179 g)

Materials

Back: Glass (Corning Gorilla Glass Victus); Frame: Stainless steel
Back: Glass (Corning Gorilla Glass 6); Frame: Aluminum

Resistance

Water, Dust; IP 68
Water, Dust; IP 68

Biometrics

2D Face unlock, Ultrasonic in-screen fingerprint
2D Face unlock, Ultrasonic in-screen fingerprint

Features

Stylus


Keys

Right: Volume control, Lock/Unlock key
Right: Volume control, Lock/Unlock key

Colors

Mystic black, Mystic bronze, Mystic white
Cosmic black, Cosmic grey

Cellular

5G

n2, n5, n41, n66, n71, n260, n261, SA, NSA, Sub-6, mmWave
n2, n5, n41, n66, n71, n260, n261, SA, NSA, Sub-6, mmWave

LTE (FDD)

Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 14(700 PS), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS), 66(AWS-3), 71(600)
Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 14(700 PS), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS), 66(AWS-3), 71(600)

LTE (TDD)

Bands 38(2600), 39(1900+), 40(2300), 41(2600+), 46, 48(3600)
Bands 38(2600), 39(1900+), 40(2300), 41(2600+), 46, 48(3600)

UMTS

850, 900, 1700/2100, 1900, 2100 MHz
850, 900, 1700/2100, 1900, 2100 MHz

Data Speed

LTE-A Pro Cat 20 (2000/150 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
LTE-A Pro Cat 20 (2000/150 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s

SIM type

Nano SIM
Nano SIM

HD Voice

Yes


Multimedia

Headphones

No 3.5mm jack
No 3.5mm jack

Speakers

Earpiece, Multiple speakers
Earpiece, Multiple speakers

Features

32-Bit DAC, Dolby Atmos, aptX, Dolby Digital, Dolby Digital Plus
32-Bit DAC, Dolby Atmos, aptX, Dolby Digital, Dolby Digital Plus

Screen mirroring

Wireless screen share
Wireless screen share

Radio

FM
FM

Additional microphone(s)

for Noise cancellation
for Noise cancellation

Connectivity & Features

Bluetooth

5.0
5.0

Wi-Fi

802.11 a, b, g, n, ac, ax (Wi-Fi 6), dual-band; MIMO, Wi-Fi Direct, Hotspot
802.11 a, b, g, n, ac, ax (Wi-Fi 6), dual-band; MIMO, Wi-Fi Direct, Hotspot

USB

Type-C (reversible), USB 3.2
Type-C (reversible), USB 3.2

Features

Charging, Headphones port, OTG, Video out
Charging, Headphones port, OTG

Location

GPS, A-GPS, Glonass, Galileo, Cell ID, Wi-Fi positioning
GPS, A-GPS, Glonass, Galileo, Cell ID, Wi-Fi positioning

Sensors

Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer
Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer

Other

NFC, ANT+
NFC, ANT+

Hearing aid compatible

M3, T3
M3, T4

Regulatory Approval

FCC approval




Date approved

Jul 06, 2020
Jan 28, 2020

FCC ID value: A3LSMN986U link
FCC ID value: A3LSMG988B link

Measured SAR




Head

0.78 W/kg
0.26 W/kg

Body

1.04 W/kg
0.41 W/kg

Simultaneous Transmission

1.59 W/kg
1.57 W/kg

Wireless Router

1.18 W/kg
1.04 W/kg

Phablet

3.92 W/kg
2.12 W/kg

Buyers information

Price

$ 1300
$ 1400

User Manual

Download the Samsu​ng Galaxy Note 20 Ultra Manual as a PDF file.


In The Box

Data Cable, Travel Adapter, Ejection Pin, Quick Start Guide


Availability

Officially announced

Aug 05, 2020
Feb 11, 2020
