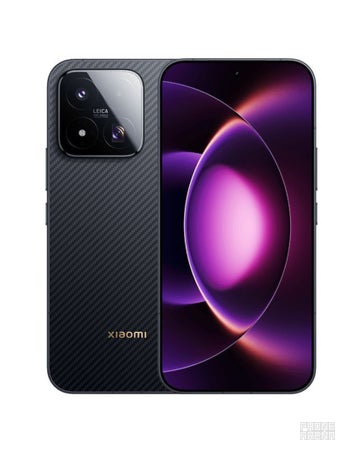

Xiaomi 17 Max

Full Specifications

Released · May 21, 2026

6.9-inch · 2608x1200px

Triple camera

8000 mAh

12GB · 256GB

Snapdragon 8 Elite Gen 5

Android 16

Add us as a preferred source on Google Search

Be the first to review this phone

I want it 0 users

I have it 0 users

I had it 0 users

Not official: The information for this phone is preliminary and could be incomplete or inaccurate.

Popular Comparisons

The Xiaomi 17 Max is most commonly compared with these phones:

Availability
Prices (MSRP)	12GB/256GB - €780 12GB/512GB - €861 16GB/256GB - €819 16GB/512GB - €914

Design
Dimensions	6.41 x 3.06 x 0.32 inches 162.9 x 77.6 x 8.2
Weight	7.94 oz / 225.0 g
Materials	Back: Glass Frame: Aluminum
Resistance	Water, Dust; IP68
Biometrics	Ultrasonic in-screen fingerprint
Keys	Right: Volume control, Lock/Unlock key
Colors	Black, Blue, White

Display
Size	6.9-inch, 92.17% screen-to-body
Type	AMOLED, 120Hz, Dolby Vision, 3500 nits
Resolution	2608x1200px, 416 PPI
Features	Ambient light sensor, Proximity sensor

Hardware
System chip	Snapdragon 8 Elite Gen 5 SM8850-AC (3 nm)
Processor	Octa-core 2x4.6GHz Oryon V3 Phoenix L 6x3.62GHz Oryon V3 Phoenix M
GPU	Adreno 840
Memory	12GB (LPDDR5X)/256GB (UFS 4.1) 12GB/512GB 16GB/256GB 16GB/512GB
Storage expansion	not expandable
OS	Android (16)

Battery
Type	8000 mAh, Si - Carbon
Charging	Fast charging Qi wireless charging
Charge speed	Wired: 100.0W Wireless: 50.0W

Camera
Rear	Triple camera
Main camera	200 MP (OIS, Autofocus, PDAF) Aperture size: F1.7 Sensor size: 1/1.4"
Second camera	50 MP (Ultra-wide) Aperture size: F2.4 Focal Length: 17 mm Sensor size: 1/2.76" Pixel size: 0.64 μm
Third camera	50 MP (Telephoto, Periscope) Optical zoom: 3.0x Focal Length: 70 mm Sensor size: 1/1.95"
Flash	LED
Video recording	8K UHD (30 fps), 4K UHD (60 fps), 1080p (960 fps), 720p (1920 fps) OIS, HDR, EIS
Front	32 MP (EIS, HDR) Video capture: 4K UHD (60 fps)

Connectivity & Features
Bluetooth	5.4
WLAN	Wi-Fi 6E,Wi-Fi 7 Wi-Fi Direct, Hotspot 802.11 a, b, g, n, ac
USB	Type-C, USB 3.2
Sensors	Accelerometer, Gyroscope, Compass, Barometer, Ambient light sensor, Proximity sensor
Location	GPS, A-GPS, Glonass, Galileo, BeiDou, QZSS, NavIC, Cell ID, Wi-Fi positioning
Other	NFC, Infrared

Multimedia
Headphones	No 3.5mm jack
Speakers	Earpiece, Multiple speakers

Cellular
5G Bands	n1, n2, n3, n5, n7, n8, n12, n20, n25, n26, n28, n38, n40, n41, n48, n66, n77, n78, n80, n84
LTE Bands	1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 25, 26, 28, 66
TDD Bands	34, 38, 39, 40, 41, 42, 48
3G Bands	1, 2, 4, 5, 6, 8, 19
Data Speed	LTE-A, HSDPA+ (4G) 42.2 Mbit/s
SIM type	Dual Nano SIM, Dual Nano SIM + eSIM
