Updated : Oct 22, 2019, 4:05 AM

Asus ZenFone AR

Full Specifications

Released · Aug 03, 2017

This device is also known as Asus ZS571KL

6.5

Read Asus ZenFone AR Review

Be the first to review this phone

I want it 11 users

I have it 1 user

I had it 0 users

Popular Comparisons

The Asus ZenFone AR is most commonly compared with these phones:

Design
Dimensions	6.25 x 3.06 x 0.35 inches 158.67 x 77.7 x 8.95 mm
Weight	6.00 oz (170.0 g)
Materials	Frame: Metal
Biometrics	Fingerprint (touch)
Keys	Right: Volume control, Lock/Unlock key
Colors	Black

Display
Size	5.7-inch
Resolution	2560x1440px, 512 PPI
Technology	Super AMOLED
Screen-to-body	73.61 %
Features	Oleophobic coating, Scratch-resistant glass (Corning Gorilla Glass 4), Ambient light sensor, Proximity sensor

PhoneArena Display Test
Bright Max (20 APL)	Untested
Bright Min	7 (Poor)
Learn more on our PhoneArena Display Test Results page.

Hardware
System chip	Qualcomm Snapdragon 821 MSM8996 Pro
Processor	Quad-core 2150 MHz Kryo
GPU	Adreno 530
RAM	6GB (LPDDR4)
Internal storage	128GB
Storage expansion	microSDXC up to 2000 GB
OS	Android (7.0 Nougat), ASUS Zen UI

Battery
Capacity	3300 mAh
Type	Li - Ion
Charging	Qualcomm Quick Charge 3.0

Camera
Rear	Single camera
Main camera	23 MP (OIS, Laser and PDAF) Aperture size: F2.0 Focal length: 27 mm Sensor size: 1/2.6" Pixel size: 1 μm
Flash	Dual LED
Video recording	3840x2160 (4K UHD) (24 fps), 1920x1080 (Full HD) (30 fps), 1280x720 (HD) (30 fps) Time-lapse video, Continuous autofocus, EIS, Video calling, Video sharing
Front	8 MP (Wide Angle, Autofocus, Flash, HDR)

Connectivity & Features
Bluetooth	4.2, Yes
Wi-Fi	802.11 a,b,g,n,ac,dual-band MIMO, Wi-Fi Direct, Hotspot
USB	Type-C, USB 2.0
Location	GPS, A-GPS, Glonass, BeiDou
Sensors	Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer
Other	NFC, Tethering, Computer sync, OTA sync

Multimedia
Headphones	3.5mm jack
Speakers	Earpiece, Loudspeaker
Features	Album art cover, Background playback
Screen mirroring	DLNA,Wireless screen share
Additional microphone(s)	Noise cancellation

Cellular
4G (FDD)	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 12(700 a), 13(700 c), 20(800 DD), 29(700 d)
3G	Bands 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100)
Data Speed	LTE-A Cat 11 (600/75 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
Dual SIM	Yes
SIM type	Nano SIM
HD Voice	Yes
VoLTE	Yes
This device has different variants: View all

Availability
Officially announced	Jan 04, 2017

Despite our efforts to provide full and correct Asus ZenFone AR specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please

LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.

Alternative variants

International version

Differences from the main variant:
4G (FDD)	Bands 1(2100), 2(1900), 3(1800), 5(850), 7(2600), 8(900), 18(800 Lower), 19(800 Upper), 20(800 DD), 26(850+), 28(700 APT)
4G (TDD)	Bands 38(2600), 40(2300), 41(2600+)
3G	Bands 5(850), 8(900), 3(1800), 2(1900), 1(2100)

for Verizon Wireless

Differences from the main variant:
4G (FDD)	Bands 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 13(700 c), 20(800 DD)
3G	Bands 5(850), 8(900), 2(1900), 1(2100)

Carrier Availability

Discontinued

Verizon

News

Asus ZenFone AR is kind of a unique device, but not necessarily in a good way. Even though it was beefed up with top-tier hardware, it remains an expensive smartphone unless you manage to score a deal.World's first smartphone with Tango and Daydream ...

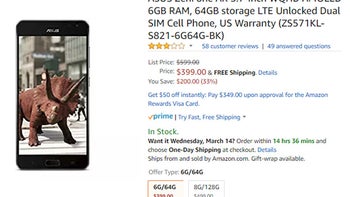

Deal: Asus ZenFone AR 6GB/8GB RAM on sale for $200 off on Amazon

The Asus ZenFone AR is one of the few smartphones that are part of Google's Project Tango. Launched on the market more than six months ago, the device is still priced at around $600 in the United States.However, Amazon is currently running a sale on ...

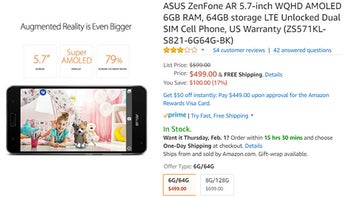

Deal: Asus ZenFone AR with 6GB RAM is $100 off at Amazon

Back in February 2014, Google introduced Project Tango, an Augmented Reality system that was designed for mobile use. Today, Google announced that it will no longer support it starting on March 1, 2018. But this doesn't mean that Google is closing th...

Google to drop support for AR focused Project Tango on March 1st

Whether you're dressing up in dog ears on Snapchat, or tossing a Pokeball at your latest target in Pokemon GO, smartphone users everywhere are already playing around with augmented reality. But while any phone can use its camera to render graphics on...
