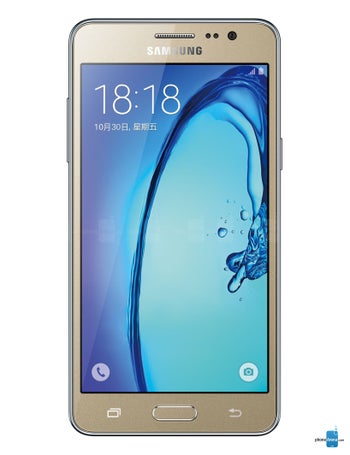

Samsung Galaxy On5

Samsung Galaxy On5

US carrier availability

Available: MetroPCS
Discontinued: T-Mobile

Pros

  • Lightweight phone

Cons

  • Too little RAM memory (1.5 GB RAM)
  • Low pixel density screen (294 ppi)
  • Low-resolution camera (5 megapixels)

Share

embed

Description

The Samsung Galaxy On5 is a dual-SIM, Android smartphone. It has a 5-inch 720p resolution TFT display and is powered by a quad-core 1.3GHz CPU with 1.5GB of RAM and 8GB of expandable storage memory (with 4.3GB available to users). There's a 8MP main camera and 5MP front camera setup on it, and a 2600mAh battery powers the mains. Connectivity-wise, the device supports 2G and 3G (GSM, CDMA, UMTS), as well as 4G (TDD & FDD LTE) networks, along with Wi-Fi 802.11 b / g / n, Bluetooth 4.1, GPS and Glonass.

Do you ...?




Compare

Design

  • Device type:
    • Smart phone
  • OS:
    • Android (6.0)
  • Dimensions:
    • 5.60 x 2.84 x 0.33 inches (142.3 x 72.1 x 8.5 mm)
  • Weight:
    • 5.26 oz (149 g)
      the average is 5.5 oz (157 g)
  • Features:
    • Touch sensitive control keys
  • Colors:
    • Black, Gold, White

Display

  • Physical size:
    • 5.0 inches
  • Resolution:
    • 720 x 1280 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 294 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • TFT
  • Screen-to-body ratio:

    Screen-to-body ratio - Shows what part of the frontal area of a phone its screen occupies.

    • 67.17 %
  • Features:
    • Ambient light sensor, Proximity sensor

Camera

  • Camera:
      • 5 megapixels
    • Flash:
      • LED
    • Hardware Features:
      • Autofocus, CMOS image sensor
    • Software Features:
      • Geo tagging
  • Camcorder:
      • 1920x1080 (1080p HD) (30 fps)
    • Features:
      • Video calling
  • Front-facing camera:
      • 2 megapixels

Hardware

  • Processor:

    Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.

    • Quad-core, 1300 MHz
  • Graphics processor:

    Graphics processor - The graphics processor is important for the smooth operation of the system and especially in games and other applications that may involve complex graphics and animations.

      • Yes
  • System memory:

    System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.

    • 1.5 GB RAM
  • Built-in storage:

    Built-in storage - Bigger storage capacity allows you to keep more content saved onto your device, such as more applications, photos or video. Games and video content typically take up the biggest amount of storage space.

    • 8 GB
  • Maximum User Storage:
    • 4.3 GB
  • Storage expansion:

    Storage expansion - Some handsets allow you to expand their storage capacity by using a memory expansion card – most often microSD. Expansion memory is mostly suitable for media storage, such as photo, video or music content.

    • microSD, microSDHC, microSDXC up to 128 GB

Battery

  • Capacity:

    Capacity - The bigger, the better! However, battery capacity is not the only factor that has an effect on battery life. Those include the chipset in use, the software running on the device, as well as the consumer's unique usage pattern.

    • 2600 mAh
  • Type:
    • User replaceable
  • Talk time (3G):
    • 18.00 hours
      the average is 18 h (1073 min)
  • Stand-by time (3G):
    • 16.0 days (384 hours)
      the average is 24 days (564 h)
  • Music playback:
    • 49.00 hours
  • Video playback:
    • 12.00 hours

Multimedia

  • Screen mirroring:
    • Wireless screen share
  • Music player:
    • Filter by:
      • Album, Artist, Genre, Playlists
    • Features:
      • Album art cover, Background playback
  • Speakers:
    • Earpiece, Loudspeaker

Cellular

  • GSM:
    • 850, 900, 1800, 1900 MHz
  • UMTS:
    • 850, 1700/2100, 1900 MHz
  • LTE (FDD):
    • Bands 2, 4, 12
  • Data:
    • LTE, HSPA, HSUPA
  • Nano SIM:
    • Yes

Phone features

  • Sensors:
      • Accelerometer
  • Notifications:
    • Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
  • Other features:
    • Voice dialing, Voice commands, Voice recording
specifications continue after the ad

Connectivity

  • Bluetooth:
      • 4.1
  • Wi-Fi:
      • 802.11 b, g, n
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • Mass storage device, USB charging
  • Positioning:

    Positioning - This field shows the positioning systems supported by the device. The most common types are GPS and A-GPS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization.

    • GPS, Glonass
  • Navigation:
    • Turn-by-turn navigation, Voice navigation
  • Other:
    • Tethering, Computer sync, OTA sync

Regulatory Approval

  • FCC approval:

    FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.

    • Date approved:

      Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission

      • 27 Mar 2016
      • FCC ID value:

        FCC ID value - Shows the FCC Identifying value of the particular phone

        A3LSMG550FY link
  • FCC measured SAR:

    FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).

    • Head:
      • 0.37 W/kg
    • Body:
      • 0.86 W/kg
    • Simultaneous Transmission:
      • 1.40 W/kg
    • Wireless Router:
      • 0.86 W/kg

To see the full specifications with in-depth details click here.

This device is also known as Samsung SM-G550F


Despite our efforts to provide full and correct Samsung Galaxy On5 specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.


If you are interested in using our specs commercially, check out our Phone specs database licensing page.
