HTC One M9 vs Motorola Moto X 2014

Introduction
At first sight, HTC's new flagship instilled a feeling of deja vu in us, but we decided to give it a chance and not judge the book by its cover. Well, it turned out to be a pretty mixed bag – the One M9 is certainly an improvement over the One (M8) in certain areas, but also a pretty disappointing step backwards in other pretty vital ones, like battery life and display quality. However, is it a better overall device than a rival flagship that is seemingly a bit long in the tooth already, a Motorola Moto X (2014)? There's only one way to find out – by taking a closer look at them, of course!
Design

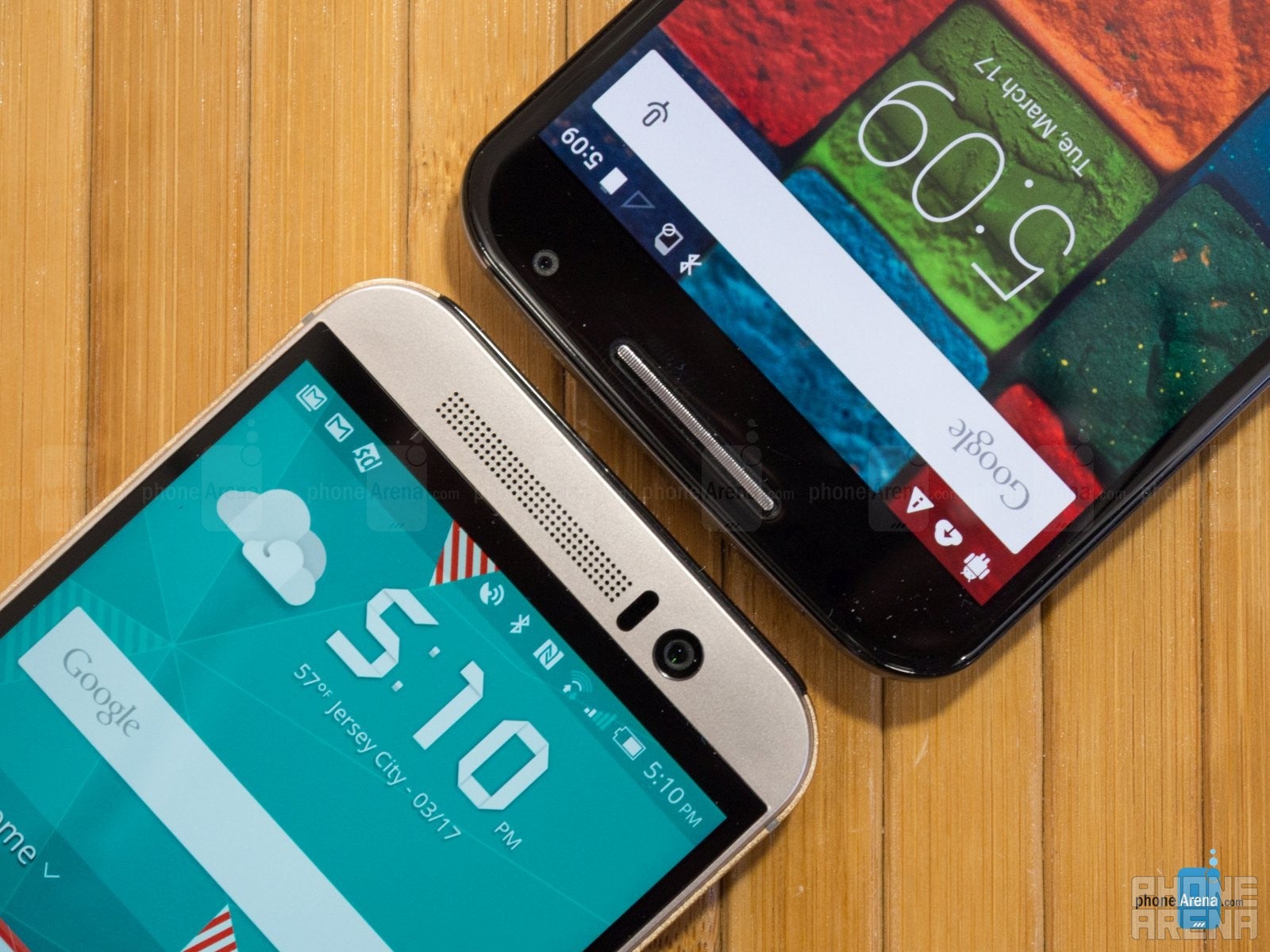

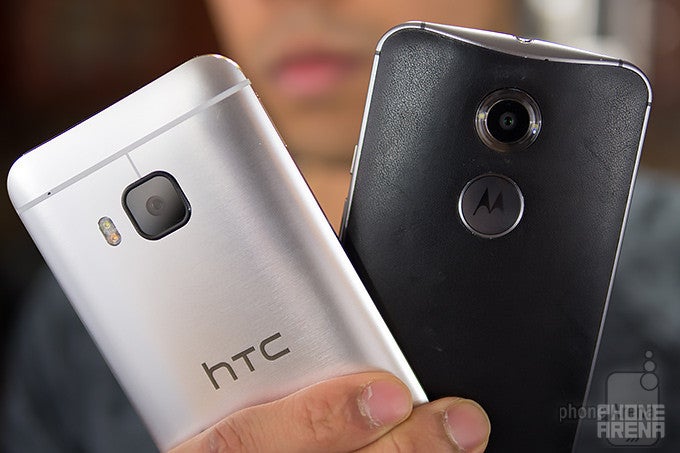

The HTC One M9 and the Moto X 2014 are pretty different on the outside. Despite that both phones employ metal in their build (the whole of the One M9 and the frame of the Moto X), the HTC entrant certainly packs a more “premium” vibe thanks to its sleek aluminum exterior. Not that the Moto X 2014 feels cheap, but it somewhat lags in terms of exclusiveness. We should not forget that thanks to Moto Maker you can choose between a different rear covers – plastic, leather, or wooden ones.
In terms of size and ease of use, both phones sit pretty close to one another. The slightly taller, yet narrower and slimmer HTC One M9, however, feels just a bit more friendly towards single-handed usage. However, the Moto X boasts much better screen-to-body ratio than the One M9 (73.46% vs 68.52%) thanks to its larger display (5.2”) that surpasses the One M9's one by 0.2 inches.
We should also note that both handsets have front-firing speakers, though only one of Moto's is a loudspeaker (the other being an earpiece); things are different in HTC's camp where we have two BoomSound stereo speakers. Last, but not least, we should mention that both phones employ a certain level of water-protection – IPx3 for the One M9 (light water spray resistance) and a splash-resistant coating on the Moto X.

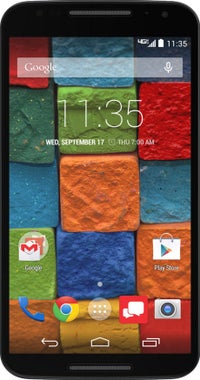

Motorola Moto X (2014)
Dimensions
5.54 x 2.85 x 0.39 inches
140.8 x 72.4 x 9.9 mm
Weight
5.08 oz (144 g)

Motorola Moto X (2014)
Dimensions
5.54 x 2.85 x 0.39 inches
140.8 x 72.4 x 9.9 mm
Weight
5.08 oz (144 g)
See the full HTC One M9 vs Motorola Moto X (2014) in real size or compare them to other phones using our Size Comparison tool.
Display
The eternal clash between LCD and AMOLED displays lives on! In particular, we are dealing with a 5.0” S-LCD 3 screen at the front of the One M9 and a 5.2” AMOLED one on the Motorola. Both are 1080p ones, which means that the pixel density of the HTC flagship is marginally higher – 441ppi vs 423ppi.
We'll be totally honest - in terms of their properties, neither display is too close to perfect. Moto X's AMOLED is quite saturated and vivid; unfortunately, its color balance is all over the place. Not that HTC has stricken the bull's eye with the screen of its One M9 – it's definitely a step in the wrong direction when compared to the older HTC One (M8), which is pretty disappointing. Fortunately, the display doesn't disappoint in the brightness department – you'll have no problems viewing it in broad daylight.
In terms of color temperature, the Moto X performs better than the HTC – we have a temperature of 7056 Kelvins, it trumps the One M9 with its temperature of 8114 Kelvins (reference point is 6500 K), which means that the latter is more bluish and cold than the AMOLED offering in the Motorola.
Display measurements and quality
Maximum brightness Higher is better | Minimum brightness (nits) Lower is better | Contrast Higher is better | Color temperature (Kelvins) | Gamma | Delta E rgbcmy Lower is better | Delta E grayscale Lower is better | |
---|---|---|---|---|---|---|---|
HTC One M9 |
508 (Excellent) |
10 (Average) |
1:1347 (Excellent) |
8114 (Poor) |
2.21 |
4.40 (Average) |
8.24 (Poor) |
Motorola Moto X (2014) |
385 (Average) |
23 (Poor) |
unmeasurable (Excellent) |
7056 (Good) |
1.93 |
6.83 (Average) |
4.27 (Average) |
The numbers below represent the amount of deviation in the respective property, observed when a display is viewed from a 45-degree angle as opposed to direct viewing.
Maximum brightness Lower is better | Minimum brightness Lower is better | Contrast Lower is better | Color temperature Lower is better | Gamma Lower is better | Delta E rgbcmy Lower is better | Delta E grayscale Lower is better | |
---|---|---|---|---|---|---|---|
Motorola Moto X (2014) |
54% |
52.2% |
unmeasurable |
3.9% |
4.7% |
16.4% |
47.8% |
HTC One M9 |
78.7% |
80% |
83.4% |
13.9% |
3.2% |
20.9% |
18.8% |
The CIE 1931 xy color gamut chart represents the set (area) of colors that a display can reproduce, with the sRGB colorspace (the highlighted triangle) serving as reference. The chart also provides a visual representation of a display's color accuracy. The small squares across the boundaries of the triangle are the reference points for the various colors, while the small dots are the actual measurements. Ideally, each dot should be positioned on top of its respective square. The 'x: CIE31' and 'y: CIE31' values in the table below the chart indicate the position of each measurement on the chart. 'Y' shows the luminance (in nits) of each measured color, while 'Target Y' is the desired luminance level for that color. Finally, 'ΔE 2000' is the Delta E value of the measured color. Delta E values of below 2 are ideal.
These measurements are made using Portrait Displays' CalMAN calibration software.
The Color accuracy chart gives an idea of how close a display's measured colors are to their referential values. The first line holds the measured (actual) colors, while the second line holds the reference (target) colors. The closer the actual colors are to the target ones, the better.
These measurements are made using Portrait Displays' CalMAN calibration software.
The Grayscale accuracy chart shows whether a display has a correct white balance (balance between red, green and blue) across different levels of grey (from dark to bright). The closer the Actual colors are to the Target ones, the better.
These measurements are made using Portrait Displays' CalMAN calibration software.
