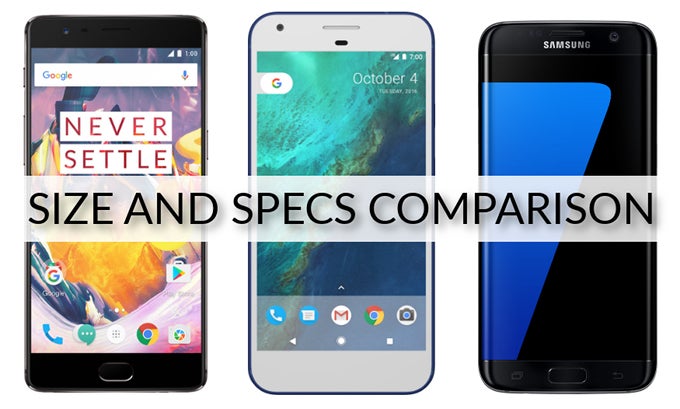

OnePlus 3T vs Google Pixel XL vs Samsung Galaxy S7 edge: specs and size comparison

6comments
Poof! The OnePlus 3T is no longer a figment of our collective wishful thinking. The device became official yesterday, November 15, after a low-key announcement.

The new handset improves the specs of the phone in a few key areas - it has a larger battery crammed in the same body, snappier chipset, new 128GB storage option, as well as a large 16MP front-facing camera (up from 8MP). You can get all that for $439, $40 more than the price OnePlus 3 featured at launch.

While it's gradually escaping its ultra-affordable origins, OnePlus has still kept the price of its newest phone pleasantly low. It's not the best deal on a Snapdragon 821 device we've seen, but it will probably end up being a great value for money to those folks not willing to spend $769 or more on a Google Pixel XL.

Here's how the OnePlus 3T fares against the Google Pixel XL in our specs and size comparison combo. We've also thrown in a Galaxy S7 edge for good measure in there, too. First up, we will have to take the size comparison out of the way.

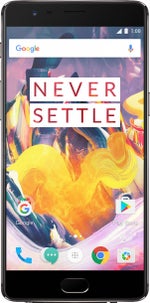

OnePlus 3T
Dimensions

6.01 x 2.94 x 0.29 inches

152.7 x 74.7 x 7.35 mm

Weight

5.57 oz (158 g)

Google Pixel XL
Dimensions

6.09 x 2.98 x 0.34 inches

154.72 x 75.74 x 8.6 mm

Weight

5.93 oz (168 g)

Samsung Galaxy S7 edge
Dimensions

5.94 x 2.86 x 0.3 inches

150.9 x 72.6 x 7.7 mm

Weight

5.54 oz (157 g)

OnePlus 3T
Dimensions

6.01 x 2.94 x 0.29 inches

152.7 x 74.7 x 7.35 mm

Weight

5.57 oz (158 g)

Google Pixel XL
Dimensions

6.09 x 2.98 x 0.34 inches

154.72 x 75.74 x 8.6 mm

Weight

5.93 oz (168 g)

Samsung Galaxy S7 edge
Dimensions

5.94 x 2.86 x 0.3 inches

150.9 x 72.6 x 7.7 mm

Weight

5.54 oz (157 g)

See the full OnePlus 3T vs Google Pixel XL vs Samsung Galaxy S7 edge size comparison or compare them to other phones using our Size Comparison tool.

Done yet? Now let's inspect the specs sheets of the three devices and see which one offers the very best bang for the buck:

OnePlus 3T Google Pixel XL Samsung Galaxy S7 edge

Design

Dimensions
6.01 x 2.94 x 0.29 inches
152.7 x 74.7 x 7.35 mm
6.09 x 2.98 x 0.34 inches
154.72 x 75.74 x 8.6 mm
5.94 x 2.86 x 0.30 inches
150.9 x 72.6 x 7.7 mm
Weight
5.57 oz (158.0 g) 5.93 oz (168.0 g) 5.54 oz (157.0 g)
Materials
Back: Aluminum Back: Aluminum, Glass Back: Glass (Corning Gorilla Glass 4)
Frame: Aluminum
Resistance
Splash, Dust; IP53 Water, Dust; IP68
Biometrics
Fingerprint (touch) Fingerprint (touch) Fingerprint (touch)
Features
Notification light Touch sensitive control keys
Keys
Left: Volume control, Other; Right: Lock/Unlock key Right: Volume control, Lock/Unlock key Left: Volume control; Right: Lock/Unlock key
Colors
Black, Gold, Gray Black, Gray, Blue Black, Gold, Silver, White, Pink gold, Black pearl, Coral blue

Display

Size
5.5-inch 5.5-inch 5.5-inch
Resolution
1920x1080px, 401 PPI 2560x1440px, 16:9 ratio, 534 PPI 2560x1440px, 534 PPI
Technology
Super AMOLED AMOLED Super AMOLED
Screen-to-body
73.15 % 71.22 % 76.09 %
Features
Scratch-resistant glass (Corning Gorilla Glass 4), Ambient light sensor, Proximity sensor Oleophobic coating, Scratch-resistant glass (Corning Gorilla Glass 4), Ambient light sensor, Proximity sensor Scratch-resistant glass (Corning Gorilla Glass 4), Ambient light sensor, Proximity sensor

Hardware

System chip
Qualcomm Snapdragon 821 MSM8996 Pro Qualcomm Snapdragon 821 MSM8996 Pro Qualcomm Snapdragon 820 MSM8996 (14 nm)
Processor
Quad-core
2350 MHz
Kryo
Quad-core
2150 MHz
Kryo
Quad-core
2200 MHz
Kryo
GPU
Adreno 530 Adreno 530 Adreno 530
RAM
6GB (LPDDR4) 4GB (LPDDR4) 4GB (LPDDR4)
Internal storage
128GB 128GB 32GB, available to use: 24.4 GB
Storage expansion
not expandable microSDXC up to 200 GB
OS
Android (9.0 Pie, 7.1 Nougat, 7.0 Nougat, 6.0 Marshmallow), OnePlus OxygenOS UI Android (10, 9.0 Pie, 8.1 Oreo, 8.0 Oreo, 7.1 Nougat) Android (8.0 Oreo, 7.0 Nougat, 6.0 Marshmallow), Samsung TouchWiz UI

Battery

Capacity
3400 mAh 3450 mAh 3600 mAh
Type
Li - Ion Li - Ion Li - Ion
Charging
OnePlus Dash Charge USB Power Delivery Qualcomm Quick Charge 2.0, Qi and Powermat wireless charging

Camera

Rear
Single camera Single camera Single camera
Main camera
16 MP (Sapphire crystal lens cover, OIS, PDAF)
Aperture size: F2.0
Pixel size: 1.12 μm
12.3 MP (Laser and PDAF)
Aperture size: F2.0
Sensor size: 1/2.3"
Pixel size: 1.55 μm
12 MP (OIS, PDAF)
Aperture size: F1.7
Focal length: 26 mm
Sensor size: 1/2.5"
Pixel size: 1.4 μm
Flash
LED Dual LED LED
Video recording
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps), 1280x720 (HD) (120 fps)
OIS, EIS, Video calling, Video sharing
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (120 fps), 1280x720 (HD) (240 fps)
Video calling, Video sharing
3840x2160 (4K UHD) (30 fps), 1920x1080 (Full HD) (60 fps), 1280x720 (HD) (240 fps)
HDR, Picture-taking during video recording, Video calling, Video sharing
Front
16 MP, Video capture: 1920x1080 (Full HD) 8 MP, Video capture: 1920x1080 (Full HD) 5 MP (HDR)

Connectivity & Features

Bluetooth
4.2 4.2 4.2
WLAN
802.11 a,b,g,n,ac,dual-band
Wi-Fi Direct, Hotspot
802.11 b,g,n,ac,dual-band
MIMO, Wi-Fi Direct, Hotspot
802.11 a,b,g,n,ac,dual-band,e
Multiple antennas, MIMO, Wi-Fi Direct, Hotspot
USB
Type-C, USB 2.0 Type-C, USB 3.0 microUSB, USB 2.0
Hearing aid compatible
M4/T4 M4/T3
Location
GPS, A-GPS, Glonass, BeiDou GPS, A-GPS, Glonass GPS, A-GPS, Glonass
Sensors
Accelerometer, Gyroscope, Compass, Hall (for flip covers) Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer
Other
NFC, Tethering, Computer sync, OTA sync NFC, UMA (Wi-Fi Calling), Tethering, Computer sync, OTA sync NFC, ANT+, UMA (Wi-Fi Calling), Tethering, Computer sync, OTA sync

Multimedia

Headphones
3.5mm jack 3.5mm jack 3.5mm jack
Speakers
Earpiece, Loudspeaker Earpiece, Loudspeaker Earpiece, Loudspeaker
Features
Album art cover, Background playback Album art cover, Background playback Album art cover, Background playback
Screen mirroring
Wireless screen share
Additional microphone(s)
Noise cancellation Noise cancellation Noise cancellation

Cellular

4G (FDD)
Bands 1(2100), 3(1800), 5(850), 7(2600), 8(900), 20(800 DD) Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 17(700 b), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS) Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 18(800 Lower), 19(800 Upper), 20(800 DD), 29(700 d), 30(2300 WCS)
4G (TDD)
Bands 38(2600), 40(2300) Bands 41(2600+) Bands 38(2600), 39(1900+), 40(2300), 41(2600+)
3G
Bands 5(850), 8(900), 2(1900), 1(2100) Bands 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100) Bands 1(2100), 2(1900), 4(1700/2100), 5(850)
Data Speed
LTE-A Cat 6 (300/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s LTE-A Cat 11 (600/75 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA, UMTS LTE-A Cat 9 (450/50 Mbit/s), HSPA
Dual SIM
Yes
SIM type
Nano SIM Nano SIM Nano SIM
HD Voice
Yes Yes
VoLTE
Yes

Regulatory Approval

FCC approval
Date approved: Feb 12, 2017
FCC ID value: NM8G-2PW2100
Date approved: Feb 12, 2016
FCC ID value: A3LSMG935F
Measured SAR
Head: 0.89 W/kg
Measured in: 1900 MHz
Body: 0.56 W/kg
Measured in: 1900 MHz
Simultaneous Transmission: 1.15 W/kg
Wireless Router: 0.56 W/kg
Head: 0.27 W/kg
Body: 0.66 W/kg
Simultaneous Transmission: 1.59 W/kg
Wireless Router: 0.96 W/kg

Buyers information

MSRP
$ 479 $ 869 $ 799

Availability

Officially announced
Nov 15, 2016 Oct 04, 2016 Feb 21, 2016
