Sony outs 21-megapixel IMX230 sensor with 192-point autofocus for fast objects, can we say Z4?


Sony just launched what might be its best smartphone camera sensor yet, the 21 MP stacked IMX230 where the company uses image plane phase detection autofocus for the first time in a phone sensor. This plane phase detection tech is borrowed from mirrorless interchangeable-lens cameras, and, with its 192 AF points, will allow for blur-free tracking and snapping of fast moving objects, like kids, cars or pets.

Furthermore, the new Exmor RS IMX230 will now shoot not only real-time HDR video as before, be it in 4K, but also real-time HDR images, similar to Samsung's S5 and Note 4 handsets, which would bring out darker areas, and tone down bright ones for a more even exposure throughout the frame.

The company also said that it will be making a 16 MP sensor with the same image plane detection AF tech, which might go into midrangers we guess, and that would be a heck of a midranger. The 21 MP IMX230 is 1/2.4" in size, which is a tad smaller than the 1/2.3" in the Z3, for instance, but the difference is negligible.

We will see how these more than 20 million 1.12 micron pixels behave in terms of noise suppression and low-light performance on that confined space, but at least on theory the new sensor sounds mighty promising, and hopefully we will see it in the upcoming Z4, as Sony states it will be put in mass production April 2015.


Sony Launches Exmor RS

The Industry's First Stacked CMOS Image Sensor with an Image Plane Phase Detection Signal Processing Function for High-Speed AF

Tokyo, Nov 17, 2014 (JCN Newswire via COMTEX) -- Sony Corporation today announces the commercialization of the Exmor RS IMX230 for smartphone cameras and other devices requiring increasingly sophisticated image-capture functionality. With 21 effective megapixels, this stacked CMOS imaging sensor features compact size, higher image quality, and improved functionality. This is the industry's first CMOS image sensor for smartphones to be equipped with an onboard image plane phase detection AF signal processing function to achieve excellent focus tracking of fast-moving subjects. The High Dynamic Range (HDR) function, which captures both backgrounds and subjects clearly and vividly even in high-contrast scenes such as backlit locations, now supports high-resolution still images and 4K video recording. This new CMOS image sensor will ship in April 2015.

Rather than the traditional back-illuminated CMOS image sensor's support substrate, the Exmor RS uses a chip consisting of signal processing circuits, on top of which is stacked a pixel section consisting of back-illuminated pixels for an original stacked construction. This kind of stacked CMOS imaging sensor, which delivers superior image quality and high functionality in a compact size, was first commercialized by Sony in 2012.

The new IMX230 is a type 1/2.4 stacked CMOS image sensor with a significantly improved 21 effective megapixels, and it is also equipped with a newly developed signal processing function. These features fulfill the growing needs in smartphone photography for high-speed autofocus (image plane phase detection AF) and clear, high-quality capture of bright and dark areas even in backlit scenes (HDR imaging). Image plane phase detection AF is a technology used in mirrorless interchangeable-lens cameras, and HDR imaging now supports not only 4K (4096 x 2160) high-resolution videos but also still images. Sony also plans to extend the lineup by adding a 16 effective megapixels stacked CMOS image sensor equipped with image plane phase detection AF and HDR imaging functions by the end of the next fiscal year.

IMX230 Main Features

Image plane phase detection AF

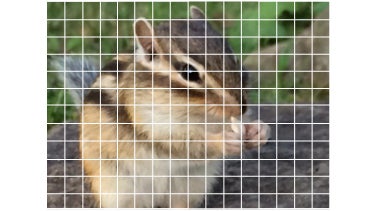

This function enables the camera to capture quick-moving subjects and makes accurate, high-speed autofocus tracking possible when shooting still images and videos, such as kids and animals constantly on the move and other fast subjects including athletes at sporting events. Dedicated image plane phase detection AF pixels are discretely incorporated into the screen of the image sensor, and the distance to the subject (range) and lens position for focusing are calculated based on the information obtained from these dedicated pixels. Up to 192 AF points can be used. All of this is instantaneously carried out by the stacked CMOS image sensor's internal image processing circuits, making it easy to enjoy shooting photos and videos of fast-moving subjects on a smartphone or other device.

High Dynamic Range (HDR) imaging

This function enables the camera to record still images and videos that reproduce details and rich gradations in the highlights and shadows of high-contrast scenes, such as those found in backlit environments. This is made possible by setting two different exposure conditions and applying the appropriate signal processing to the image information obtained from each condition. Through improved pixel placement and signal processing, this new HDR imaging function is now compatible with both video recording and, by popular demand, still image capture, the latter a feature that was not available previously(1). The enhanced resolution and generation of images with a wide dynamic range enable a high level of visibility and the production of images with vivid backgrounds and subjects, even in backlit conditions. This function is also compatible with 4K (4096 x 2160) high-resolution video recording.

Note:

(1) The HDR movie function announced on January 23, 2012 supported video recording only.


source: Sony
