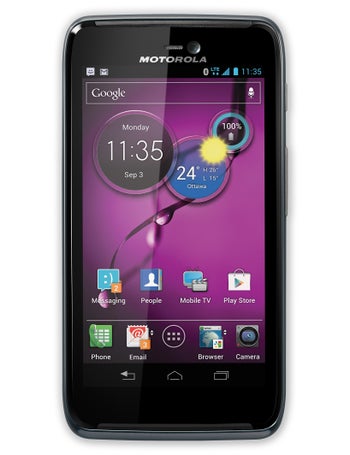

Motorola ATRIX HD

Full Specifications

Released · Jul 15, 2012

4.5-inch · 1280x720px

Single camera

1780 mAh

1GB

Qualcomm Snapdragon S4 Plus

Android 4.1

This device is also known as Motorola MB886, Motorola ATRIX 3, Motorola Dinara, Motorola ATRIX HD LTE

8.0

Read Motorola ATRIX HD Review

8.9

Read All User Reviews (10)

I want it 15 users

I have it 15 users

I had it 33 users

Popular Comparisons

The Motorola ATRIX HD is most commonly compared with these phones:

Design
Dimensions	5.26 x 2.75 x 0.33 inches 133.5 x 69.9 x 8.4 mm
Weight	4.94 oz (140.0 g)
Materials	Back: Kevla
Keys	Right: Volume control, Lock/Unlock key
Colors	Gray, White

Display
Size	4.5-inch
Resolution	1280x720px, 326 PPI
Technology	TFT
Screen-to-body	59.82 %
Features	Scratch-resistant glass, Ambient light sensor, Proximity sensor

Hardware
System chip	Qualcomm Snapdragon S4 Plus MSM8960
Processor	Dual-core 1500 MHz Krait
GPU	Adreno 225
RAM	1GB (DDR2)ROM: 8192 MB
Storage expansion	microSDHC up to 32 GB
OS	Android (4.1, 4.0)

Battery
Capacity	1780 mAh
Type	Li - Polymer

Camera
Rear	Single camera
Main camera	8 MP (Autofocus)
Flash	LED
Video recording	1920x1080 (Full HD) (30 fps) Video calling
Front	1.3 MP

Connectivity & Features
Bluetooth	4.0, Yes
WLAN	802.11 a,b,g,n Hotspot
USB	microUSB, USB 2.0
Hearing aid compatible	M3/T3
HDMI	Micro HDMI (Type D)
Location	GPS, A-GPS
Sensors	Accelerometer, Compass
Other	Computer sync, OTA sync

Multimedia
Headphones	3.5mm jack
Speakers	Earpiece, Loudspeaker
Features	Album art cover, Background playback
Additional microphone(s)	Noise cancellation, Video recording

Cellular
4G (FDD)	Bands 4(AWS-1), 17(700 b)
3G	Bands 5(850), 4(1700/2100), 2(1900)
Data Speed	LTE, HSDPA+ (4G) 21.1 Mbit/s, HSUPA 5.76 Mbit/s, UMTS
SIM type	Micro SIM

Phone Features
Notifications	Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
Other features	Voice dialing, Voice commands, Voice recording, TTY/TDD

Regulatory Approval
FCC approval	Date approved: Jun 14, 2012 FCC ID value: IHDP56MB4
Measured SAR	Head: 1.34 W/kg Body: 0.67 W/kg Simultaneous Transmission: 1.55 W/kg Wireless Router: 1.49 W/kg

Availability
Officially announced	Jul 10, 2012

Despite our efforts to provide full and correct Motorola ATRIX HD specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please

LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.

Carrier Availability

Discontinued

AT&T

News

The Motorola Atrix HD is almost three years old. In November 2013, with the device more than a year old, Motorola stunned users by telling them that the phone would be updated from Android 4.1 to Android 4.4. But the manufacturer now says that the ch...

Owners of the Motorola Atrix HD get $100 off the second-gen Motorola Moto X Pure Edition

So which smartphone has the most satisfied owners in the U.S.? The Apple iPhone 5? Guess again. The Samsung Galaxy S III? Nope. 93,825 U.S. smartphone owners were asked how satisfied they were with their current smartphone and the winner was the Moto...

User satisfaction poll winner in the U.S. is the Motorola ATRIX HD

Forget the Mayan apocalypse, this is apparently the week of Jelly Bean updates. Just moments after getting reports that Verizon customers were seeing Android 4.1 headed to their handsets, AT&T is announcing that the Atrix HD is getting its Jelly ...

AT&T's Atrix HD getting a serving of Jelly Bean as well

Last month we found out that Motorola would be updating the Motorola ATRIX HD to Android 4.1. And that is why owners of the handset are excited to be hearing that they have been invited to take part in a soak test for the model. For those who are una...

Motorola ATRIX HD is ready for a soak test; will it be Android 4.1?

Links

Motorola ATRIX HD Review

Overall User Rating

(10 reviews)

8.9

Build quality

9.2

Camera quality

8.2

Performance

Display

9.5

Battery life and charging

nathanlacker

Not the best, not the worst.

Edited: Feb 11, 2014, 1:38 PM

Phone owned for less than a month

This was horrible when I first had it. All the stock apps and the stock rom and just everything was bad. It lagged, it was slow. Data had trouble connecting. It was just bad. Since then I have added cyanogenmod and it is such an improvement. Much snappier. Minimal lag. No reception problems. But in its stock form, it needs a lot of improvement.

WillG

Arena Apprentice

A Pretty Good to Really Good Phone

Posted: Sep 06, 2013, 11:19 AM

Phone owned for more than a year

The Phone is pretty good. Sometimes it is great, but the battery can drain really fast, which is not good.

My camera on my replacement Atrix HD is not very good. My Atrix HD camera can NOT hold a candle to my wife's HTC One (That phone has a great camera).

But the Atrix HD does have really good reception and Very good Call quality; any cell phone that can't achieve a 9 or higher in that category should kick itself in the gut and call itself a "Nano Tablet".

snowgator

Arena Master

A quality effort from Moto.

Posted: Jun 15, 2013, 5:32 PM

Phone owned for less than 3 months

I am a long standing Moto fan, so when my son had to warrenty out his Sony Experia TL and they had none to replace it with, we lept onto the Atrix HD when offered in t's place. No, the battery life is not as bad as some will claim. Yes, it is not as good as some other smart phones. But the screen is great, call quality is good (a true step back from Sony, which has about the best call quality of any manufacturer), and the performance is very dependable. I like the UI, I find it a great compliment to the Android OS. I think the camera is average but a good shooter. As I write this, this is now a "mid range" type device. It's a great device for use as a basic smartphone. It is okay with multi-media, but I would not advise it for those who want a ton of movies/streaming videos. But for web surfing, uploading to social sites, and music I find it a good buy.
