LG Optimus L9 T-Mobile

Oct 8, 2012
Market status
Release date
Oct 31, 2012

US carrier availability

Discontinued: T-Mobile


No pros


  • Low pixel density screen (245 ppi)
  • Too little RAM memory (1024 MB RAM)
  • Low-resolution camera (5 megapixels)
  • Lacks an ambient light sensor for automatic screen brightness adjustment

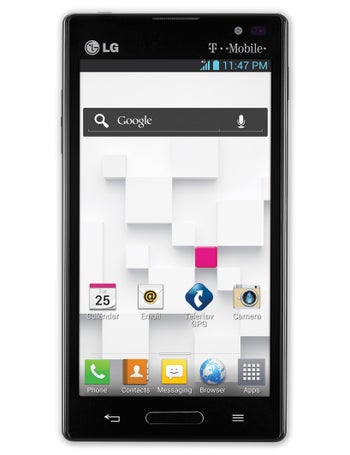

This is T-Mobile's version of the LG Optimus L9 which leapfrogs over the previous flagship of the line and is equipped with a 4.7 inch IPS display. Under the hood is a dual-core 1GHz processor with 1GB of RAM on board and a 5MP camera on back. A VGA shooter is on front. A 2150mAh battery keeps things humming and Android 4.0 is installed.

Do you ...?

Unlock this phone Compare


  • Device type:
    • Smart phone
  • OS:
    • PopupAndroid (4.1.2, 4.0)
  • Dimensions:
    • 5.03 x 2.63 x 0.36 inches (128 x 67 x 9 mm)
  • Weight:
    • 4.2 oz (119 g)
      the average is 5.1 oz (144 g)


  • Physical size:
    • 4.5 inches
  • Resolution:
    • 540 x 960 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 245 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • IPS LCD
  • Screen-to-body ratio:
    • 65.41 %
  • Touchscreen:
      • Multi-touch
  • Features:
    • Proximity sensor, Scratch-resistant glass


  • Camera:
      • Popup5 megapixels
    • Flash:
      • LED
    • Features:
      • Autofocus, Digital zoom, Geo tagging, Voice activation
    • Settings:
      • ISO control, White balance presets
    • Shooting Modes:
      • Burst mode, Panorama
  • Camcorder:
      • 1920x1080 (1080p HD)
    • Features:
      • Video calling
  • Front-facing camera:
      • 0.3 megapixels VGA


  • System chip:

    System chip - Most modern handsets use an advanced chip that includes many of the device’s hardware modules like the processor, Wi-Fi, Bluetooth and sometimes even the wireless radio. This field shows what particular system chip (or System-on-a-Chip) is used in the phone.

    • TI OMAP4430
  • Processor:

    Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.

    • Dual core, 1000 MHz, ARM Cortex-A9
  • Graphics processor:
      • PowerVR SGX540
  • System memory:

    System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.

    • 1024 MB RAM
  • Built-in storage:
    • 4 GB
  • Storage expansion:
    • microSD, microSDHC up to 32 GB


  • Talk time:
    • 5.00 hours
      the average is 13 h (770 min)
  • Stand-by time:
    • 28.0 days (672 hours)
      the average is 18 days (432 h)
  • Capacity:
    • 2150 mAh


  • Music player:
    • Filter by:
      • Album, Artist, Playlists
    • Features:
      • Album art cover, Background playback
  • Speakers:
    • Earpiece, Loudspeaker
  • YouTube player:
    • Yes

Internet browsing

  • Built-in online services support:
    • YouTube (upload), Picasa/Google+


  • GSM:
    • 850, 900, 1800, 1900 MHz
  • UMTS:
    • 1700/2100 MHz
  • Data:
    • HSPA (unspecified), UMTS, EDGE, GPRS
  • Positioning:

    Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.

    • A-GPS
  • Navigation:
    • Turn-by-turn navigation
specifications continue after the ad


  • Bluetooth:
      • 3.0
  • Wi-Fi:
      • Yes
    • Mobile hotspot:
      • Yes
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • Mass storage device, USB charging
  • Other:
    • DLNA, UMA (Wi-Fi Calling), Computer sync, OTA sync

Other features

  • Notifications:
    • Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
  • Sensors:
      • Accelerometer
  • Hearing aid compatibility:
      • M4, T3
    • Voice dialing, Voice commands, Voice recording


  • Officially announced:
    • 08 Oct 2012

To see the full specifications with in-depth details click here.

This device is also known as LG P769

Despite our efforts to provide full and correct LG Optimus L9 T-Mobile specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.
