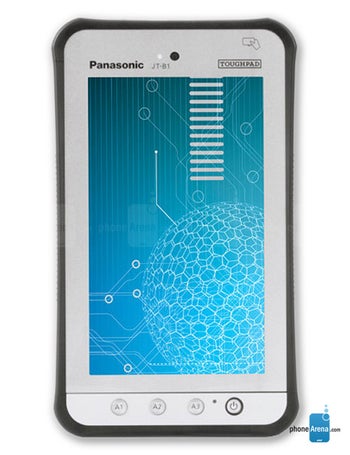

Panasonic Toughpad JT-B1

Posted
Jan 11, 2013
Market status
Released

Pros

  • High-resolution camera (13 megapixels)
  • Dual core processor
  • Fast mobile data support (4G)
  • NFC
  • HDMI connector for TV-out (Micro HDMI (Type D))
  • Water-resistant phone

Cons

  • Low pixel density screen (170 ppi)
  • Battery is not user replaceable
  • The camera lacks flash
  • Lacks an ambient light sensor for automatic screen brightness adjustment

Share

embed

Description

The Panasonic Toughpad JT-B1 runs Android 4.0 Ice Cream Sandwich and comes with a 7-inch, 1024 by 600 pixel screen. Under the hood we see a TI OMAP4460 dual-core system-on-a-chip running at 1.5GHz. There's also a gig of RAM and 16GB of storage tucked in there, in addition to a 13-megapixel main camera on the back and a 1.3MP snapper on the front side. All of the usual connectivity features come standard.

Do you ...?




Unlock this phone Compare

Design

  • Device type:
    • Tablet
  • OS:
    • Android (4.0)
  • Weight:
    • 33.60 oz (952 g)
      the average is 14.5 oz (413 g)
  • Rugged:
      • Water, Dust, Shock resistant
    • MIL-STD-810 certified:
      • Yes

Display

  • Physical size:
    • 7.0 inches
  • Resolution:
    • 1024 x 600 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 170 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • LCD
  • Colors:
    • 16 777 216
  • Touchscreen:
      • Multi-touch
  • Features:
    • Scratch-resistant glass

Camera

  • Camera:
      • 13 megapixels
    • Features:
      • Autofocus, Digital zoom, Geo tagging
  • Camcorder:
      • Yes
  • Front-facing camera:
      • 1.3 megapixels

Hardware

  • System chip:

    System chip - Most modern handsets use an advanced chip that includes many of the device’s hardware modules like the processor, Wi-Fi, Bluetooth and sometimes even the wireless radio. This field shows what particular system chip (or System-on-a-Chip) is used in the phone.

    • TI OMAP4460
  • Processor:

    Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.

    • Dual core, 1500 MHz, ARM Cortex-A9
  • Graphics processor:
      • PowerVR SGX540
  • System memory:

    System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.

    • 1024 MB RAM
  • Built-in storage:
    • 16 GB
  • Storage expansion:
    • microSD, microSDHC up to 32 GB

Battery

  • Not user replaceable:
    • Yes

Multimedia

  • Music player:
    • Filter by:
      • Album, Artist, Playlists
    • Features:
      • Album art cover, Background playback
  • Video playback:
    • Features:

      Features - Shows any special features of the particular phone's multimedia

      • Stretch to fullscreen
  • Speakers:
    • Loudspeaker

Internet browsing

  • Built-in online services support:
    • YouTube (upload), Picasa/Google+

Technology

  • Data:
    • LTE
  • Positioning:

    Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.

    • GPS
  • Navigation:
    • Yes
specifications continue after the ad

Connectivity

  • Bluetooth:
      • 2.1, EDR
  • Wi-Fi:
      • 802.11 a, b, g, n
    • Mobile hotspot:
      • Yes
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
  • HDMI:
      • Micro HDMI (Type D)
  • Other:
    • NFC, Computer sync, OTA sync

Other features

  • Sensors:
      • Accelerometer, Compass
    • Voice commands, Voice recording

To see the full specifications with in-depth details click here.


Despite our efforts to provide full and correct Panasonic Toughpad JT-B1 specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.
