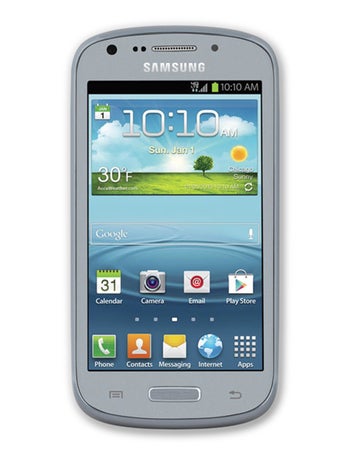

Samsung Galaxy Axiom

Posted
Oct 29, 2012
Market status
Released
Release date
Nov 28, 2012

US carrier availability

Discontinued: U.S. Cellular, Cricket

Pros

  • Fast mobile data support (4G)

Cons

  • Low pixel density screen (233 ppi)
  • Low-resolution camera (5 megapixels)

Share

embed

Description

Samsung Galaxy Axiom is a mid-range device quite similar to the Galaxy S III mini. There are, however, a few notable differences between the two. To start, there is no word of an AMOLED panel being present on its front. Instead, the Samsung Galaxy Axiom is equipped with a 4-inch TFT screen offering 480 by 800 pixels of resolution. The processor inside it is a dual-core chip running at 1.2GHz. You also get a pair of cameras – a 5-megapixel one with LED flash on the back and a 1.3MP cam for video chats up front. Further down the specs sheet we see 4GB of internal storage that can be expanded by popping in a microSD card and a 2,100mAh battery good for 7.5 hours of talk time. Android 4.0 Ice Cream Sandwich comes pre-loaded with goodies like S Beam and S Voice. Last but not least the Galaxy Axiom runs on the U.S. Cellular 4G LTE network for speedy internet access.

Do you ...?




Compare

Design

  • Device type:
    • Smart phone
  • OS:
    • Android (4.1.2, 4.0)
  • Dimensions:
    • 4.79 x 2.51 x 0.47 inches (122 x 64 x 12 mm)
  • Weight:
    • 4.8 oz (136 g)
      the average is 5.3 oz (151 g)

Display

  • Physical size:
    • 4.0 inches
  • Resolution:
    • 480 x 800 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 233 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • TFT
  • Screen-to-body ratio:
    • 58.71 %
  • Features:
    • Light sensor, Proximity sensor

Camera

  • Camera:
      • 5 megapixels
    • Flash:
      • LED
    • Hardware Features:
      • Autofocus
    • Software Features:
      • Smile detection, Digital zoom, Geo tagging
    • Shooting Modes:
      • Panorama, Scenes
  • Camcorder:
      • 1280x720 (720p HD)
  • Front-facing camera:
      • 1.3 megapixels

Hardware

  • System chip:

    System chip - Most modern handsets use an advanced chip that includes many of the device’s hardware modules like the processor, Wi-Fi, Bluetooth and sometimes even the wireless radio. This field shows what particular system chip (or System-on-a-Chip) is used in the phone.

      • Qualcomm Snapdragon
  • Processor:

    Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.

    • Dual-core, 1200 MHz, Krait
  • Graphics processor:
      • Yes
  • Built-in storage:
    • 4 GB
  • Maximum User Storage:
    • 1.85 GB
  • Storage expansion:
    • microSD, microSDHC up to 32 GB

Battery

  • Capacity:
    • 2100 mAh
  • User replaceable:
    • Yes
  • Talk time:
    • 8.00 hours
      the average is 14 h (838 min)
  • Stand-by time:
    • 10.4 days (250 hours)
      the average is 16 days (389 h)

Multimedia

  • Mirroring:
    • DLNA
  • Music player:
    • Filter by:
      • Album, Artist, Playlists
    • Features:
      • Album art cover, Background playback
  • Speakers:
    • Earpiece, Loudspeaker

Cellular

  • CDMA:

    CDMA - Code Division Multiple Access. A technique of multiplexing, also called spread spectrum, in which analog signals are converted into digital form for transmission. For each communication channel, the signals are encoded in a sequence known to the transmitter and the receiver for that channel. The foremost application is digital cellular phone technology from QUALCOMM that operates in the 800MHz band and 1.9GHz PCS band. CDMA phones are noted for their excellent call quality and long battery life.

    • 800, 1700/2100, 1900 MHz
  • FDD LTE:
    • 700 (band 17), 850 (band 5), 1700/2100 (band 4), 1900 (band 2) MHz
  • Data:
    • LTE

Phone features

  • Sensors:
      • Accelerometer
  • Notifications:
    • Haptic feedback, Music ringtones (MP3), Polyphonic ringtones (72 voices), Vibration, Flight mode, Silent mode, Speakerphone
  • Hearing aid compatibility:
      • M4
  • Other features:
    • Voice dialing, Voice commands, Voice recording, TTY/TDD
specifications continue after the ad

Connectivity

  • Bluetooth:
      • 4.0
  • Wi-Fi:
      • Yes
    • Mobile hotspot:
      • Yes
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • Mass storage device, USB charging
  • Positioning:

    Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.

    • GPS, A-GPS
  • Navigation:
    • Turn-by-turn navigation
  • Other:
    • NFC, Tethering, Computer sync, OTA sync

Regulatory Approval

  • FCC approval:

    FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.

    • Date approved:

      Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission

      • 25 Oct 2012
      • FCC ID value:

        FCC ID value - Shows the FCC Identifying value of the particular phone

        A3LSCHR830 link
  • FCC measured SAR:

    FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).

    • Head:
      • 0.37 W/kg
    • Body:
      • 0.61 W/kg
    • Product Specific Use:
      • 0.86 W/kg
    • Simultaneous Transmission:
      • 1.28 W/kg

To see the full specifications with in-depth details click here.

This device is also known as Samsung SCH-R830, Samsung Galaxy Admire 2


Despite our efforts to provide full and correct Samsung Galaxy Axiom specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.
