Posted: 16 Mar 2010 Announced: 15 Mar 2010
Market Status: Released
Release date: 18 Apr 2010
Do you ...?
Want it3 Have it2 Had it4
US carrier availability: AT&T - Discontinued
Links: Pantech Link manual Pantech Link Official Page Pantech Link Review

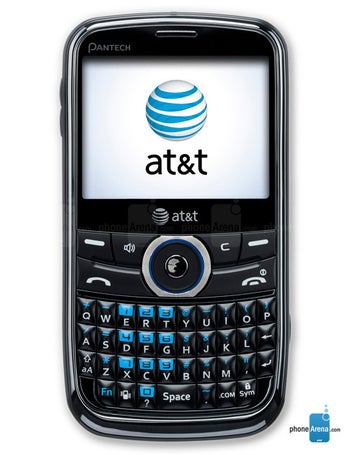

The Pantech Link is a slim, full QWERTY device with features such as Mobile Email, instant messaging, AT&T Mobile Share, AT&T Social Net, AT&T Navigator.

Rating

Good 7 out of 10

Average

6.3 out of 10

Show Full Specs Compare

Pantech Link specifications

also known as Pantech P7040p

Pros

Small dimensions (4.54 x 2.40 x 0.39 inches)

Cons

Low pixel densitiy screen, below 180ppi (167 ppi)
Slow data means slow Internet browsing (UMTS, EDGE)
Low-resolution camera (1.3 megapixels)
The camera lacks autofocus
Low-resolution video capture
Lacks a standard (3.5mm) headphones jack
Lacks an ambient light sensor for automatic screen brightness adjustment

Design

Device type:
- Feature phone
Form factor:
Form factor - Refers to the form factor of a phone. The main handset designs are bar, clamshell, slide, swivel
- Candybar
Dimensions:
- 4.54 x 2.40 x 0.39 (115.2 x 60.9 x 9.9 mm )
Weight:
- 3.21 oz (91 g)
  the average is 4.2 oz (120 g)

Display

Physical size:
- 2.40 inches
Resolution:
- 320 x 240 pixels
Pixel density:
Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.
- 167 ppi
Technology:
Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.
- TFT
Colors:
Colors - Shows the number of colors that the display supports
- 262 144

Battery

Talk time:
Talk time - Maximum talk time in hours
- 3.00 hours
  the average is 8 h (497 min)
Stand-by time:
- 10.4 days (250 hours)
  the average is 21 days (496 h)
Capacity:
- 930 mAh

Hardware

Storage expansion:
- Slot Type:
  - microSD, microSDHC
- Maximum card size:
  Maximum card size - Shows the capacity of the memory expansion slot that can be added
  - 32 GB

Camera

Camera:
- - 1.3 megapixels
- Features:
  - Exposure control, White balance, Effects, Self-timer
Camcorder:
- - 320x240 (QVGA) (15 fps)
- Features:
  - Video sharing

Multimedia

Music player:
- Filter by:
  - Playlists
- Features:
  - Music recognition, Preset equalizer

Internet browsing

Browser:
- - Yes

Technology

GSM:
GSM - Global System for Mobile communications. A world standard for digital cellular communications using narrowband TDMA (Time Division Multiple Access), which allows up to eight calls at a time on 800 MHz and 1800 MHz frequencies. Introduced in 1991. Is the standard most commonly used in Europe and Asia, but not in the United States. GSM phones use a Subscriber Identity Module (SIM) smart card that contains user account information. Any GSM phone becomes immediately programmed after plugging in the SIM card, thus allowing GSM phones to be easily rented or borrowed.
- 850, 900, 1800, 1900 MHz
UMTS:
UMTS - Universal Mobile Telecommunications Service, also called WCDMA, is a 3G (Third Generation) packet-based transmission of text, digitized voice, video, and multimedia at data rates up to 2 Mbps. It is based on GSM standard and is supported by major standards bodies and manufacturers
- 850, 1900 MHz
Data:
Data - Shows the particular phone's type of data. the major mobile phone data types are GPRS, CDMA2000 1xRTT, EDGE, CDMA2000 1xEV-DO, UMTS, etc.
- UMTS, EDGE
Positioning:
Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.
- A-GPS
Navigation:
- Yes

Phone features

Phonebook:
- 1000 entries, Caller groups, Multiple numbers per contact, Picture ID
Organizer:
- Calendar, Alarm, To-Do, Calculator, Unit converter, Stopwatch, Notepad
Messaging:
- SMS, MMS, Predictive text input
E-mail:
- - Yes

Connectivity

Bluetooth:
- - 2.0
USB:
- - Yes
- Features:
  Features - Universal Serial Bus - is a plug-and-play interface for connection a computer and add-on devices such as joysticks, keyboards, wireless phones, scanner, cameras etc. USB supports hot-swap (ability to add a new device without having to reboot the computer). USB supports data speed of 12 megabits per second.
  - Mass storage device
- Computer sync

Other features

Notifications:
- Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
- Voice recording, TTY/TDD

Availability

Officially announced:
- 15 Mar 2010

Shopping information

MSRP price:
- - 10 $

To see the full specifications with in-depth details click here.
