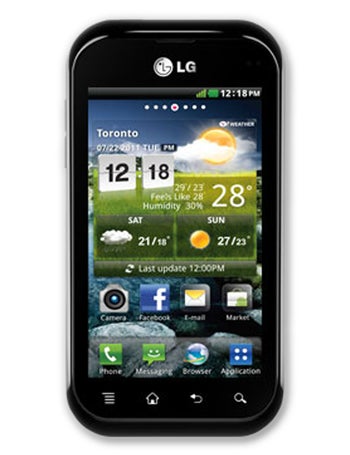

LG Eclypse

Posted
Nov 25, 2011
Market status
Released

Pros

  • Full hardware keyboard for text input

Cons

  • Low pixel density screen (165 ppi)
  • Single-core processor
  • Too little RAM memory (0.5 GB RAM)
  • Low-resolution camera (5 megapixels)
  • Lacks an ambient light sensor for automatic screen brightness adjustment
  • No front-facing camera

Share

embed

Description

LG Eclypse features a landscape style QWERTY keyboard, a 3.5” 320 x 480 display, 5-megapixel camera with flash, 720p HD video recording, 1GB of internal storage, preloaded 4GB microSD card, aGPS, Bluetooth, Wi-Fi, 14.4 Mbps HSDPA, and Android 2.3 Gingerbread.

Do you ...?




Compare

Design

  • Device type:
    • Smart phone
  • OS:
    • Android (2.3)
  • Dimensions:
    • 4.77 x 2.50 x 0.51 inches (121.2 x 63.4 x 12.95 mm)
  • Weight:
    • 5.92 oz (168 g)
      the average is 5.3 oz (150 g)
  • Features:
    • Full keyboard

Display

  • Physical size:
    • 3.5 inches
  • Resolution:
    • 320 x 480 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 165 ppi
  • Screen-to-body ratio:
    • 47.41 %
  • Features:
    • Proximity sensor

Camera

  • Camera:
      • 5 megapixels
    • Flash:
      • LED
    • Hardware Features:
      • Autofocus
    • Software Features:
  • Camcorder:
      • 1280x720 (720p HD)

Hardware

  • System chip:

    System chip - Most modern handsets use an advanced chip that includes many of the device’s hardware modules like the processor, Wi-Fi, Bluetooth and sometimes even the wireless radio. This field shows what particular system chip (or System-on-a-Chip) is used in the phone.

      • Qualcomm Snapdragon S2
    • Model:
      • MSM8255
  • Processor:

    Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.

    • Single core, 1000 MHz, Scorpion
  • Graphics processor:
      • Adreno 205
  • System memory:

    System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.

    • 0.5 GB RAM
  • Built-in storage:
    • 1 GB
  • Storage expansion:
    • microSD, microSDHC up to 32 GB

Battery

  • Capacity:
    • 1520 mAh
  • User replaceable:
    • Yes
  • Talk time:
    • 3.30 hours
      the average is 14 h (816 min)
  • Stand-by time:
    • 9.6 days (230 hours)
      the average is 16 days (391 h)

Multimedia

  • Music player:
    • Filter by:
      • Album, Artist, Playlists
    • Features:
      • Album art cover, Background playback
  • Speakers:
    • Earpiece, Loudspeaker

Cellular

  • GSM:
    • 850, 900, 1800, 1900 MHz
  • UMTS:
    • 850, 1900 MHz
  • Data:
    • HSDPA 14.4 Mbit/s, UMTS

Phone features

  • Sensors:
      • Accelerometer
  • Notifications:
    • Music ringtones (MP3), Vibration, Flight mode, Silent mode
  • Other features:
    • Voice dialing, Voice commands, Voice recording
specifications continue after the ad

Connectivity

  • Bluetooth:
      • 3.0
  • Wi-Fi:
      • 802.11 b, g, n
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • Mass storage device, USB charging
  • Positioning:

    Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.

    • GPS, A-GPS
  • Navigation:
    • Yes
  • Other:
    • Computer sync, OTA sync

Regulatory Approval

  • FCC approval:

    FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.

    • Date approved:

      Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission

      • 08 Nov 2011
      • FCC ID value:

        FCC ID value - Shows the FCC Identifying value of the particular phone

        ZNFC800G link
  • FCC measured SAR:

    FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).

    • Head:
      • 0.45 W/kg
    • Body:
      • 0.99 W/kg

To see the full specifications with in-depth details click here.

This device is also known as LG C800G


Despite our efforts to provide full and correct LG Eclypse specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.


If you are interested in using our specs commercially, check out our Phone specs database licensing page.
