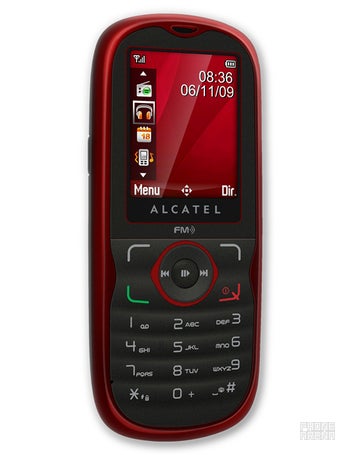

Alcatel OT-505

Mar 29, 2011
Market status


  • Small dimensions (4.21 x 1.81 x 0.56 inches)


  • Lacks an ambient light sensor for automatic screen brightness adjustment




Alcatel OT-505 is a basic candybar phone with VGA camera. It has 1.77" TFT display, FM radio with RDS, Bluetooth, music player, and supports up to 2GB microSD memory cards.

Do you ...?



  • Device type:
    • Basic phone
  • Dimensions:
    • 4.21 x 1.81 x 0.56 inches (107 x 46 x 14.3 mm)
  • Weight:
    • 2.46 oz (70 g)
      the average is 5.3 oz (150 g)


  • Physical size:
    • 1.8 inches
  • Resolution:
    • 128 x 160 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 116 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • TFT
  • Screen-to-body ratio:
    • 20.06 %
  • Colors:
    • 65 536


  • Camera:
      • 0.3 megapixels VGA


  • Built-in storage:
    • 0.002 GB
  • Storage expansion:
    • microSD up to 2 GB


  • Talk time:
    • 9.00 hours
      the average is 15 h (890 min)
  • Stand-by time:
    • 18.8 days (450 hours)
      the average is 18 days (434 h)
  • Music playback:
    • 9.00 hours
  • Capacity:
    • 650 mAh


  • Radio:
      • FM, RDS


  • GSM:
    • 900, 1800 MHz
  • Data:
    • GPRS


  • Bluetooth:
      • 2.0
  • USB:
      • Yes
    • Connector:
      • miniUSB
    • Features:
      • USB charging
specifications continue after the ad

Other features

  • Notifications:
    • Music ringtones (MP3, WAV, MIDI), Polyphonic ringtones, Vibration, Speakerphone
    • Voice recording

To see the full specifications with in-depth details click here.

Despite our efforts to provide full and correct Alcatel OT-505 specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.
