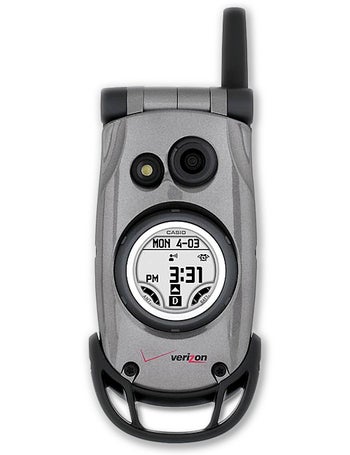

PCD G'zOne Type-V vs Samsung Galaxy S20 Ultra 5G Specs Comparison

Design

Dimensions
4.10 x 2.00 x 1.10 inches 104 x 51 x 28 mm	6.57 x 2.99 x 0.35 inches 166.9 x 76 x 8.8 mm
Weight
5.30 oz (150.0 g)	7.83 oz (222.0 g)
Materials
	Back: Glass (Corning Gorilla Glass 6) Frame: Aluminum
Resistance
Water, Dust, Shock	Water, Dust; IP68
Biometrics
	2D Face unlock, Ultrasonic in-screen fingerprint
Features
Numeric keypad, Soft keys
Keys
Right: Volume control, Camera shutter	Right: Volume control, Lock/Unlock key
Colors
	Cosmic black, Cosmic grey

Display

Size
2.2-inch	6.9-inch
Resolution
320x240px, 182 PPI	3200x1440px, 20:9 ratio, 509 PPI
Technology
TFT	Dynamic AMOLED
Refresh rate
	120Hz (@1080p)
Screen-to-body
28.33 %	90.70 %
Features
	HDR support, Scratch-resistant glass (Corning Gorilla Glass 6), Ambient light sensor, Proximity sensor
Additional display
1.3 inches, 100 x100 px, STN

Hardware

System chip
	Qualcomm Snapdragon 865 SM8250 (7 nm)
Processor
	Octa-core 2840 MHz Kryo 585
GPU
	Adreno 650
RAM
	12GB (LPDDR5)
Internal storage
0.128GB	128GB (UFS 3.0), available to use: 103.8 GB
Storage expansion
	microSDXC up to 1000 GB
OS
	Android (13, 12, 11, 10), Samsung One UI

Battery

Capacity
1050 mAh	5000 mAh
Type
Li - Ion	Li - Polymer
Charging
	Qualcomm Quick Charge 2.0, Samsung Adaptive Fast Charging, Qi and Powermat wireless charging, Reverse wireless charging
Charge speed
	Wired: 45.0W Wireless: 15.0W

PhoneArena Battery Tests

Battery Life Estimate

Untested

Browsing

Untested

Video

Untested

Gaming

Untested

Battery Life Estimate

5h 57min

Browsing

10h 2min

Video

10h 29min

Gaming

9h 12min

Learn more on our PhoneArena Battery Test Results page

Camera

Rear
Single camera	Quad camera
Main camera
2 MP	108 MP (OIS, PDAF) Aperture size: F1.8 Focal length: 26 mm
Second camera
	12 MP (Ultra-wide, Autofocus) Aperture size: F2.2 Focal Length: 13 mm Pixel size: 1.4 μm
Third camera
	48 MP (Telephoto, OIS, PDAF) Aperture size: F3.5 Focal Length: 102 mm Sensor size: 1/2" Pixel size: 0.8 μm
Fourth camera
	0.3 MP VGA (ToF 3D depth sensing)
Flash
Yes	LED
Video recording
Yes	7680x4320 (8K UHD) (24 fps), 3840x2160 (4K UHD) (60 fps), 1920x1080 (Full HD) (240 fps), 1280x720 (HD) (960 fps) OIS, HDR, Time-lapse video, EIS
Front
	40 MP (PDAF, HDR), Video capture: 3840x2160 (4K UHD) (60 fps)

Connectivity & Features

Bluetooth
	5.0
WLAN
	802.11 a,b,g,n,ac,ax(Wi-Fi 6),dual-band MIMO, Wi-Fi Direct, Hotspot
USB
	Type-C, USB 3.2
Hearing aid compatible
	M3/T4
Location
GPS	GPS, A-GPS, Glonass, Galileo, Cell ID, Wi-Fi positioning
Sensors
	Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer
Other
	NFC, ANT+

Multimedia

Headphones
	No 3.5mm jack
Speakers
	Earpiece, Multiple speakers
Features
	32-Bit DAC, Dolby Atmos, aptX, Dolby Digital, Dolby Digital Plus
Screen mirroring
	Wireless screen share
Radio
	FM
Additional microphone(s)
	Noise cancellation

Cellular

5G
	Bands n2, n5, n41, n66, n71, n260, n261, SA, NSA, Sub-6, mmWave
4G (FDD)
	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 14(700 PS), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS), 66(AWS-3), 71(600)
4G (TDD)
	Bands 38(2600), 39(1900+), 40(2300), 41(2600+), 46, 48(3600)
3G
	Bands 1(2100), 2(1900), 4(1700/2100), 5(850), 8(900)
Data Speed
	LTE-A Pro Cat 20 (2000/150 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
SIM type
	Nano SIM

Regulatory Approval

FCC approval
Date approved: Mar 08, 2006 FCC ID value: TYKNX9200	Date approved: Jan 28, 2020 FCC ID value: A3LSMG988B
Measured SAR
Head: 1.28 W/kg Measured in: 1900 MHz Body: 0.79 W/kg Measured in: 1900 MHz	Head: 0.26 W/kg Body: 0.41 W/kg Simultaneous Transmission: 1.57 W/kg Wireless Router: 1.04 W/kg Phablet: 2.12 W/kg

Buyers information

MSRP
	$ 1400

Availability

Officially announced
	Feb 11, 2020

Alternative variants

Global variant

System chip	Samsung Exynos 990 (7 nm)
Processor	Octa-core 2700 MHz Mongoose M5, Arm Cortex-A76 and Arm Cortex-A55
GPU	Mali G77 MP11
5G	Bands n1, n3, n5, n7, n8, n28, n40, n77, n78, Sub-6
4G (FDD)	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 17(700 b), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 32(1500 L-band), 66(AWS-3)
4G (TDD)	Bands 38(2600), 39(1900+), 40(2300), 41(2600+)
Dual SIM	Yes
SIM type	Nano SIM, eSIM

with 256GB storage

Internal storage	256GB

with 512GB storage

RAM	16GB
Internal storage	512GB
MSRP	$ 1600

for Sprint

4G (FDD)	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 66(AWS-3), 71(600)

for Verizon

4G (FDD)	Bands 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 18(800 Lower), 19(800 Upper), 20(800 DD), 26(850+), 28(700 APT), 66(AWS-3)
3G	Bands 5(850), 8(900), 2(1900), 1(2100)

for T-Mobile

4G (FDD)	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 66(AWS-3), 71(600)
3G	Bands 5(850), 4(1700/2100), 2(1900), 1(2100)
