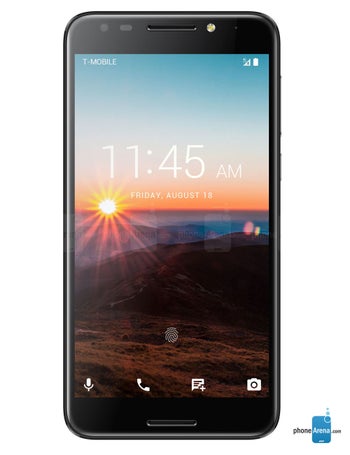

T-Mobile REVVL vs T-Mobile Revvl 4+

Compare phone and tablet specifications of up to three devices at once.

Display

Size:

5.5 inches
6.5 inches

Resolution:

1280 x 720 pixels, 267 PPI
1600 x 720 pixels, 20:9 ratio, 269 PPI

Technology:

IPS LCD
LCD

Screen-to-body:

71.34 %
82.56 %

Colors:

16 777 216

Touchscreen:

Capacitive, Multi-touch

Features:

Ambient light sensor, Proximity sensor
Ambient light sensor, Proximity sensor

Hardware

System chip:

MediaTek MT6738
Qualcomm Snapdragon 665 SM6125

Processor:

Quad-core, 1500 MHz, ARM Cortex-A53, 64-bit, 28 nm
Octa-core, 1800 MHz, Kryo 260, 64-bit, 11 nm

GPU:

Mali-T860 MP2
Adreno 610

RAM:

2GB LPDDR3
4GB

Internal storage:

32GB, available to use: 24 GB
64GB

Storage expansion:

microSDXC up to 128 GB
microSDXC up to 256 GB

Device type:

Smartphone
Smartphone

OS:

Android (7.0 Nougat)
Android (10)

Battery

Capacity:

3000 mAh
4000 mAh

Type:

Li - Ion, Not user replaceable
Not user replaceable

Charging:

Qualcomm Quick Charge 3.0

Camera

Rear:

Single camera
Dual camera

Main camera:

13 MP (Autofocus)
16 MP (Autofocus)

Specifications:

Aperture size: F1.8

Second camera:

5 MP (Depth information)

Video recording:

1920x1080 (Full HD)
3840x2160 (4K UHD)

Features:

Time-lapse video, Video calling, Video sharing

Front:

5 MP (Wide Angle, Flash)
16 MP

Video capture:

1920x1080 (Full HD)

Design

Dimensions:

5.98 x 3.03 x 0.33 inches (151.9 x 77 x 8.4 mm)
6.51 x 2.96 x 0.32 inches (165.4 x 75.2 x 8.1 mm)

Weight:

5.57 oz (158.0 g)
6.35 oz (180.0 g)

Materials:

Back: Plastic
Back: Plastic

Biometrics:

Fingerprint (touch)
2D Face unlock, Fingerprint (touch)

Keys:

Right: Volume control, Lock/Unlock key
Right: Volume control, Lock/Unlock key

Colors:

Steel gray

Cellular

Carrier locked:

Yes

LTE (FDD):

Bands 2(1900), 4(AWS-1), 5(850), 12(700 a), 66(AWS-3)
Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 66(AWS-3), 71(600)

LTE (TDD):

Bands 38(2600), 39(1900+), 40(2300), 41(2600+)

UMTS:

850, 900, 1700/2100, 1900 MHz
850, 1700/2100, 1900 MHz

Data Speed:

LTE Cat 4 (150/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s
LTE-A Cat 12 (600/100 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s

SIM type:

Nano SIM
Nano SIM

HD Voice:

Yes

VoLTE:

Yes
Yes

Multimedia

Headphones:

3.5mm jack
3.5mm jack

Speakers:

Earpiece, Loudspeaker
Earpiece, Loudspeaker

Features:

Album art cover, Background playback

Screen mirroring:

Wireless screen share
Wireless screen share

Radio:

FM
FM

Additional microphone(s):

for Noise cancellation

Connectivity & Features

Bluetooth:

4.2
5.0

Wi-Fi:

802.11 b, g, n; Wi-Fi Direct
802.11 a, b, g, n, ac, dual-band; Wi-Fi Direct, Hotspot

USB:

microUSB, USB 2.0
Type-C (reversible)

Features:

Mass storage device, Charging
Charging

Location:

GPS, A-GPS
GPS, A-GPS, Cell ID, Wi-Fi positioning

Sensors:

Accelerometer, Gesture
Accelerometer

Other:

UMA (Wi-Fi Calling), VoIP, Tethering, Computer sync, OTA sync
NFC

Hearing aid compatible:

M4, T4
M3, T3

Phone features

Notifications:

Haptic feedback

Other features:

Voice dialing, Voice commands, Voice recording, TTY/TDD

Regulatory Approval

FCC approval:

Date approved:

Jun 28, 2017
Jun 18, 2020

FCC ID value:

2ACCJB089 link
2ACCJH122 link

Measured SAR:

Head:

0.20 W/kg
1.02 W/kg

Body:

1.28 W/kg
0.47 W/kg

Simultaneous Transmission:

1.38 W/kg
1.47 W/kg

Wireless Router:

1.28 W/kg
1.34 W/kg

Phablet:

3.86 W/kg

Buyers information

Price:

$ 192

In The Box:

Charger, USB Cable, Start Guide and Terms & Conditions
Quick Start Guide, Charger Head, Data cable, Product Safety Information, SIM Tool

Availability

Officially announced:

Aug 09, 2017
Aug 27, 2020
