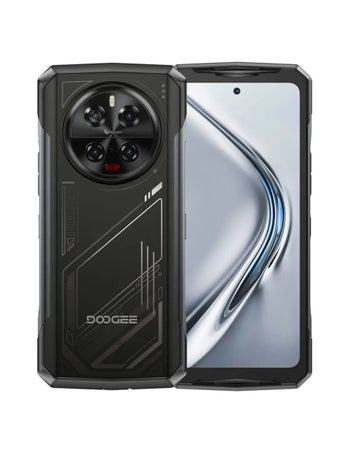

DOOGEE V40 vs OSCAL PILOT 3 Specs Comparison

Design

Dimensions
7.22 x 3.30 x 0.61 inches 183.4 x 83.7 x 15.5 mm	7.17 x 3.39 x 0.57 inches 182.2 x 86 x 14.5 mm
Weight
	12.59 oz (357.0 g)
Resistance
Water, Dust; IP68; MIL-STD-810	Water, Dust; IP69K; MIL-STD-810 certified
Biometrics
Fingerprint (touch)	Fingerprint (touch)
Keys
	Right: Volume control, Lock/Unlock key
Colors
Silver, Red	Black, Orange

Display

Size
6.8-inch	6.8-inch
Resolution
2460x1080px, 20.5:9 ratio, 396 PPI	2460x1080px, 20:9 ratio, 396 PPI
Technology
IPS LCD	IPS LCD
Refresh rate
120Hz	120Hz
Screen-to-body
77.19 %	69.61 %
Peak brightness
	750 cd/m2 (nit)
Features
Ambient light sensor, Proximity sensor	Scratch-resistant glass, Ambient light sensor, Proximity sensor

Hardware

System chip
MediaTek 7300 (12 nm)	MediaTek Dimensity 6300 MT6835 (6 nm)
Processor
Octa-core	Octa-core 2x2.4GHz Cortex-A76 6x2.0GHz Cortex-A55
GPU
Mali G615	Mali-G57 MC2
RAM
16GB	12GB (LPDDR4X)
Internal storage
512GB	256GB (UFS 2.2)
Storage expansion
microSDXC up to 2048 GB	microSDXC up to 1024 GB
OS
Android (14)	Android (15)

Battery

Capacity
8680 mAh	7500 mAh
Type
Li - Ion
Charge speed
Wired: 33.0W	Wired: 33.0W

Camera

Rear
Triple camera	Triple camera
Main camera
108 MP	50 MP Aperture size: F1.8 Sensor size: 1/2.76"
Second camera
8 MP (Ultra-wide)	20 MP (Night vision sensor) Sensor size: 1/2.8"
Third camera
20 MP (Night vision sensor)	2 MP (Depth information)
Flash
LED	LED
Video recording
Yes	Yes
Front
16 MP	32 MP

Connectivity & Features

Bluetooth
5.4	5.2
WLAN
802.11 a,b,g,n,ac,ax(Wi-Fi 6) Wi-Fi Direct, Hotspot	802.11 a,b,g,n,ac Wi-Fi Direct, Hotspot
USB
Type-C	Type-C
Location
GPS, A-GPS, Glonass, Galileo, BeiDou, Cell ID, Wi-Fi positioning	GPS, A-GPS, Glonass, Galileo, BeiDou, QZSS, Cell ID, Wi-Fi positioning
Sensors
Accelerometer, Gyroscope, Compass	Accelerometer, Gyroscope, Compass
Other
NFC	NFC

Multimedia

Headphones
No 3.5mm jack	3.5mm jack
Speakers
Earpiece, Loudspeaker	Earpiece, Multiple speakers
Screen mirroring
Wireless screen share	Wireless screen share
Radio
FM, Stereo, RDS	FM, Stereo, RDS
Additional microphone(s)
Noise cancellation	Noise cancellation

Cellular

5G
Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n77, n78, n79	Bands n1, n3, n5, n7, n8, n20, n28, n30, n38, n40, n41, n77, n78, n79
4G (FDD)
Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 18(800 Lower), 19(800 Upper), 25(1900+), 26(850+), 28(700 APT), 66(AWS-3), 71(600)	Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 17(700 b), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 30(2300 WCS), 66(AWS-3)
4G (TDD)
Bands 38(2600), 40(2300), 41(2600+)	Bands 34(2000), 38(2600), 39(1900+), 40(2300), 41(2600+)
3G
Bands 1(2100), 2(1900), 4(1700/2100), 5(850), 8(900)	Bands 1(2100), 2(1900), 4(1700/2100), 5(850), 8(900)
Data Speed
	LTE-A, HSDPA+ (4G) 42.2 Mbit/s
Dual SIM
	Yes
SIM type
	Nano SIM

Links

Full specifications
DOOGEE V40 Specs	OSCAL PILOT 3 Specs
