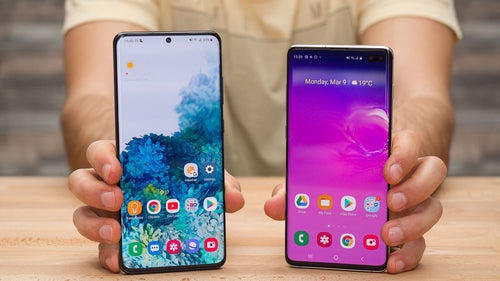

Samsung Galaxy S10+ vs Samsung Galaxy S20 Ultra 5G

Compare phone and tablet specifications of up to three devices at once.

Display

Size:

6.4 inches
6.9 inches

Resolution:

3040 x 1440 pixels, 19:9 ratio, 522 PPI
3200 x 1440 pixels, 20:9 ratio, 509 PPI

Technology:

Dynamic AMOLED
Dynamic AMOLED

Screen-to-body:

88.63 %
90.70 %

Features:

HDR video support, Scratch-resistant glass (Corning Gorilla Glass 6), Ambient light sensor, Proximity sensor
120Hz refresh rate (@1080p), HDR video support, Scratch-resistant glass (Corning Gorilla Glass 6), Ambient light sensor, Proximity sensor

Hardware

System chip:

Qualcomm Snapdragon 855
Qualcomm Snapdragon 865 SM8250

Processor:

Octa-core, 2800 MHz, Kryo 485, 64-bit, 7 nm
Octa-core, 2840 MHz, Kryo 585, 64-bit, 7 nm

GPU:

Adreno 640
Adreno 650

RAM:

8GB LPDDR4
12GB LPDDR5

Internal storage:

128GB, available to use: 109 GB
128GB (UFS 3.0), available to use: 103.8 GB

Storage expansion:

microSDXC up to 512 GB
microSDXC up to 1000 GB

Device type:

Smartphone
Smartphone

OS:

Android (10, 9.0 Pie), Samsung One UI
Android (10), Samsung One UI

Battery

Capacity:

4100 mAh
5000 mAh

Type:

Li - Ion, Not user replaceable
Li - Polymer, Not user replaceable

Battery life test results:

Charging:

Qualcomm Quick Charge 2.0, USB Power Delivery, Samsung Adaptive Fast Charging, Qi and Powermat wireless charging, Reverse wireless charging
Qualcomm Quick Charge 2.0, Samsung Adaptive Fast Charging, Qi and Powermat wireless charging, Reverse wireless charging

Max charge speed:

Wired: 45.0W; Wireless: 15.0W

Camera

Rear:

Triple camera
Quad camera

Main camera:

12 MP (OIS, PDAF)
108 MP (OIS, PDAF)

Specifications:

Aperture size: F1.5/F2.4; Focal length: 26 mm; Sensor size: 1/2.55"; Pixel size: 1.4 μm
Aperture size: F1.8; Focal length: 26 mm

Second camera:

12 MP (Telephoto, OIS, PDAF)
48 MP (Telephoto, OIS, PDAF)

Specifications:

Optical zoom: 2x; Aperture size: F2.4; Focal Length: 52 mm; Sensor size: 1/3.6"; Pixel size: 1 μm
Aperture size: F3.5; Focal Length: 102 mm; Sensor size: 1/2"; Pixel size: 0.8 μm

Third camera:

16 MP (Ultra-wide)
12 MP (Ultra-wide, Autofocus)

Specifications:

Aperture size: F2.2; Focal Length: 12 mm; Sensor size: 1/3.1"; Pixel size: 1 μm
Aperture size: F2.2; Focal Length: 13 mm; Pixel size: 1.4 μm

Fourth camera:

0.3 MP VGA (ToF 3D depth sensing)

Video recording:

3840x2160 (4K UHD) (60 fps), 1920x1080 (Full HD) (240 fps), 1280x720 (HD) (960 fps)
7680x4320 (8K UHD) (24 fps), 3840x2160 (4K UHD) (60 fps), 1920x1080 (Full HD) (240 fps), 1280x720 (HD) (960 fps)

Features:

HDR, Time-lapse video, Hyperlapse, EIS, Video calling, Video sharing
OIS, HDR, Time-lapse video, EIS

Front:

10 MP (Dual-Camera, Autofocus, HDR)
40 MP (PDAF, HDR)

Video capture:

3840x2160 (4K UHD)
3840x2160 (4K UHD) (60 fps)

Design

Dimensions:

6.20 x 2.92 x 0.31 inches (157.6 x 74.1 x 7.8 mm)
6.57 x 2.99 x 0.35 inches (166.9 x 76 x 8.8 mm)

Weight:

6.17 oz (175.0 g)
7.83 oz (222.0 g)

Materials:

Back: Glass (Corning Gorilla Glass 5); Frame: Aluminum
Back: Glass (Corning Gorilla Glass 6); Frame: Aluminum

Resistance:

Water, Dust; IP68
Water, Dust; IP68

Biometrics:

2D Face unlock, Ultrasonic in-screen fingerprint
2D Face unlock, Ultrasonic in-screen fingerprint

Keys:

Left: Volume control, Other; Right: Lock/Unlock key
Right: Volume control, Lock/Unlock key

Colors:

Prism blue, Prism black, Prism white, Prism green, Flamingo pink
Cosmic black, Cosmic grey

Cellular

5G:

n2, n5, n41, n66, n71, n260, n261, SA, NSA, Sub-6, mmWave

LTE (FDD):

Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 14(700 PS), 17(700 b), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS), 66(AWS-3), 71(600)
Bands 1(2100), 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 8(900), 12(700 a), 13(700 c), 14(700 PS), 18(800 Lower), 19(800 Upper), 20(800 DD), 25(1900+), 26(850+), 28(700 APT), 29(700 d), 30(2300 WCS), 66(AWS-3), 71(600)

LTE (TDD):

Bands 38(2600), 39(1900+), 40(2300), 41(2600+), 46
Bands 38(2600), 39(1900+), 40(2300), 41(2600+), 46, 48(3600)

UMTS:

850, 900, 1700/2100, 1900, 2100 MHz
850, 900, 1700/2100, 1900, 2100 MHz

Data Speed:

LTE-A Pro Cat 20 (2000/150 Mbit/s), LTE-A, HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
LTE-A Pro Cat 20 (2000/150 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s

SIM type:

Nano SIM
Nano SIM

HD Voice:

Yes

Multimedia

Headphones:

3.5mm jack
No 3.5mm jack

Speakers:

Earpiece, Multiple speakers
Earpiece, Multiple speakers

Features:

32-Bit DAC, Dolby Atmos, aptX-HD
32-Bit DAC, Dolby Atmos, aptX, Dolby Digital, Dolby Digital Plus

Screen mirroring:

Wireless screen share
Wireless screen share

Radio:

FM
FM

Additional microphone(s):

for Noise cancellation
for Noise cancellation

Connectivity & Features

Bluetooth:

5.0
5.0

Wi-Fi:

802.11 a, b, g, n, ac, ax, dual-band; MIMO, Wi-Fi Direct, Hotspot
802.11 a, b, g, n, ac, ax (Wi-Fi 6), dual-band; MIMO, Wi-Fi Direct, Hotspot

USB:

Type-C (reversible), USB 3.1
Type-C (reversible), USB 3.2

Features:

Charging, OTG, Video out
Charging, Headphones port, OTG

Location:

GPS, A-GPS, Glonass, Galileo, Cell ID, Wi-Fi positioning
GPS, A-GPS, Glonass, Galileo, Cell ID, Wi-Fi positioning

Sensors:

Accelerometer, Gyroscope, Compass, Hall (for flip covers), Heart rate, Barometer
Accelerometer, Gyroscope, Compass, Hall (for flip covers), Barometer

Other:

NFC, ANT+
NFC, ANT+

Hearing aid compatible:

M4, T3
M3, T4

Regulatory Approval

FCC approval:

Date approved:

Feb 01, 2019
Jan 28, 2020

FCC ID value:

A3LSMG975U link
A3LSMG988B link

Measured SAR:

Head:

0.41 W/kg
0.26 W/kg

Body:

1.04 W/kg
0.41 W/kg

Simultaneous Transmission:

1.59 W/kg
1.57 W/kg

Wireless Router:

1.29 W/kg
1.04 W/kg

Phablet:

3.99 W/kg
2.12 W/kg

Buyers information

Price:

$ 1000
$ 1400

User Manual:

This is the official Samsu​ng Galaxy S20 Ultra 5G User Guide in English provided from the manufacturer.

In The Box:

Data cable, Travel adapter, Ejection pin, USB Connector (OTG), Earphones sound by AKG, Quick start guide, Protective film

Availability

Officially announced:

Feb 20, 2019
Feb 11, 2020
