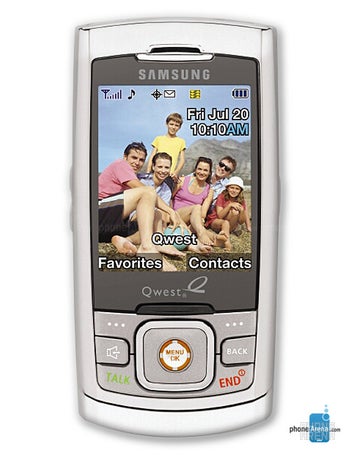

Samsung SPH-M520
- Bookmark
- Posted: 24 Jul 2007
- Market Status: Released
-
Do you ...?
- US carrier availability: Qwest - Discontinued Sprint - Discontinued
- Links: Samsung SPH-M520 manual Samsung SPH-M520 Review Samsung SPH-M520 Official Page Qwest phones
Samsung SPH-M520 is a dual-band CDMA slider with EVDO support. It features 262k color TFT display, 1.3 megapixel camera, Bluetooth, Music player, microSD slot for memory and organizer
Rating
Samsung SPH-M520 specifications
Pros
- Small dimensions (4.01 x 2.04 x 0.50 inches)
Cons
- Low resolution display (176 x 220 pixels)
- Lacks global positioning system (GPS)
- Low-resolution camera (1.3 megapixels)
- The camera lacks autofocus
- Lacks a standard (3.5mm) headphones jack
- Lacks an ambient light sensor for automatic screen brightness adjustment
Design
- Form factor:
Form factor - Refers to the form factor of a phone. The main handset designs are bar, clamshell, slide, swivel
- Slider
- Dimensions:
Dimensions - Phone's dimensions
- 4.01 x 2.04 x 0.50 (102 x 52 x 13 mm)
- Weight:
Weight - Phone's weight
- 2.75 oz (78 g)
the average is 4.4 oz (126 g)
- 2.75 oz (78 g)
Display
- Resolution:
Resolution - Refers to the width and the height of the display
- 176 x 220 pixels
- Technology:
Technology - Refers to the type of the color displays. There are five major types: LCD, TFT, TFD, STN and OLED
- TFT
- Colors:
Colors - Shows the number of colors that the display supports
- 262 144
Battery
- Talk time:
Talk time - Maximum talk time in hours
- 3.30 hours
the average is 7 h (448 min)
- 3.30 hours
- Stand-by time:
- 6.5 days (157 hours)
the average is 16 days (390 h)
- 6.5 days (157 hours)
- Capacity:
Capacity - Shows the battery capacity in mAh
- 800 mAh
Hardware
- Built-in storage:
- 16 MB
- Storage expansion:
Storage expansion - Capability to add additional memory to your phone.
- Slot Type:
Slot Type - Shows what type of additional memory can be added to the particular phone. Eight major memory slot types are available: MMC, SD, CF, Memory Stick Duo, miniSD, RS MMC, TransFlash (microSD), Memory Stick Pro Duo
- microSD
- Slot Type:
Camera
- Camera:
Camera - Camera specs
- 1.3 megapixels
- Features:
- Digital zoom
- Camcorder:
- Yes
Internet browsing
- Browser:
Browser - Capability to access special Internet sites using the mobile phone
- Yes
- Supports:
- WAP 2.0
Technology
- CDMA:
CDMA - Code Division Multiple Access. A technique of multiplexing, also called spread spectrum, in which analog signals are converted into digital form for transmission. For each communication channel, the signals are encoded in a sequence known to the transmitter and the receiver for that channel. The foremost application is digital cellular phone technology from QUALCOMM that operates in the 800MHz band and 1.9GHz PCS band. CDMA phones are noted for their excellent call quality and long battery life.
- 800, 1900 MHz
- Data:
Data - Shows the particular phone's type of data. the major mobile phone data types are GPRS, CDMA2000 1xRTT, EDGE, CDMA2000 1xEV-DO, UMTS, etc.
- EV-DO
- Satellite system:
- E911
Phone features
- Phonebook:
- 500 entries, Caller groups, Multiple numbers per contact, Picture ID, Ring ID
- Organizer:
- Calendar, Alarm, To-Do, Calculator, World clock, Countdown timer, Memo
- Messaging:
- SMS, MMS (T9), Predictive text input
- E-mail:
E-mail - Shows if the phone supports email features
- Yes
Connectivity
- Bluetooth:
Bluetooth - Low power radio technology replacing the need for wires connecting electronic devices such as personal computers, printers, palm top computers and mobile phones.
- 1.2
- USB:
- Yes
Other features
- Notifications:
- Polyphonic ringtones (72 voices), Vibration, Phone profiles, Speakerphone
- Voice dialing, Voice recording, TTY/TDD
