PCD CDM-7126
- Bookmark
- Posted: 18 Mar 2008
- Market Status: Released
-
Do you ...?
- US carrier availability: MetroPCS - Discontinued Cricket - Discontinued
- Links: UTStarcom CDM-7126 Official Page

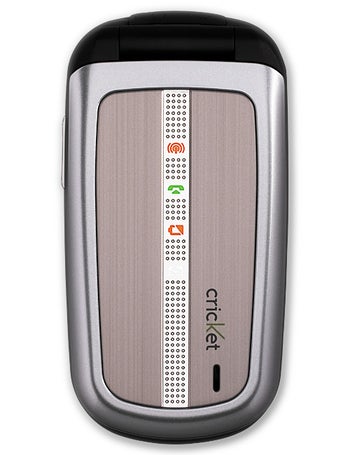

UTStarcom CDM-7126, which is a low-end clamshell, is the first CDMA device to also support the 1700 MHz AWS frequency in addition to the 800/1900 MHz. The phone features 65k color STN display, Bluetooth and Speakerphone.
Rating
PCD CDM-7126 specifications
Pros
No prosCons
- Low pixel densitiy screen, below 180ppi (114 ppi)
- It is so thick it needs a personal fitness trainer (0.70 inches)
- Low resolution display (128 x 160 pixels)
- Lacks global positioning system (GPS)
- Lacks microSD slot for storage expansion
- Lacks a standard (3.5mm) headphones jack
- Lacks an ambient light sensor for automatic screen brightness adjustment
Design
- Form factor:
Form factor - Refers to the form factor of a phone. The main handset designs are bar, clamshell, slide, swivel
- Clamshell
- Dimensions:
- 3.60 x 1.90 x 0.70 (91.5 x 48 x 18 mm)
- Weight:
- 3.00 oz (85 g)
the average is 4.2 oz (120 g)
- 3.00 oz (85 g)
Display
- Physical size:
- 1.80 inches
- Resolution:
- 128 x 160 pixels
- Pixel density:
Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.
- 114 ppi
- Technology:
Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.
- STN
- Colors:
Colors - Shows the number of colors that the display supports
- 65 536
Battery
- Talk time:
Talk time - Maximum talk time in hours
- 5.18 hours
the average is 8 h (497 min)
- 5.18 hours
- Stand-by time:
- 10.3 days (248 hours)
the average is 21 days (496 h)
- 10.3 days (248 hours)
- Capacity:
- 900 mAh
Internet browsing
- Browser:
- Yes
- Supports:
- WAP 2.0
Technology
- CDMA:
CDMA - Code Division Multiple Access. A technique of multiplexing, also called spread spectrum, in which analog signals are converted into digital form for transmission. For each communication channel, the signals are encoded in a sequence known to the transmitter and the receiver for that channel. The foremost application is digital cellular phone technology from QUALCOMM that operates in the 800MHz band and 1.9GHz PCS band. CDMA phones are noted for their excellent call quality and long battery life.
- 800, 1700/2100, 1900 MHz
- Positioning:
Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.
- E911
Phone features
- Phonebook:
- 500 entries, Caller groups, Multiple numbers per contact, Ring ID
- Organizer:
- Calendar, Alarm, Calculator, Tip calculator, Converter, World clock, Stopwatch, Notepad
- Messaging:
- SMS, Predictive text input (T9)
- E-mail:
- Yes
Connectivity
- Bluetooth:
- 2.0
Other features
- Notifications:
- Vibration, Speakerphone
- Voice dialing, Voice recording, TTY/TDD
To see the full specifications with in-depth details click here.
Despite our efforts to provide full and correct PCD CDM-7126 specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please LET US KNOW.
If you are interested in using our specs commercially, check out our Phone specs database licensing page.
