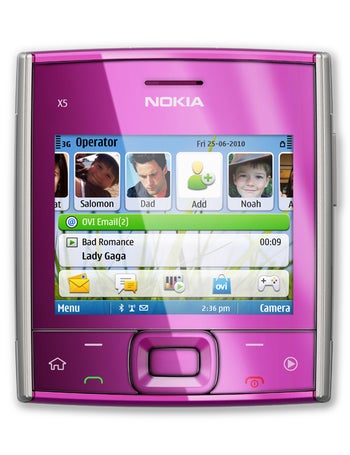

Nokia X5-01 American version

Jun 14, 2010
Market status


No pros


  • Low pixel density screen (169 ppi)
  • Single-core processor
  • Too little RAM memory (256 MB RAM)
  • It is so thick it needs a personal fitness trainer (0.66 inches inches)
  • Low resolution display (320 x 240 pixels)
  • Low-resolution camera (5 megapixels)
  • The camera lacks autofocus
  • Low-resolution video capture
  • Lacks an ambient light sensor for automatic screen brightness adjustment
  • No front-facing camera
  • Lacks global positioning system (GPS)




This version of Nokia X5-01 supports 3G bands suitable for use in South and North America. It is a Symbian smartphone with square-like design comming to fill the gap between the Nokia X3 and Nokia X6. The device has a QWERTY keyboard and supports the major IM and webmail services. It also offers access to major social networking sites (Facebook, Twitter, MySpace and Hi5). The camera is 5MP with LED flash. It has a 200MB of internal memory and a microSDHC card slot.

Do you ...?



  • Device type:
    • Smart phone
  • OS:
    • Symbian (9.3) S60 3rd Edition, Feature Pack 2
  • Dimensions:
    • 2.93 x 2.61 x 0.66 inches (74.3 x 66.4 x 16.8 mm)
  • Weight:
    • 4.55 oz (129 g)
      the average is 5.3 oz (150 g)


  • Physical size:
    • 2.4 inches
  • Resolution:
    • 320 x 240 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 169 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • TFT
  • Screen-to-body ratio:
    • 34.96 %
  • Colors:
    • 262 144


  • Camera:
      • 5 megapixels
    • Flash:
      • LED
    • Aperture size:

      Aperture size - The aperture of a camera is the opening through which light travels before it reaches the camera sensor. The smaller the number is, the bigger this opening is, allowing for more light to pass.

      • F2.4
    • Features:
      • Digital zoom, Self-timer
  • Camcorder:
      • 640x480 (VGA) (15 fps)


  • Processor:

    Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.

    • Single core, 600 MHz, ARM11
  • System memory:

    System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.

    • 256 MB RAM / 512 MB ROM
  • Built-in storage:
    • 0.2 GB
  • Storage expansion:
    • microSD, microSDHC up to 32 GB


  • Talk time:
    • 5.00 hours
      the average is 15 h (887 min)
  • Stand-by time:
    • 17.0 days (408 hours)
      the average is 18 days (424 h)
  • Talk time (3G):
    • 3.50 hours
      the average is 15 h (923 min)
  • Stand-by time (3G):
    • 17.0 days (408 hours)
      the average is 24 days (580 h)
  • Music playback:
    • 24.00 hours
  • Capacity:
    • 950 mAh


  • Radio:
      • FM, Stereo, RDS

Internet browsing

  • Built-in online services support:
    • Facebook, MySpace, Twitter


  • GSM:
    • 850, 900, 1800, 1900 MHz
  • UMTS:
    • 850, 1900, 2100 MHz
  • Data:
    • HSDPA 10.2 Mbit/s, HSUPA 2 Mbit/s, UMTS, GPRS
specifications continue after the ad


  • Bluetooth:
      • 2.1, EDR
  • Wi-Fi:
      • 802.11 b, g
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • Mass storage device, USB charging
  • Other:
    • DLNA, Computer sync, OTA sync

Other features

  • Notifications:
    • Music ringtones (MP3), Polyphonic ringtones (64 voices), Vibration, Phone profiles, Flight mode, Silent mode
  • Sensors:
      • Accelerometer
    • Voice recording


  • Officially announced:
    • 14 Jun 2010

To see the full specifications with in-depth details click here.

Despite our efforts to provide full and correct Nokia X5-01 American version specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.
