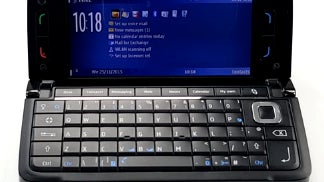

Nokia E90 Communicator is the 9500 successor with greatly improved features, including large QVGA outer and 800x352 internal display, 3.2 megapixel camera, WiFi, VoIP, GPS, Bluetooth 2.0, FM radio and microSD slot for memory. It is Quad-band GSM with EDGE and UMTS/HSDPA support.

Rating

Excellent 9.1 out of 10

Excellent

8.6 out of 10

Show Full Specs Compare

Nokia E90 Communicator specifications

Pros

No pros

Cons

Slow processor (332 MHz)
Bulky
It is so thick it needs a personal fitness trainer (0.78 inches)
Too little RAM memory (128 MB RAM)
Low-resolution camera (3.2 megapixels)
Low-resolution video capture
Lacks a standard (3.5mm) headphones jack
Lacks an ambient light sensor for automatic screen brightness adjustment

Design

Device type:
- Smart phone
OS:
- Symbian (9.2) S60 3rd Edition, Feature Pack 1
Form factor:
Form factor - Refers to the form factor of a phone. The main handset designs are bar, clamshell, slide, swivel
- Clamshell
Dimensions:
- 5.19 x 2.24 x 0.78 (132 x 57 x 20 mm)
Weight:
- 7.40 oz (210 g)
  the average is 4.2 oz (120 g)

Display

Resolution:
- 800 x 352 pixels
Technology:
Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.
- TFT
Colors:
Colors - Shows the number of colors that the display supports
- 16 777 216
Additional display:
Additional display - Shows specs of the phone's additional display
- - TFT
- Resolution:
  Resolution - Refers to the width and the length od the additional display
  - 240 x 320 pixels
- Colors:
  Colors - Shows the number of colors that the additional display supports
  - 16 777 216

Battery

Talk time:
Talk time - Maximum talk time in hours
- 5.80 hours
  the average is 8 h (497 min)
Stand-by time:
- 14.0 days (336 hours)
  the average is 21 days (496 h)
Capacity:
- 1500 mAh

Hardware

Processor:
Processor - The processor is the main computing component of a phone and is a major factor when it comes to the overall speed of the device. Some more powerful smartphones use dual-core and quad-core processors designed to deliver greater performance.
- Single core, 332 MHz, ARM11
Graphics processor:
- - 3D Graphics HW accelerator
System memory:
System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.
- 128 MB RAM / 256 MB ROM
Built-in storage:
- 128 MB
Storage expansion:
- Slot Type:
  - microSD

Camera

Camera:
- - 3.2 megapixels
- Flash:
  - Yes
- Aperture size:
  Aperture size - The aperture of a camera is the opening through which light travels before it reaches the camera sensor. The smaller the number is, the bigger this opening can get.
  - F2.8
- Features:
  - Auto focus, Digital zoom
Camcorder:
- - 640x480 (VGA) (30 fps)
- Features:
  - Video calling
Front-facing camera:
- Yes

Multimedia

Radio:
- - FM, Visual Radio

Internet browsing

Browser:
- - S60 OSS Browser
- Supports:
  - HTML, XHTML, WAP 2.0, Flash Lite

Technology

GSM:
GSM - Global System for Mobile communications. A world standard for digital cellular communications using narrowband TDMA (Time Division Multiple Access), which allows up to eight calls at a time on 800 MHz and 1800 MHz frequencies. Introduced in 1991. Is the standard most commonly used in Europe and Asia, but not in the United States. GSM phones use a Subscriber Identity Module (SIM) smart card that contains user account information. Any GSM phone becomes immediately programmed after plugging in the SIM card, thus allowing GSM phones to be easily rented or borrowed.
- 850, 900, 1800, 1900 MHz
UMTS:
UMTS - Universal Mobile Telecommunications Service, also called WCDMA, is a 3G (Third Generation) packet-based transmission of text, digitized voice, video, and multimedia at data rates up to 2 Mbps. It is based on GSM standard and is supported by major standards bodies and manufacturers
- 2100 MHz
Data:
Data - Shows the particular phone's type of data. the major mobile phone data types are GPRS, CDMA2000 1xRTT, EDGE, CDMA2000 1xEV-DO, UMTS, etc.
- HSDPA 3.6 Mbit/s, UMTS, EDGE
Positioning:
Positioning - This field shows the positioning systems supported by the device. There are three main types: GPS, A-GPS and GLONASS. GPS - This is one of the most widespread global positioning technologies, developed and maintained by the U.S. government. It uses satellites in order to detect your location. Works best in clear weather. A-GPS - A-GPS stands for Assisted GPS and is the industry standard for positioning and navigation. “Assisted” means that it can use local wireless networks, in addition to satellites, for quicker and more precise localization. GLONASS - GLONASS is a global positioning system, developed by the Russian Federation. It’s very similar to GPS, but isn’t so popular in cell phones.
- GPS

Phone features

Phonebook:
- Unlimited entries, Multiple numbers per contact, Picture ID, Ring ID
Organizer:
- Calendar, Alarm, To-Do, Calculator, Notes
Messaging:
- SMS, MMS, Predictive text input
E-mail:
- - IMAP, POP3, SMTP, Push e-mail

Connectivity

Bluetooth:
- - 2.0, EDR
Wi-Fi:
Wi-Fi - Wireless Local Area Network (WLAN) - used radio waves (RF) or infrared signals to send and receive data over the air. Most popular WLAN solutions today is Wi-Fi (802.11b and 802.11g) standards. 801.11b provides data speeds of around 11mbps while 802.11g can go up to 54 mbps.
- - 802.11 b, g
USB:
- - USB 2.0
- Connector:
  - miniUSB
- Computer sync, Infrared, SyncML, VoIP

Other features

Notifications:
- Music ringtones (MP3), Vibration, Phone profiles, Speakerphone
- Voice dialing, Voice commands, Voice recording, Push-to-Talk

Availability

Officially announced:
- 12 Feb 2007

To see the full specifications with in-depth details click here.

Despite our efforts to provide full and correct Nokia E90 Communicator specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please LET US KNOW.
