Motorola MOTO U9

Announced
Oct 11, 2007
Market status
Released

Pros

  • Small dimensions (3.54 x 1.91 x 0.64 inches)

Cons

  • It is so thick it needs a personal fitness trainer (0.64 inches inches)
  • Lacks an ambient light sensor for automatic screen brightness adjustment

Share

embed

Description

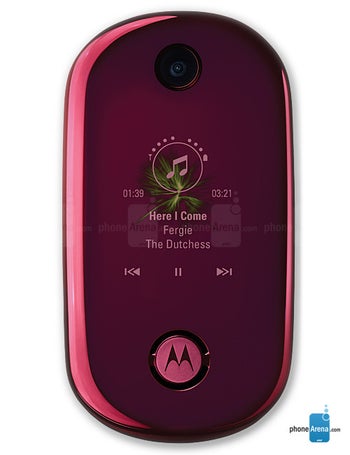

Motorola MOTO U9 is targeted as well-looking clamshell with extended music functionality, as it has player-dedicated keys on teh front side. In the PEBL-like rounded design hides 128x160 pixels OLED display, while on the inside there is a QVGA unit. Other features include microSD slot, Stereo Bluetooth and 2-megapixel camera.

Do you ...?




Compare

Design

  • Dimensions:
    • 3.54 x 1.91 x 0.64 inches (90 x 48.6 x 16.4 mm)
  • Weight:
    • 3.08 oz (88 g)
      the average is 5.3 oz (150 g)
  • Features:
    • Numeric keypad, Music control keys, Soft keys

Display

  • Physical size:
    • 2.0 inches
  • Resolution:
    • 240 x 320 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 200 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • TFT
  • Screen-to-body ratio:
    • 28.40 %
  • Additional display:

    Additional display - Shows specs of the phone's additional display

      • OLED
    • Resolution:

      Resolution - Refers to the width and the length od the additional display

      • 128 x 160 pixels
    • Colors:

      Colors - Shows the number of colors that the additional display supports

      • 65 536

Camera

  • Camera:
      • 2 megapixels
    • Software Features:
      • Digital zoom
  • Camcorder:
      • Yes

Hardware

  • Built-in storage:
    • 0.025 GB
  • Storage expansion:
    • microSD

Battery

  • Capacity:
    • 770 mAh
  • User replaceable:
    • Yes
  • Talk time:
    • 7.16 hours
      the average is 14 h (846 min)
  • Stand-by time:
    • 14.6 days (350 hours)
      the average is 16 days (396 h)

Cellular

  • GSM:
    • 850, 900, 1800, 1900 MHz

Phone features

  • Notifications:
    • Service lights, Music ringtones (MP3), Vibration, Phone profiles, Speakerphone
  • Other features:
    • Voice dialing, Voice commands, Voice recording

Connectivity

  • Bluetooth:
      • 2.0
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
  • Other:
    • Computer sync
specifications continue after the ad

Availability

  • Officially announced:
    • 11 Oct 2007

Regulatory Approval

  • FCC approval:

    FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.

    • Date approved:

      Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission

      • 15 Jun 2007
      • FCC ID value:

        FCC ID value - Shows the FCC Identifying value of the particular phone

        IHDT56HU1 link
  • FCC measured SAR:

    FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).

    • Head:
      • 0.43 W/kg
    • Measured in:
      • 1900 MHz
    • Body:
      • 0.17 W/kg
    • Measured in:
      • 1900 MHz

To see the full specifications with in-depth details click here.


Despite our efforts to provide full and correct Motorola MOTO U9 specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.


If you are interested in using our specs commercially, check out our Phone specs database licensing page.
