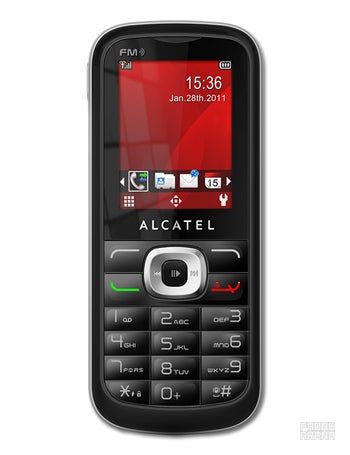

Alcatel OT-506A

Alcatel OT-506A
1.77"
128 x 160 pixels
2 MP
BATTERY: 650 mAh
MEMORY: 0.002 GB + MicroSD
Posted: Apr 26, 2011
Features: Fingerprint Lightweight Thin LTE Rugged NFC Dual SIM

Pros

  • Small dimensions (4.17 x 1.81 x 0.53 inches)

Cons

  • Lacks Wi-Fi
  • The camera lacks autofocus
  • The camera lacks flash
  • Does not support automatic screen brightness
  • Low pixel density screen (116 ppi)

Share

embed

Description

Alcatel OT-506A is a basic candybar phone with 1.77" display. It has 2MP camera, FM radio with RDS, Bluetooth, and supports up to 8GB microSD memory cards.

Do you ...?




Compare

Design

  • Device type:
    • Feature phone
  • Dimensions:
    • 4.17 x 1.81 x 0.53 inches (106 x 46 x 13.4 mm)
  • Weight:
    • 2.82 oz (80 g)
      the average is 5.3 oz (150 g)
  • Features:
    • Numeric keypad, D-Pad, Soft keys
  • Colors:
    • Black, Red

Display

  • Physical size:
    • 1.8 inches
  • Resolution:
    • 128 x 160 pixels
  • Pixel density:

    Pixel density - The pixel density of a display represents the number of pixels over an area of one inch. It’s measured in “pixels per inch”, or ppi. The higher the number, the more detailed and good-looking the display is.

    • 116 ppi
  • Technology:

    Technology - There are two main screen technologies currently used in phones and tablets: LCD and AMOLED. The former usually features a light source and liquid crystals, while the latter is based on organic light-emitting diodes. Newer LCD variations like IPS-LCD and Super-LCD allow for very accurate color reproduction and very wide viewing angles, where no significant image quality loss is observed. Current AMOLED screens differ in such a way that they can exhibit much more saturated colors (sometimes too much) and incredibly high contrast levels, which is due to black color being completely black in AMOLED displays.

    • TFT
  • Screen-to-body ratio:
    • 20.25 %

Camera

  • Camera:
      • 2 megapixels
  • Camcorder:
      • 220x176 (15 fps)

Hardware

  • System memory:

    System memory - System memory, or RAM memory is the type of memory that the device uses to temporarily store data from the OS or currently-running apps. The more RAM available to the device, the better the performance will be when multiple or heavier programs are running.

    • 0 MB ROM
  • Built-in storage:
    • 0.002 GB
  • Storage expansion:
    • microSD, microSDHC up to 8 GB

Battery

  • Capacity:
    • 650 mAh
  • Type:
    • User replaceable, Li - Ion
  • Talk time:
    • 6.00 hours
      the average is 15 h (876 min)
  • Stand-by time:
    • 16.7 days (400 hours)
      the average is 16 days (377 h)

Multimedia

  • Radio:
      • FM, RDS
  • Speakers:
    • Earpiece, Loudspeaker

Cellular

  • GSM:
    • 850, 1900 MHz

Phone features

  • Notifications:
    • Music ringtones (MP3), Polyphonic ringtones (64 voices), Vibration, Flight mode, Silent mode, Speakerphone
  • Hearing aid compatibility:
      • M3, T3
specifications continue after the ad

Connectivity

  • Bluetooth:
      • 2.1
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • USB charging

Regulatory Approval

  • FCC approval:

    FCC approval - The Federal Communications Commission (FCC) is an independent United States government agency, directly responsible to Congress. The FCC was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. Every wireless phone device that is sold in the U.S. has to be tested and approved for sale by the FCC.

    • Date approved:

      Date approved - Shows the date when the particular phone is approved by the Federal Communications Commission

      • 22 Apr 2011
      • FCC ID value:

        FCC ID value - Shows the FCC Identifying value of the particular phone

        RAD160 link
  • FCC measured SAR:

    FCC measured SAR - Working closely with federal health and safety agencies, such as the Food and Drug Administration (FDA), the FCC has adopted limits for safe exposure to radiofrequency (RF) energy. These limits are given in terms of a unit referred to as the Specific Absorption Rate (SAR), which is a measure of the amount of radio frequency energy absorbed by the body when using a mobile phone. The FCC requires cell phone manufacturers to ensure that their phones comply with these objective limits for safe exposure. Any cell phone at or below these SAR levels (that is, any phone legally sold in the U.S.) is a "safe" phone, as measured by these standards. The FCC limit for public exposure from cellular telephones is an SAR level of 1.6 watts per kilogram (1.6 W/kg).

    • Head:
      • 1.02 W/kg
    • Measured in:
      • 1900 MHz
    • Body:
      • 0.99 W/kg
    • Measured in:
      • 850 MHz

To see the full specifications with in-depth details click here.


Despite our efforts to provide full and correct Alcatel OT-506A specifications, there is always a possibility of making a mistake. If you see any wrong or incomplete data, please LET US KNOW.


If you are interested in using our specs commercially, check out our Phone specs database licensing page.
